Delta Electronics AC Motor Drive VFD-EL User Manual
Page 39
Chapter 3 Keypad and Start Up|
3-2
Revision August 2008, 2ELE, V1.02

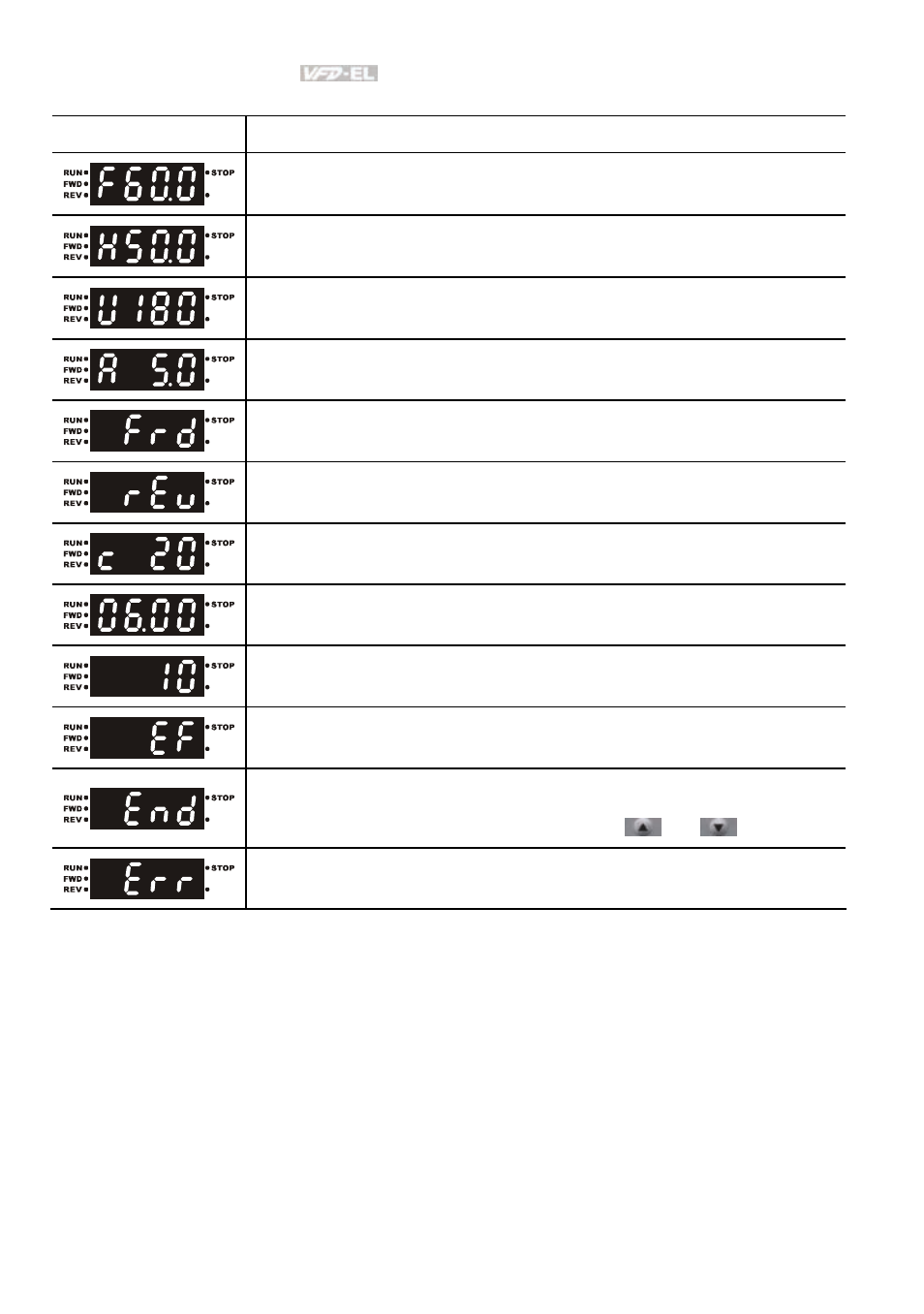

Display Message
Descriptions
Displays the AC drive Master Frequency.
Displays the actual output frequency at terminals U/T1, V/T2, and W/T3.
User defined unit (where U = F x Pr.00.05)
Displays the output current at terminals U/T1, V/T2, and W/T3.
Displays the AC motor drive forward run status.
Displays the AC motor drive reverse run status.
The counter value (C).
Displays the selected parameter.
Displays the actual stored value of the selected parameter.
External Fault.
Display “End” for approximately 1 second if input has been accepted.
After a parameter value has been set, the new value is automatically
stored in memory. To modify an entry, use the
and
keys.
Display “Err”, if the input is invalid.
