B.8.4 CME-COP01 (CANopen)
CME-COP01 CANopen communication module is specifically for connecting to CANopen
communication module of Delta VFD-EL AC motor drive.

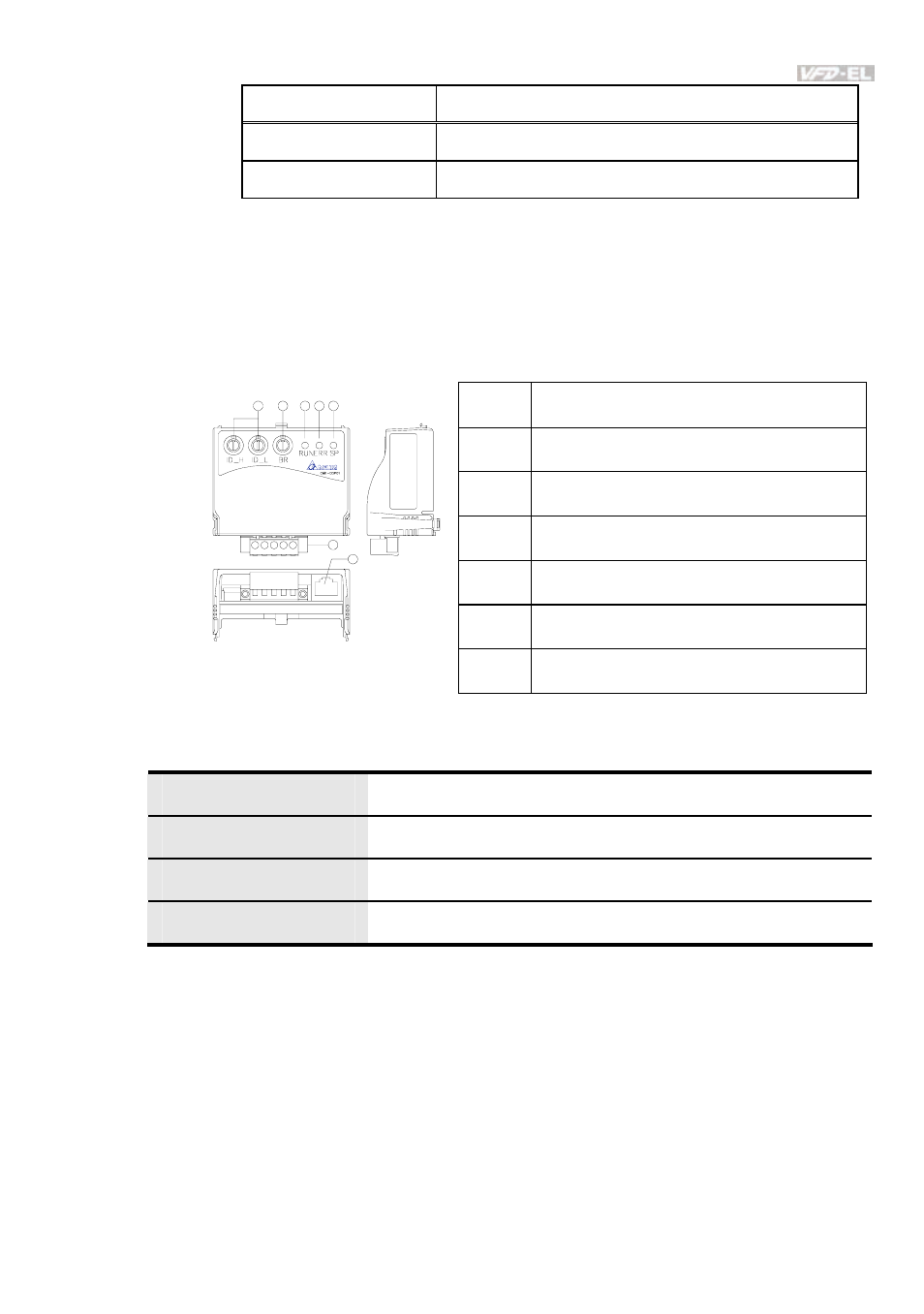

B.8.4.1 Product Profile
c
COM port
d
CANopen connection port
e
RUN indicator
f
ERROR indicator
g
SP (Scan Port) indicator
h
Baud rate switch
1
2
7
6
3
4
5
Unit: mm
i
Address switch
B.8.4.2 Specifications
CANopen Connection
Interface
Pluggable connector (5.08mm)
Transmission method
CAN
Transmission cable
2-wire twisted shielded cable
Electrical isolation
500V DC
