B.1.1 dimensions and weights for brake resistors – Delta Electronics AC Motor Drive VFD-EL User Manual
Page 179
Appendix B Accessories|
B-4
Revision August 2008, 2ELE, V1.02

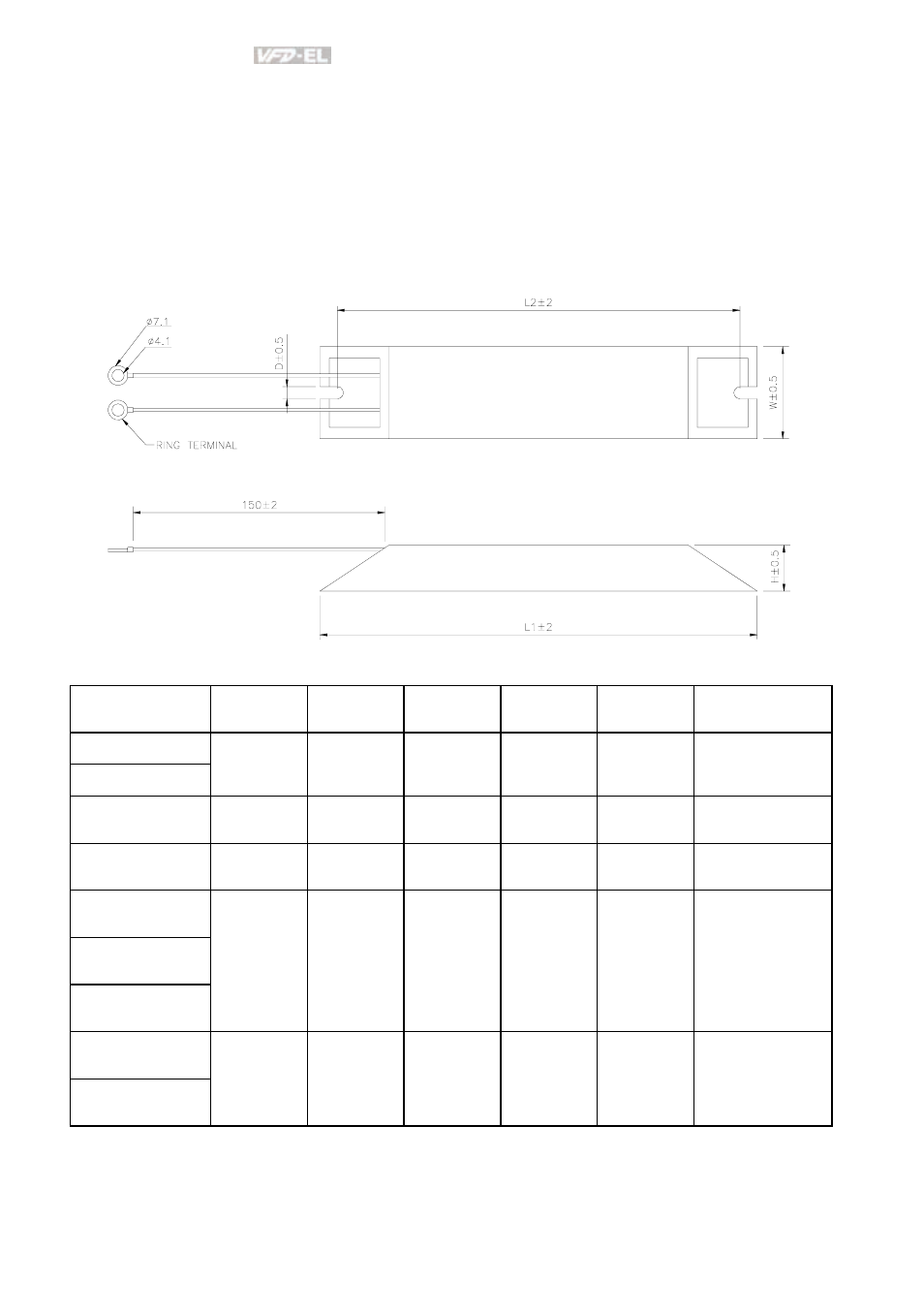

B.1.1 Dimensions and Weights for Brake Resistors
(Dimensions are in millimeter)
Order P/N: BR080W200, BR080W750, BR300W100, BR300W250, BR300W400, BR400W150,
BR400W040
Model no.
L1
L2
H
D
W
Max. Weight (g)
BR080W200
BR080W750
140 125 20 5.3 60
160
BR200W150 165 150 40
5.3
BR200W250 165 150 40
5.3
BR300W100
BR300W250
BR300W400
215 200 30 5.3 60
750
BR400W150
BR400W040
265 250 30 5.3 60
930
