Chapter 2 Installation and Wiring|
Revision August 2008, 2ELE, V1.02 2-11

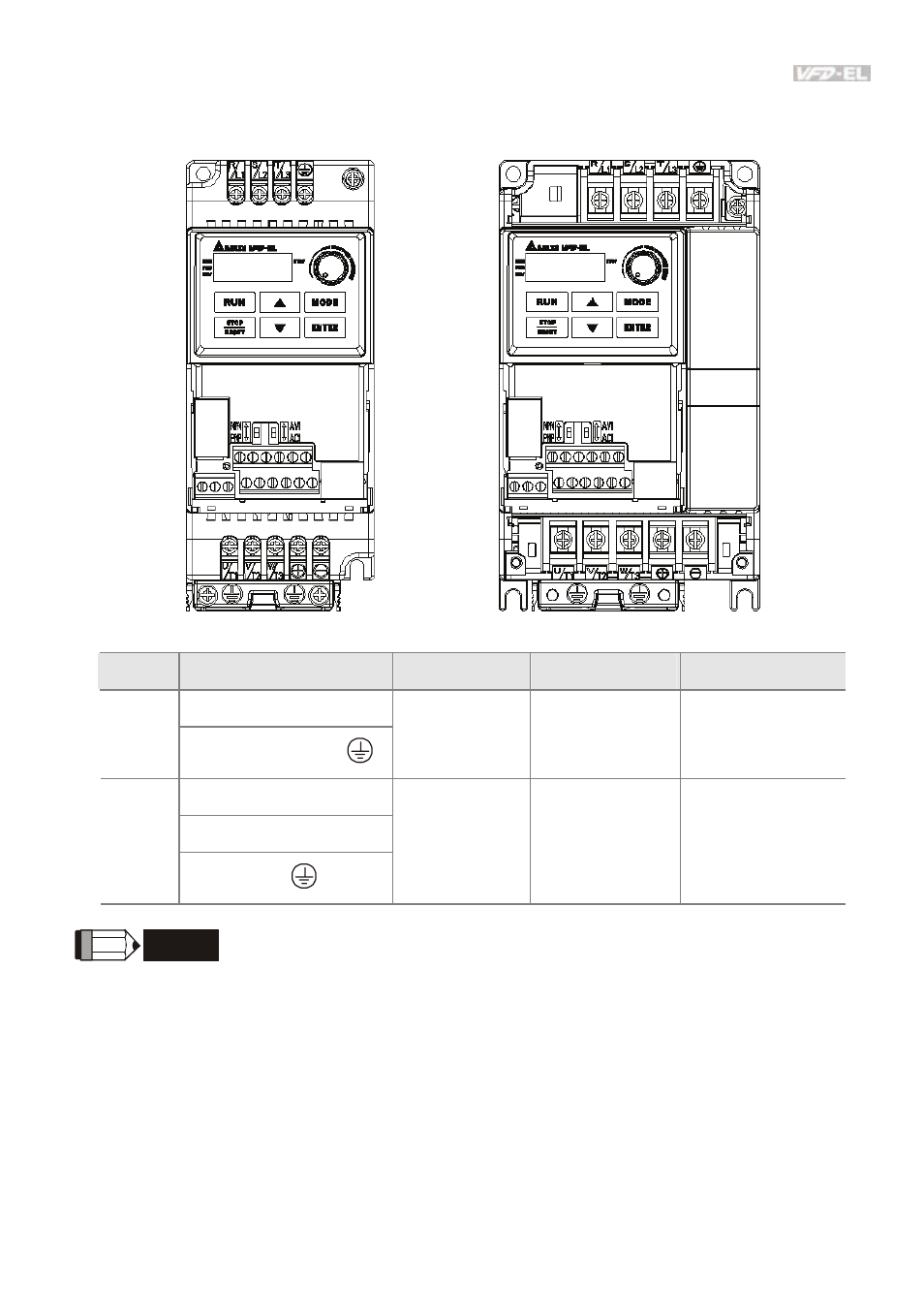

2.3.2 Main Circuit Terminals
Frame A Frame B
Frame Power Terminals Torque Wire Wire type
R/L1, S/L2, T/L3
A
U/T1, V/T2, W/T3,
14.2-16.3kgf-cm
(12-14in-lbf)
12-18 AWG.
(3.3-0.8mm 2 )
Copper only, 75
o
C
R/L1, S/L2, T/L3
U/T1, V/T2, W/T3
B
+, -,
16.3-19.3kgf-cm
(14-17in-lbf)
8-18 AWG. (8.4-
0.8mm 2 )
Copper only, 75 o C
NOTE
Frame A: VFD002EL11A/21A/23A, VFD004EL11A/21A/23A/43A, VFD007EL21A/23A/43A,
VFD015EL23A/43A
Frame B: VFD007EL11A, VFD015EL21A, VFD022EL21A/23A/43A, VFD037EL23A/43A
