Chapter 1 Introduction|
Revision August 2008, 2ELE, V1.02 1-9

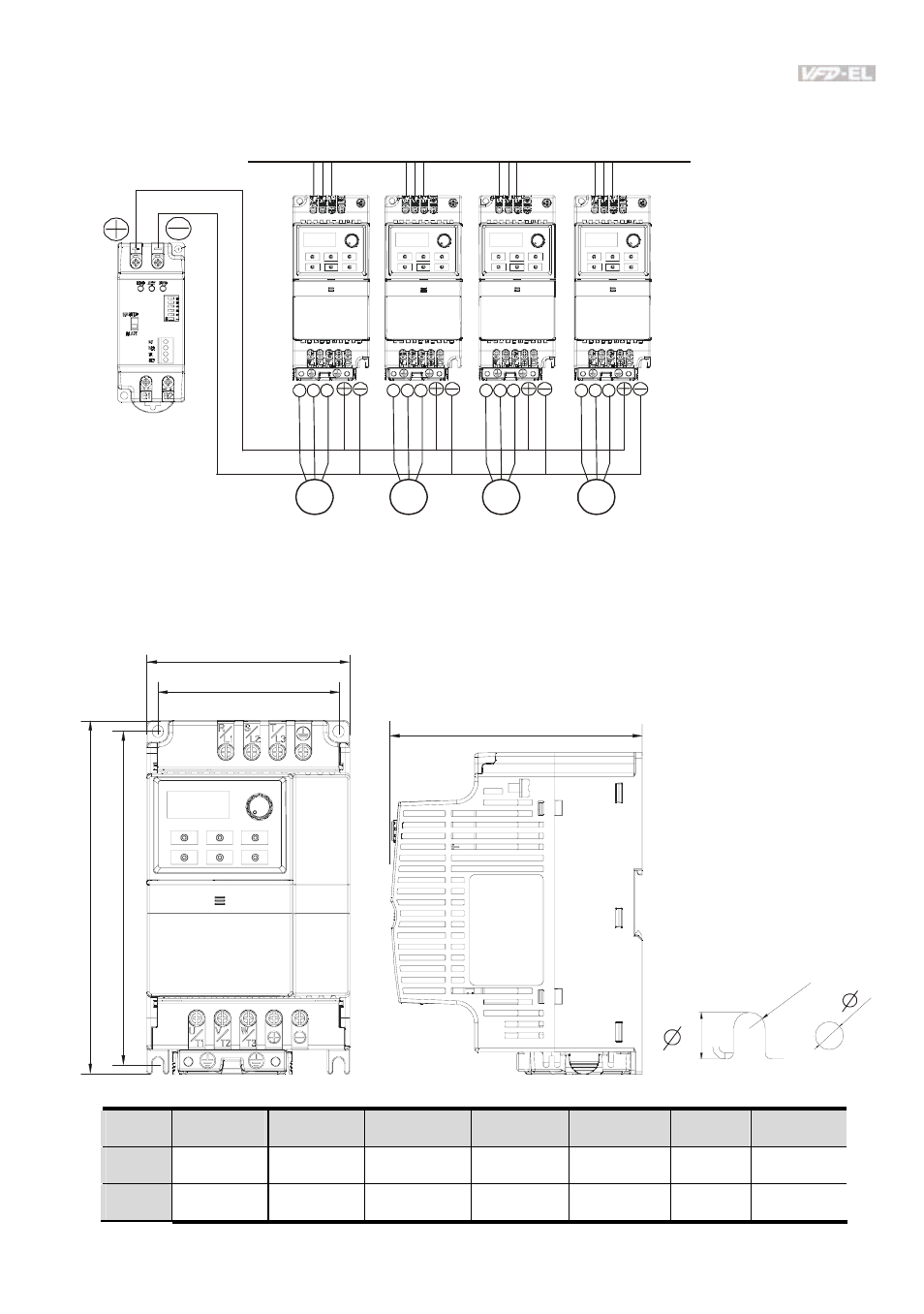

Power 208/220/230/380/440/480 (depend on models)
power should be applied at the same time
(only the same power system can be connected in parallel)
For frame A and B, terminal + (-) is connected to the terminal + (-) of the braking module.
U V W U V W U V W U V W
IM IM IM IM
Braking
modules
1.3 Dimensions
(Dimensions are in millimeter and [inch])
D
D
W
H H1
W1
Frame W W1 H H1 D Ø ØD
A 72.0[2.83] 59.0[2.32] 174.0[6.86] 151.6[5.97] 136.0[5.36] 5.4[0.21] 2.7[0.11]
B 100.0[3.94] 89.0[3.50] 174.0[6.86] 162.9[6.42] 136.0[5.36] 5.4[0.21] 2.7[0.11]
