10.17 Minimum PID Output Frequency Selection
Factory Setting: 0
Settings 0 By PID control
1 By Minimum output frequency (Pr.01.05)
This is the source selection of minimum output frequency when control is by PID.
10.18 PID Control Detection Signal Reference Unit: 0.1
Settings 1.0 to 99.9 Factory Setting: 99.9

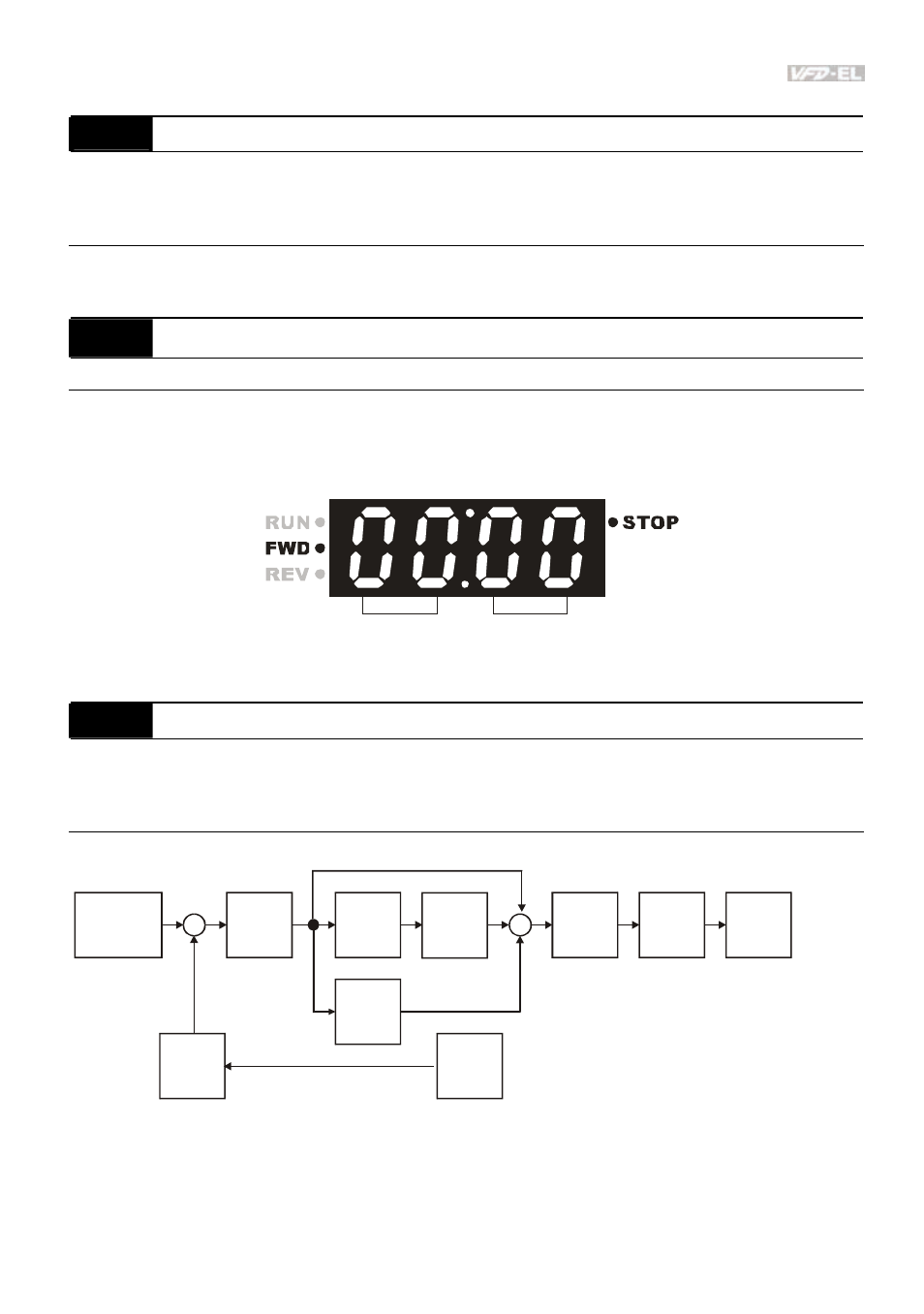

When Pr.00.04 is set to 8, it will display 00:00 as follows.
This parameter is used only for display and has no relation with Pr.00.13, Pr.00.14, Pr.02.18
and Pr.02.19.
( the max. valu e yo u would
like to conve rt)
S etp oint Fe edback value
10.19 PID Calculation Mode Selection
Factory Setting: 0
Settings 0 Series mode
1 Parallel mode
Series mode
P
10.02
I
10.03
D
10.04
10.05
10.10
10.07
10.06
10.01
+
-
+
+
+
Setpoint
Input Freq.
Gain PID
feedback
Integral
gain
limit Output
Freq.
Limit
Digital
filter
Freq.
Command
Parallel mode
