Chapter 1 Introduction|
1-2 Revision August 2008, 2ELE, V1.02
1.1 Receiving and Inspection
This VFD-EL AC motor drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC motor drive, please check for the following:
„ Check to make sure that the package includes an AC motor drive, the User Manual/Quick
Start and CD.
„ Inspect the unit to assure it was not damaged during shipment.
„ Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.

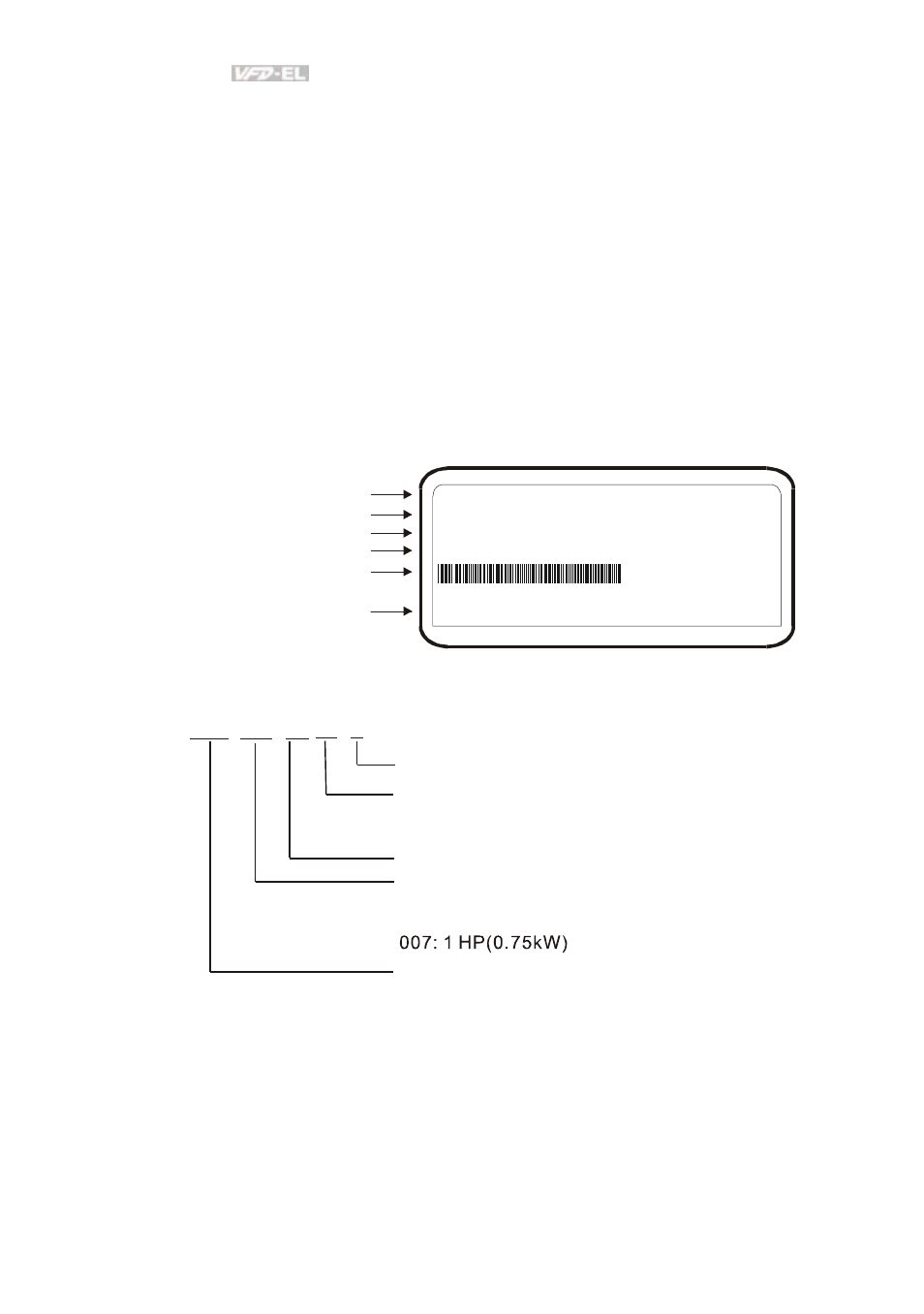

1.1.1 Nameplate Information
Example for 1HP/0.75kW 3-phase 230V AC motor drive
MODEL VFD007EL23A :
INPUT :3PH 200-240V 50/60Hz 5.1A
OUTPUT :3PH 0-240V 4.2A 1.6kVA 0.75kW/1HP
FREQUENCY RANGE : 0.1~600Hz
Serial Number & Bar Code
AC Drive Model
Input Spec.
Output Spec.
Output Frequency Range
007EL23A0T7140001
00.92 Software Version
1.1.2 Model Explanation
VFD A
Version Type
23
Mains Input Voltage
11:115 phase V 1- 21: phase 230V 1-
23:230 phase V 3-
EL
VFD-EL Series
007
Applicable motor capacity
004: 0.5 HP(0.4kW)
015: 2 HP(1.5kW)
022: 3 HP(2.2kW)
Series Name ( ariable requency rive) V F D
43:460 phase V 3-
002: 0.25 HP(0.2kW)
037: 5 HP(3.7kW)
A: Standard drive
