Delta Electronics AC Motor Drive VFD-EL User Manual
Page 36
Chapter 2 Installation and Wiring|
Revision August 2008, 2ELE, V1.02
2-15
The specification for the control terminals

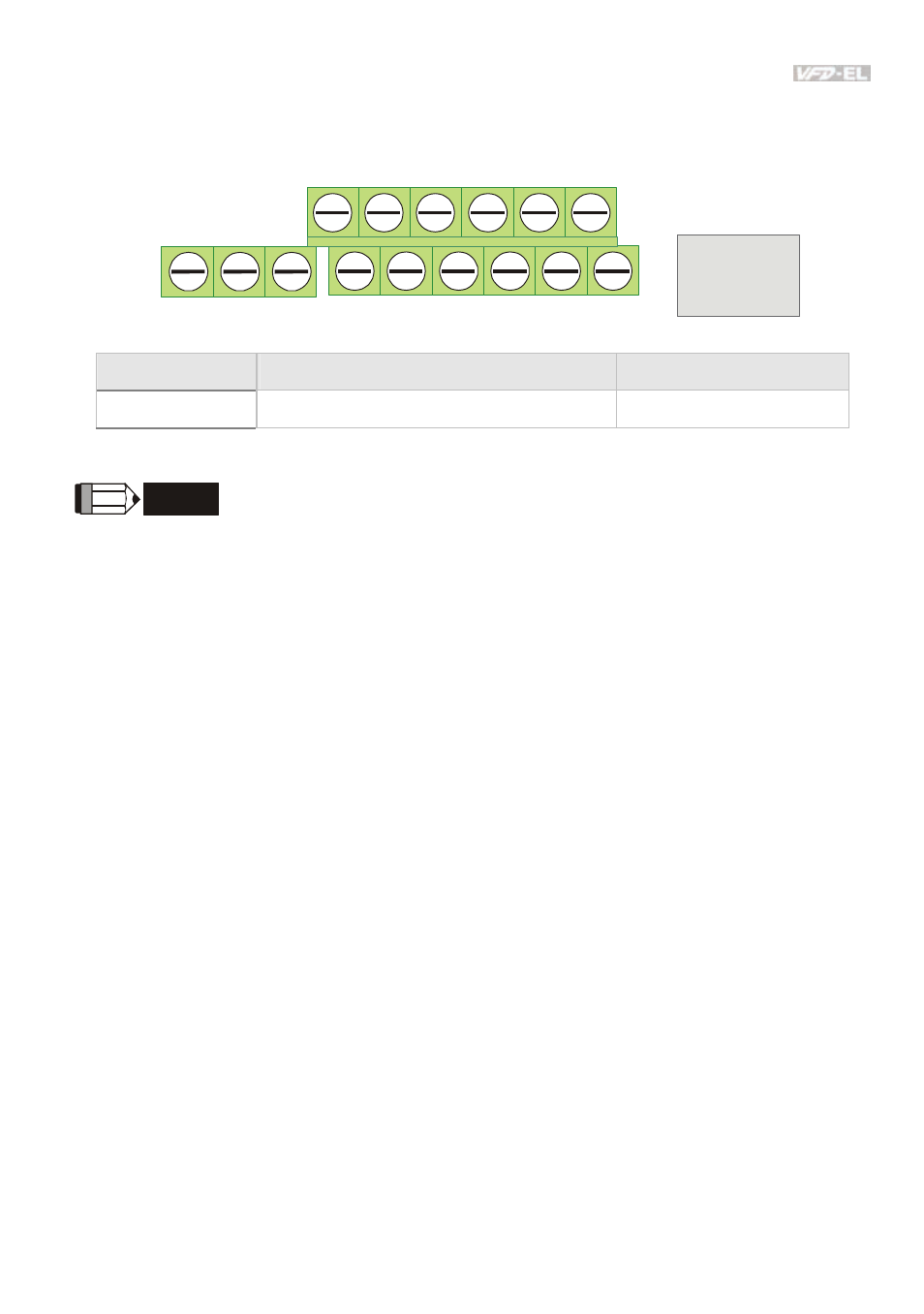

The position of the control terminals
RS-485
10V
MI1 MI3 MI5
24V
AVI
RA RB RC
MI2 MI4 MI6 DCM
ACM
AFM
Frame
Torque
Wire
A, B
5.1-8.1kgf-cm (4.4-7in-lbf)
16-24 AWG. (1.3-0.2mm
2
)
NOTE
Frame A: VFD002EL11A/21A/23A, VFD004EL11A/21A/23A/43A, VFD007EL21A/23A/43A,
VFD015EL23A/43A
Frame B: VFD007EL11A, VFD015EL21A, VFD022EL21A/23A/43A, VFD037EL23A/43A
