Repair Parts
PARTS LIST FOR CRAFTSMAN 10" ELECTRONIC RADIAL SAW
MODEL NOS. 113.197411,113.197511 AND 113.197611
Always order by Part Number - Not by Key Number
(Q

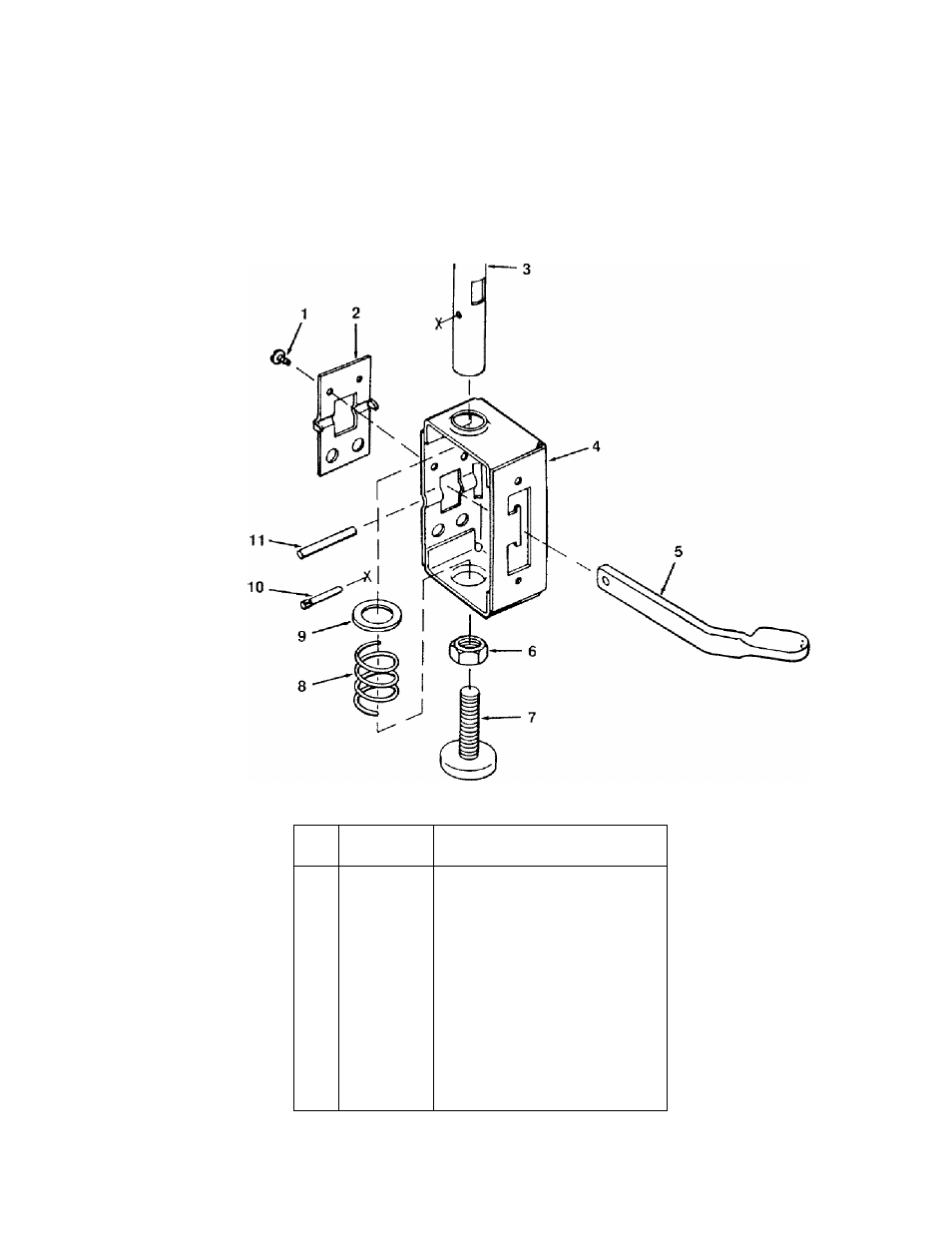

FIGURE 7 - FOOT ASSEMBLY - MODEL 113.197511 & 113.197611
Key
No
Part
No.
Description
1
STD601103
* Screw, Pan Rec. Hd
Type “r 10-32 X 3/8
2
815874
Retainer, Pin
3
817116
Rod Assembly. Foot
4
815879
Support
5
815871
Actuator, Fool
6
STD541237
* Nut, Hex Jam 3.-8-16
7
803835^1
Foot, Leveling
8
815878
Spring
9
815875
Washer
10
803927-3
Pin, Groove
11
808503-1
Pin
Standard Hardware Item may be Purchased Locally-
