Digital Display

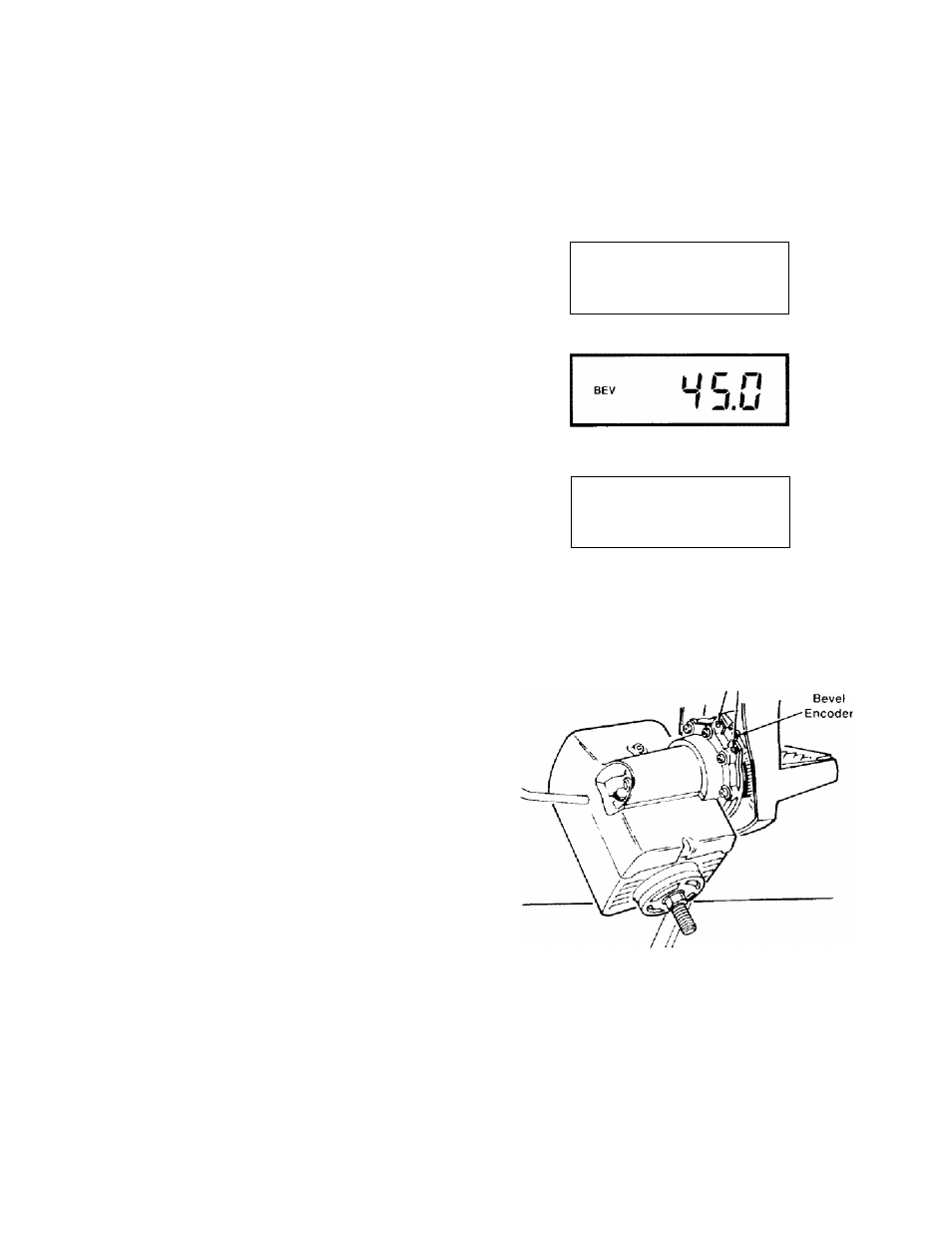

Bevel Encoder
1. Turn display on.
2. Lock radial arm at (T miter. Lock
motor at
0
° bevel.
3. Pnsh BEVEL button.
4. Push REF SET button. Di.splay will
read:
5. Support motor, unlock bevel lock,
move motor counterclockwise until it
snaps into pre-set indexed position and
lock bevel lock. Display should read:
6
. Support motor, unlock bevel lock,
move motor counterclockwise until it
snaps into next pre-set indexed position
(blade horizontal) and lock bevel lock.
Di.splay should read:
7. If display reads as it should, bevel en­
coder is aligned correctly--no adjustment
is needed.
8
. If display does not read as it should:
i) unlock bevel lock, move motor clock­
wise until it snaps into pre-set indexed
position, and lock bevel lock
ii) loosen bevel encoder screws on
backside of blade carriage to allow
encoder to slide side to side
iii) slide or slightly tap encoder until
display reads 45°
iv) tighten bevel encoder screws,
9. Repeat steps to align bevel encoder.
Set Zero Reference Points For
Bevel, Miter, and Elevation
1. Set blade in straight crosscut position
(
0
° miter) (0° bevel). Lower blade until it
just touches table. Note:
This is the usual
blade position for setting these zero refer­
ence points.
n
BEV
.U
n n n
BEV 1
u.lj
Bevel
Encoder
Screws
