Assembly

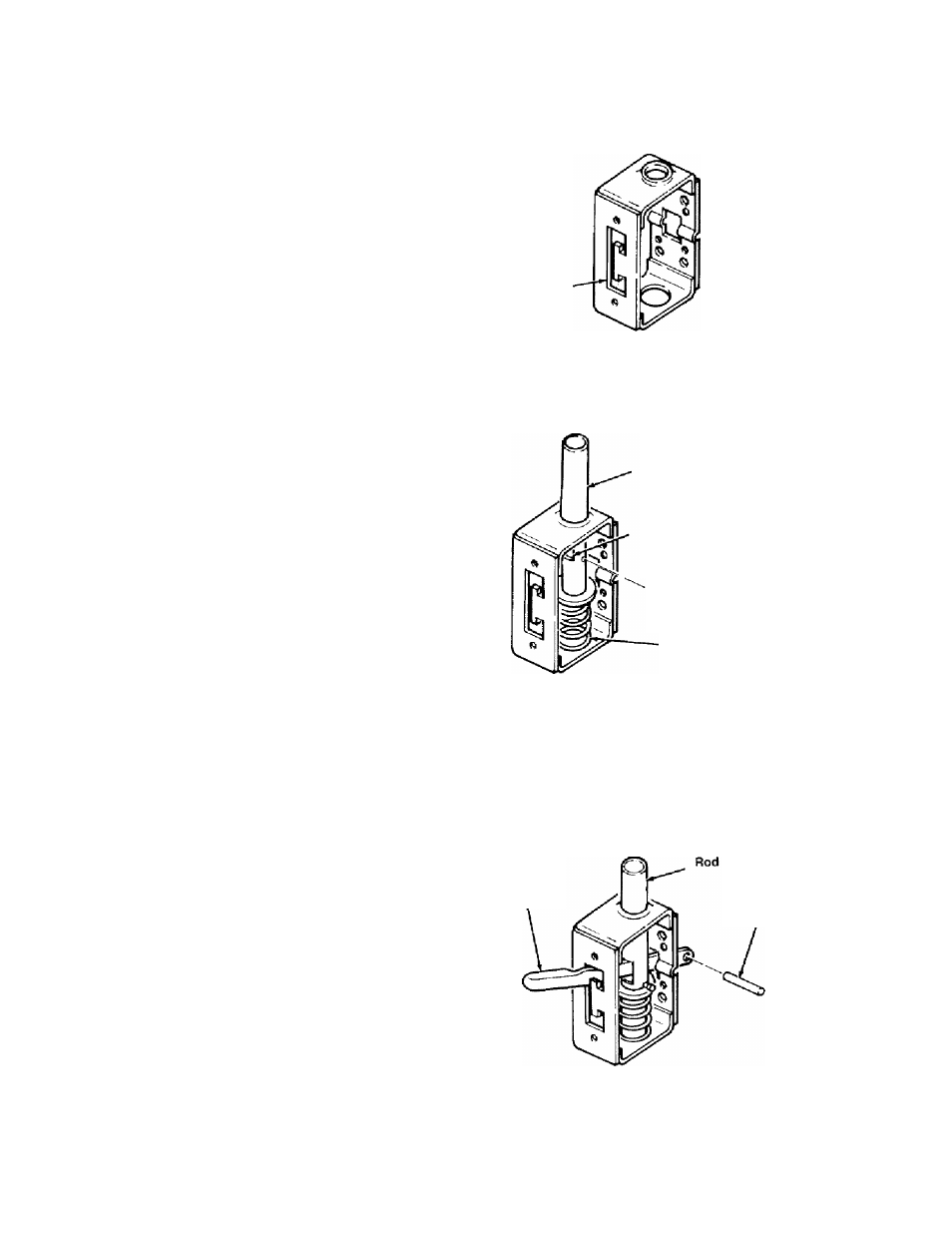

2. Place one foot box so C-shaped open
ing faces you and closed side is on your
left.
C-Shaped
Slot
3. With threaded end of foot rod facing
down, and smaller square opening facing
you, put rod through top opening of foot
box, and slide half way down into box.
4. Put grooved pin through hole in foot
rod so grooved end faces out.
5. On end of foot rod put washer then
spring. Push rod all the way down
through spring.
Rod
Smaller Square
Opening
Grooved Pin
Washer And
Spring
6. With lever pointing towards left, put
foot lever through upper opening of "C",
through rod, and out other end of foot
box. Apply a few drops of SAE lOW-30
motor oil to area where lever and rod
meet.
7. Put smooth pin through hole at end of
foot lever.
Lever Points
Towrard Left
Smooth Pin
