Assembly
Finish Cabinet (Only Door Models;
Drawer Model; Go to "Complete Cen­
ter Slide Assembly")
1. Set out;
-upper support
-center support
-eight
1
/
4
" diam x
V 2 "
long truss head
screws
-eight
1
/
4
" diam lock washers
-eight
1
/
4
" diam hex nuts.

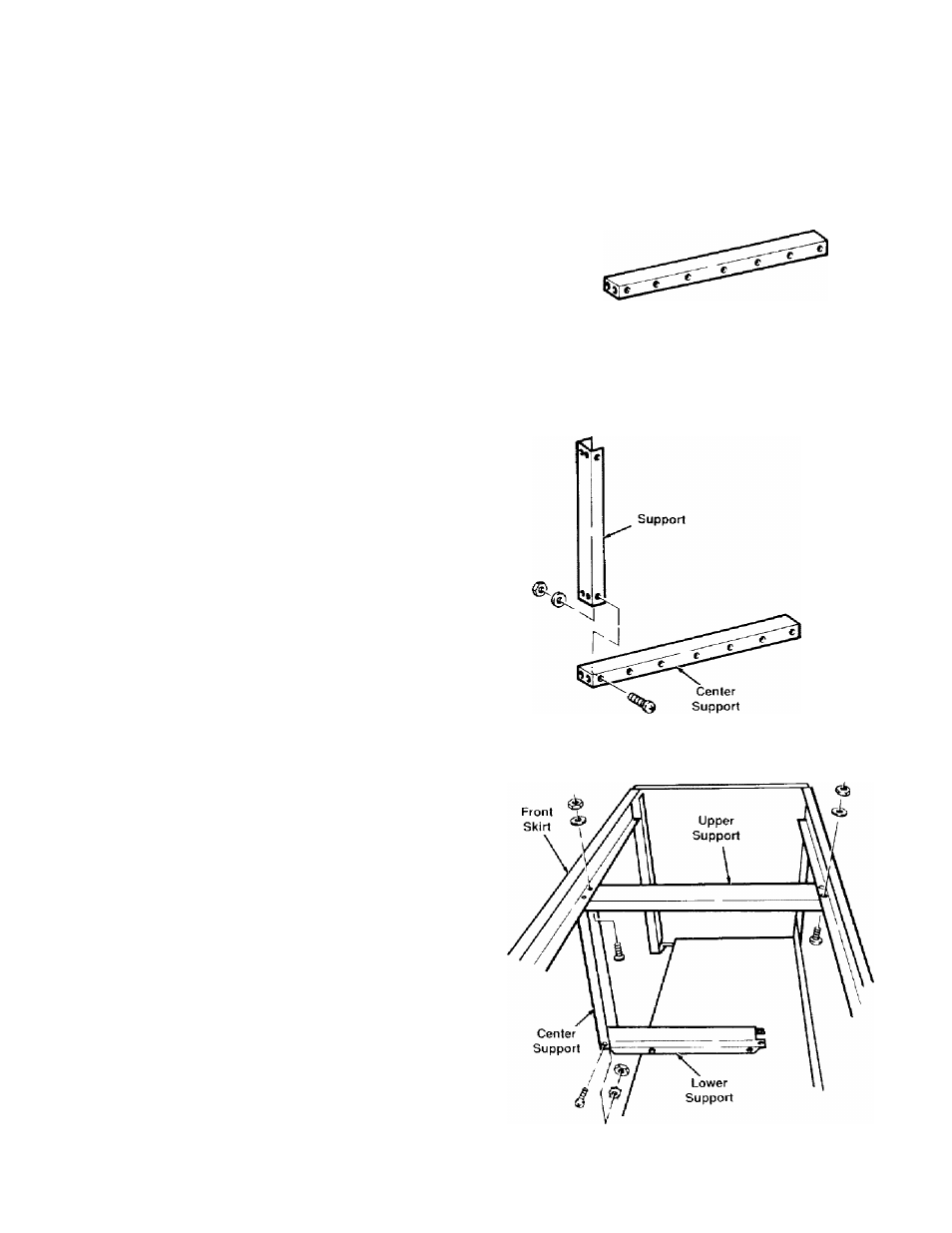

2. Rest center support on floor, solid sur­
face down. Slide upper support into cen­
ter support to form an ’’L" shaped
assembly.
3. Attach center support to upper sup­
port; use two screws
(insert screws through
long sides of center support);
on end of
each screw put washer, then nut, and
finger tighten.
4. Turn "L" shaped assembly 90° to right,
so upper support is parallel to floor and
solid surface is on top. Slide into front of
cabinet, under front and rear skirts, so
bottom of center support fits onto lower
support,
5. Attach center and upper supports to
front skirt; use two screws
(insert screws
through upper support)',
on end of each
screw put washer, then nut and wrench
tighten.
6. Attach upper support to rear skirt; use
two screws
(insert screws through upper
support)',
on end of each screw put
washer, then nut and wench tighten.
7. Attach center support to lower sup­
port; tilt cabinet back; use two screws
(in­
sert screws through sides of center support)',
on end of each screw put washer, then
nut and finger tighten.
% €
