Assembly

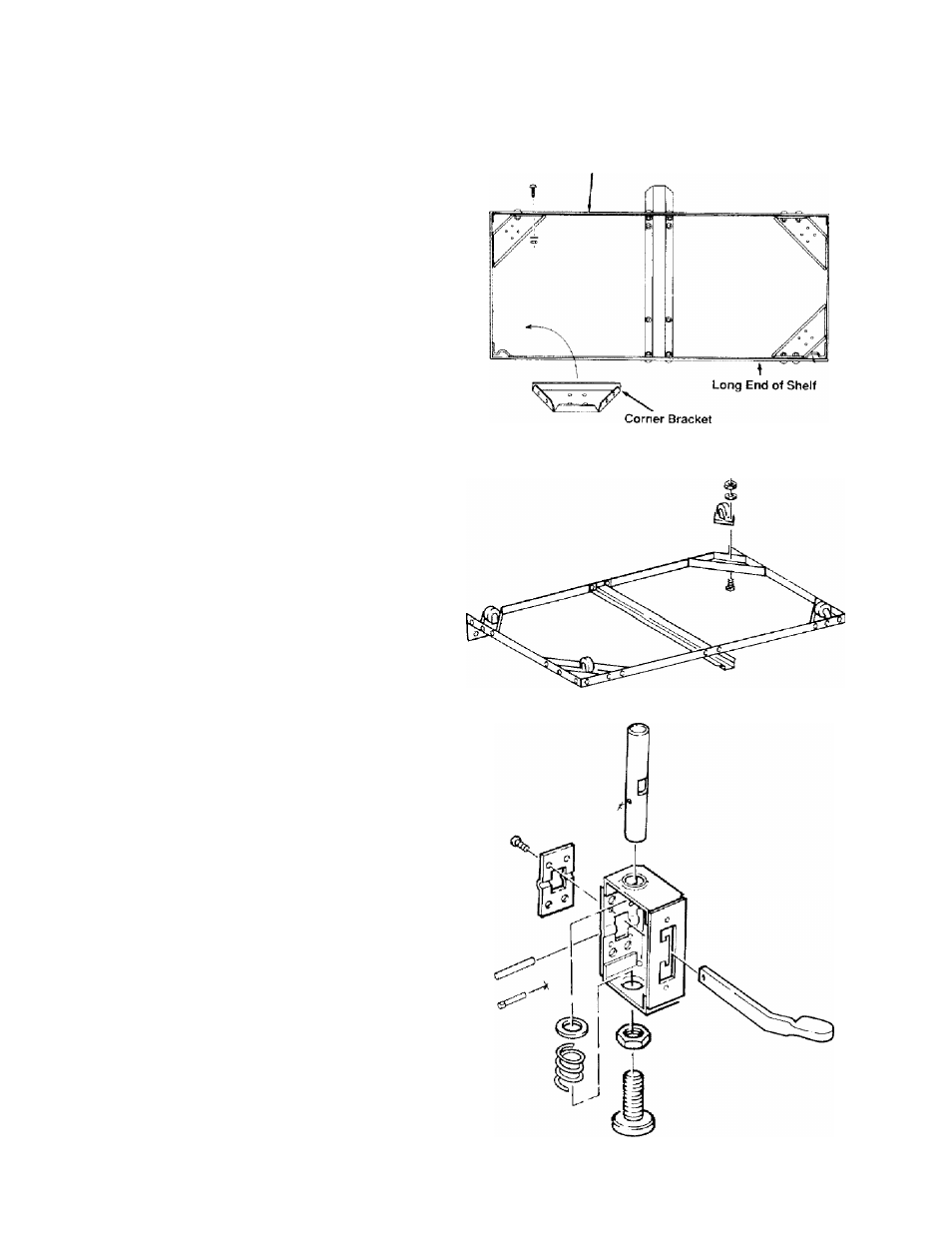

8. Put corner bracket in each corner, so
edges point up. Attach brackets to long
sides of shelf: use two screws per bracket
{insert screws through shelf)',
on end of
each screw put washer, then nut, and
wrench tighten. Note:
Screws for short
sides will be installed later.
Attach Casters (Only Models with
Casters; Door Model without Casters:
Go to “Assemble Side Panels' )
1. Set out:
-four casters
-sixteen
Vi)'
diain x
Vi"
long truss head
screws
-sixteen
Vn"
diam lock washers
-sixteen
1
/
4
“ diam hex nuts.
2. Attach one caster to each corner brack
et: use four screws per caster
{insert
screws through shelf)',
on end of each
screw put washer, then nut, and wrench
tighten.
Long End of Shelf
Build Foot Assemblies
1. Set out:
-two foot boxes
-two foot levers
-two foot rods
-two pin retainers
-two grooved pins
-two smooth pins
-two washers
-two springs
-two leveling feet
-four #10 x
345
“ long pan head screws
-two yg" diam hex nuts.
