Electrical Connections
Motor Specifications
The AC motor used in the saw is a
capacitor-start, non-reversible type. The
models covered in this manual have the
following specifications:
Rated H P. 1.5
Max Developed H.P. 2.75
Voltage 120/240
Amperes 12/6
Hertz (cycles) 60
Phase Single
RPM 3450
Arbor Shaft Rotation Clockwise
Note:
If saw does not start when switched
on, immediately turn saw off and refer to
Troubleshooting. Leaving the switch on will
destroy the motor.
Power Supply
A
WARNING
Saw is factory wired for 120V opera­
tion. Connect to 120V, 15-AMP
branch circuit and use 15-AMP time
delay fuse or circuit breaker.
Failure to connect in this way could
result in injury from shock or fire.
The saw must be properly grounded. Not
all outlets are properly grounded. If you
are not sure that your outlet is properly
grounded, have it checked by a qualified
electrician.
A
WARNING
If not properly grounded, this power
tool could cause electrical shock,
particularly when used in damp loca­
tions.
A
WARNING
If electrical shock occurs, your reac­
tion to shock could bring hands into
contact with blade.
A
WARNING
To avoid electric shock or tire, im­
mediately replace worn, cut, or
damaged power cord.

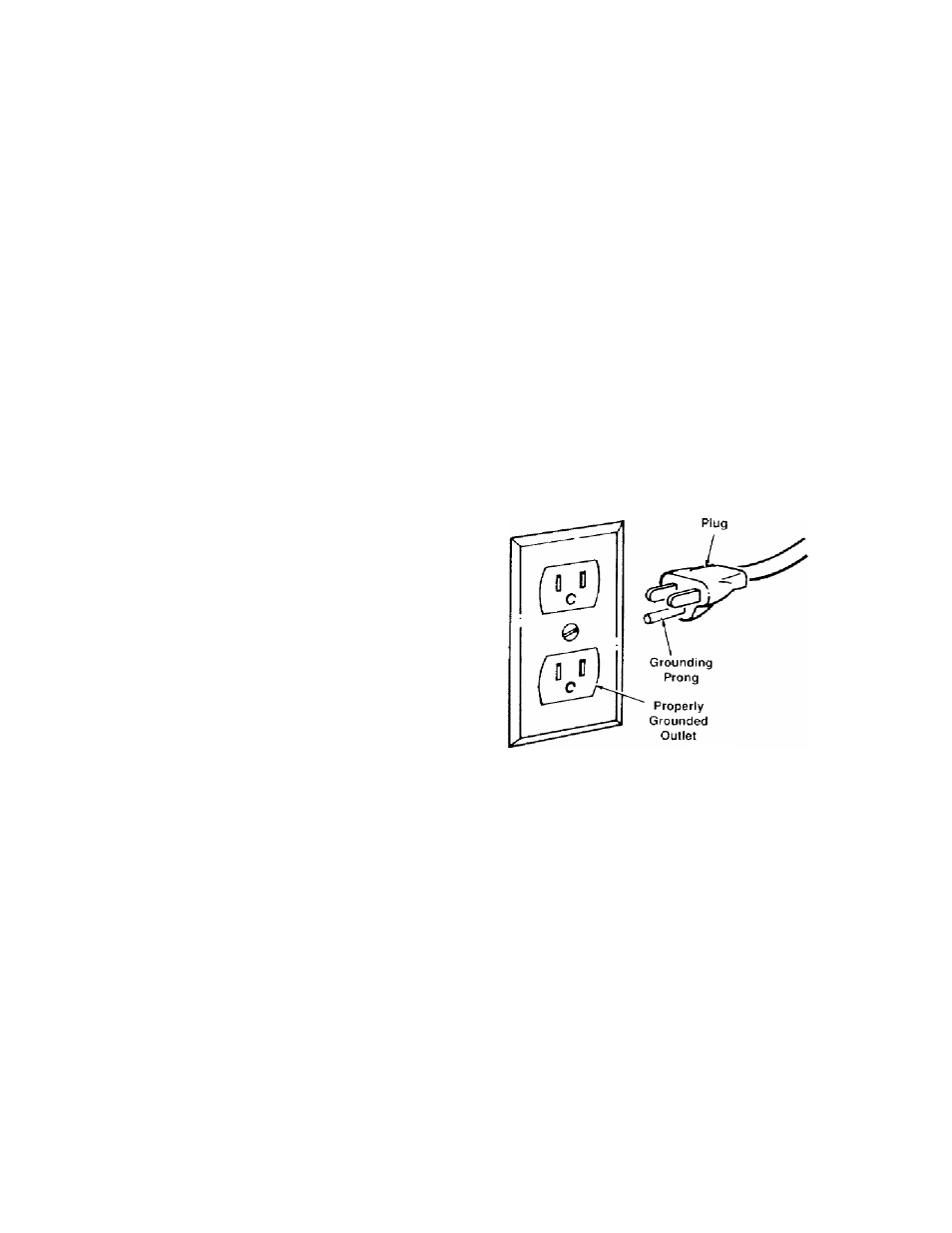

The unit is wired for 120V and has a plug
that looks like this:
3-Prong
The power tool is equipped with a 3-con­
ductor cord and grounding type plug listed
by Underwriters’ Laboratories. The
ground conductor has a green jacket and
is attached to the tool housing at one end
and to the ground prong in the attachment
plug at the other end.
The plug requires a mating 3-conductor
grounded type outlet as shown above. If
you have an outlet that is of the
2
-prong
type, it is recommended that you have a
qualified electrician replace it with a
properly grounded 3-prong outlet.
