Assembly
Assembly Steps
It is important for your safety and to get
accurate cuts that you put the saw
together according to these instructions.
Note:
This manual covers three models.
Depending on the model saw^ you will be in­
structed to skip some steps, or do extra
steps. The differences have to do with
whether the cabinet has doors or drawers,
and whether or not it has casters.
Follow these steps in order.

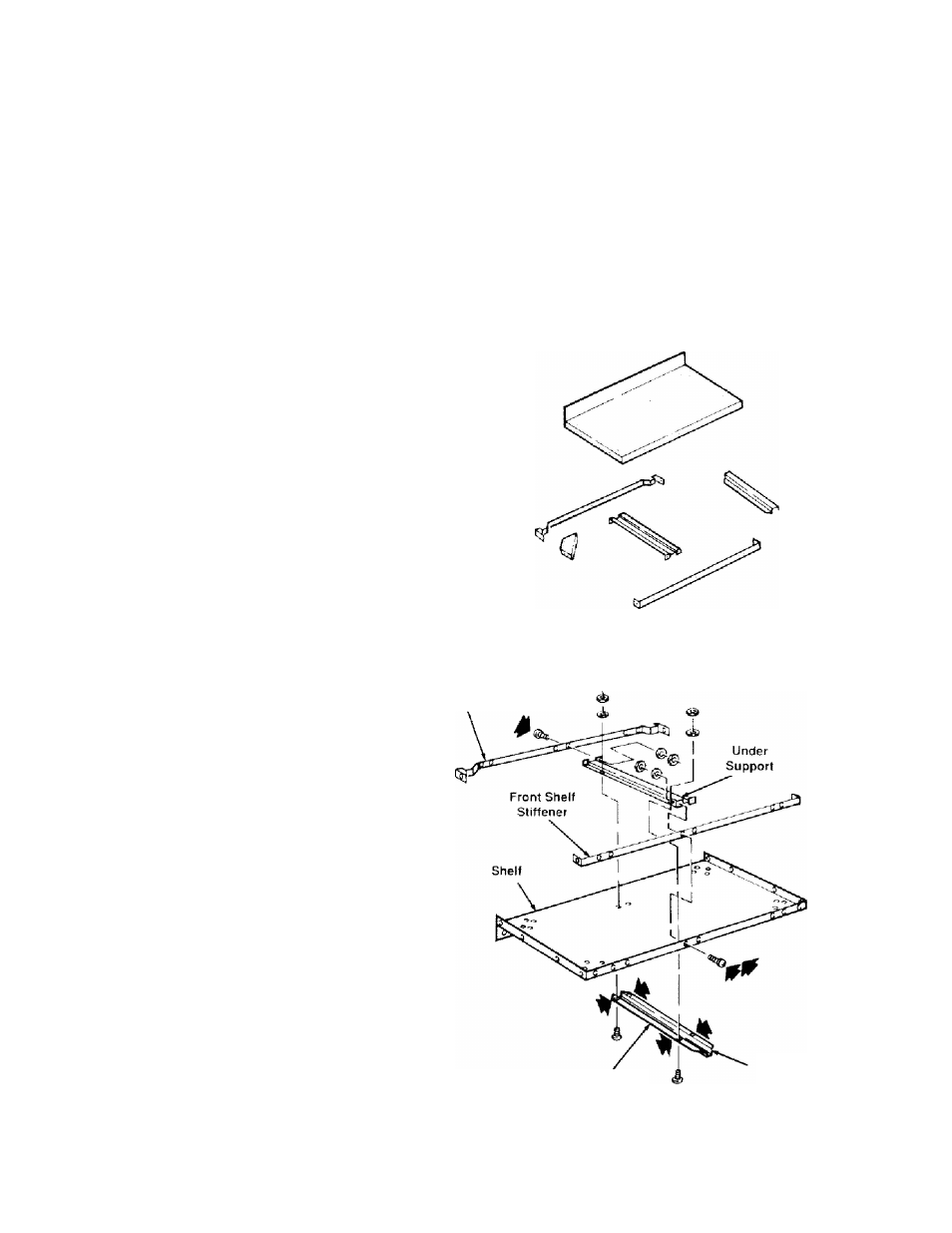

Build Cabinet Base
!. Set out;
-bottom shelf
-front shelf stiffener
-under support
-lower support
-rear shelf stiffener
-four corner brackets
-sixteen
vT diam x VT long truss head
.screws
-sixteen
1
/
4
" diam lock washers
-sixteen
vT
diam hex nuts.
2. Put bottom shelf upside down so long
edge of raised (rear) side points dowm.
3. Put front shelf stiffener inside and
against front edge of shelf.
4. Put under support on shelf so holes in
end of support line up with two center
holes in front shelf stiffener.
5. Put lower support under shelf so holes
line up with holes in under support. Note:
Angled end of lower support will stick out
from front of shelf.
6. Place rear shelf stiffener so two center
holes line up with holes in under support
and ends are inside shelf edges.
7. Insert screws through eight holes
shown. On end of each screw put washer,
then nut, and wrench tighten.
A
WARNING
Rear Shelf
Stiffener
Plugging in saw during assembly
can result in electrical shock, or
severe cuts from contact with spin­
ning blade.
Do not plug in saw at anytime during
assembly.
Plug in saw only when it is to be
used.
Lower Support
Angled End Of
Lower Support
14
