Electrical Connections
A
WARNING
To maintain proper tool grounding,
whenever outlet you are planning to
use for this power tool is of 2-prong
type do not remove or alter ground­
ing prong in any manner.

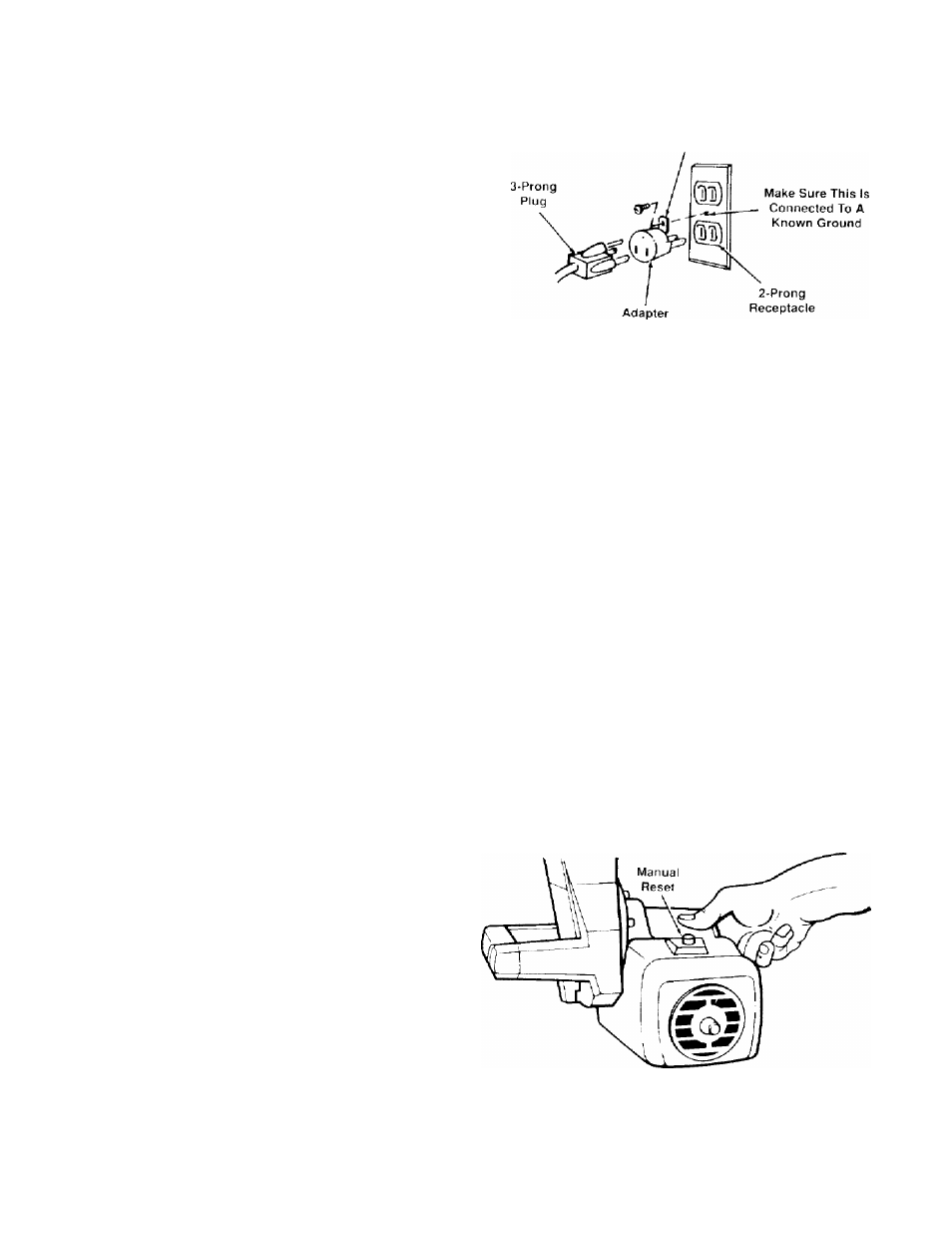

An adapter is available for connecting the
plug to 2-prong receptables. The green
grounding lead extending from the adapt­
er must be connected to a permanent
ground such as to a properly grounded
outlet box.
Extension Cords
The use of any extension cord will cause
some loss of power. Determine the mini­
mum wire size (American Wire Gage No.
(AWG#)) extension cord. Use only 3-
wire extension cords with 3-prong ground­
ing type plug and 3-pole receptacles which
accept the tool’s plug.
Motor Protection & Reset Button
The motor protector opens the power line
circuit and stops the motor when the
motor temperature exceeds a safe level,
the motor is overloaded, or a low voltage
condition exi.sts.
When the protector activates, immedi­
ately turn saw off, remove yellow key and
wait for motor to cool. Push red re-set but­
ton and listen/feel for click to indicate
protector is re-set. If you do not hear/feel
a click, motor is still too hot. Wait a while
longer and repeat.
Grounding
Lug
A
WARNING
Adapter illustrated is for use only if
you
already have a properly
grounded 2-prong receptacle.
Wire Sizes Required (AWG #)
Cord
Length
120V 240V
0-25 ft No. 14 No. 16
26-50 ft No. 12 No. 14
51-100 ft No. 10 No. 12
Note: The smaller the gauge number, the heavier
the cord. For circuits farther away from the electrical
circuit box, wire size must be increased propor­
tionately to deliver ample voltage to the motor.
