Digital Display
The digital display runs on battery power.
It tells the position of the blade and radial
arm at the touch of a button. The display
automatically turns itself off approximate­
ly three minutes after a change in blade or
arm position has been made. The system
continues to track the position of the
blade and arm even when the display is
turned off.
Button Functions
ON/OFF Turns display on and off.
REF SET Used to set "zero ' reference points.
BEVEL
Displays bevel angle. Display is
positive when motor has been
moved counterclockwise from zero
reference point; negative when
motor has been moved clockwise
from zero reference point.

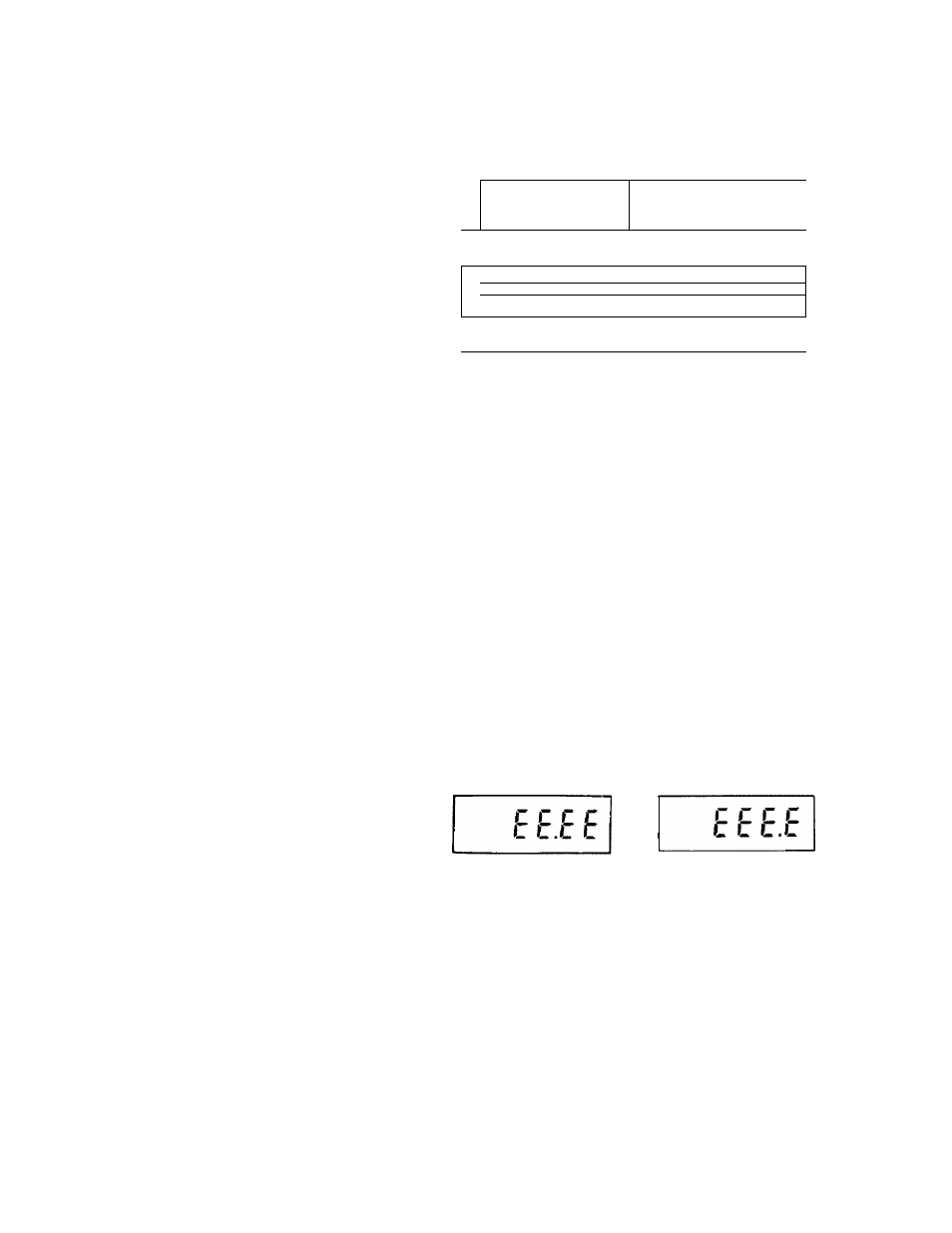

Error Messages
The zero reference points you set accord­
ing to the instructions later in this section
will be stored in memory at all times,
whether the display is on or off. If an error
occurs, you will see either of these mes­
sages displayed.
An error can be caused by sudden move­
ment of the radial arm or blade carriage
when the electronic display is off. When
this happens, reset the zero reference
point for the function showing the error.
When the display is faded or hard to read,
replace the battery and reset all the zero
reference points.
- ’ ( o n - O F f I I B E V E L j 1 M I T E R (
I b E E S E t I I E L f e V 1
ELECTRONIC MEASUREMENT
1
1 u
’ ’ C * L O C K H E M D V E V Ê L L O W K E v
ELEV
MITER
RIP
Displays distance between table
and blade. Display is positive when
blade is above zero reference
point; negative when blade is
below zero reference point.
Displays miter angle. Display is
positive when blade is to right of
zero reference point; negative
when blade is to left of zero refer­
ence point.
Displays distance between blade
and fence in in-rip or out-rip posi­
tions.
or
