Assembly
Adjust Leveling Feet
Note:
If cabinet has casters, lock foot as­
semblies and make sure front casters are
slightly off floor before adjusting leveling
feet.
1. If cabinet rocks, adjust leveling feet so
they rest on floor.
2. Rest a level on radial arm. If arm is
level or slants forward, adjust leveling
feet so arm slants slightly towards rear.
3. Only Door Model Without Casters:
wrench tighten top nut on each leveling
foot.

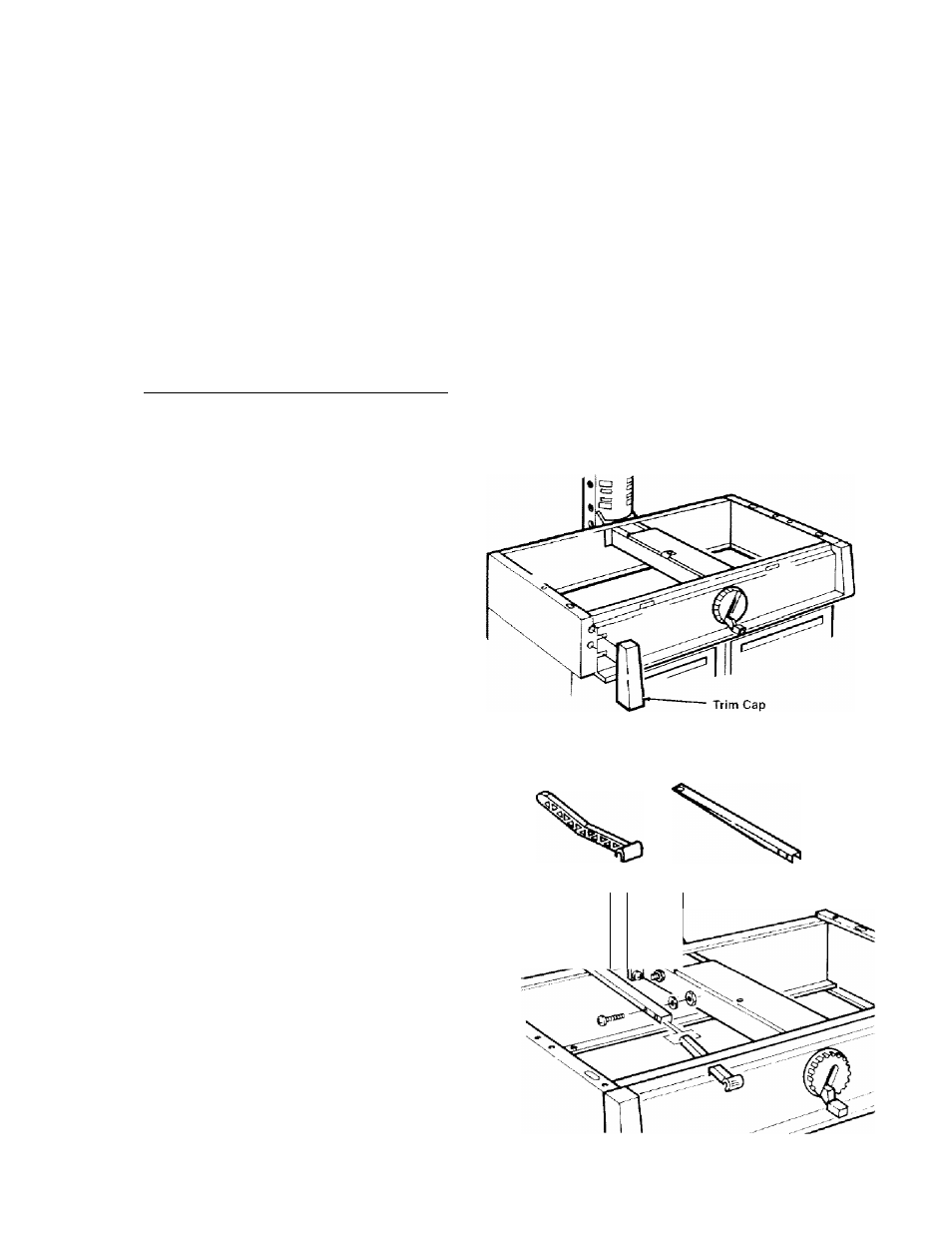

Attach Trim Caps
1. Line up plastic stubs on back of trim
caps with holes on front corners of frame
and snap into place.
A
WARNING
Saw must slant slightly towards rear
to keep blade carriage from rolling
forward. Workpiece or saw can
move unexpectedly if cabinet rocks.
Fingers, hand or arm could be cut off
by blade contact
Adjust leveling feet before using
saw.
Attach Lock Handle Channels
1. Set out;
-two lock handle channels
-two lock handles
-four
Vi'
diam x Irt" long pan head screws
-four Vi” diam lock washers
-four
Vi”
diam hex nuts.
2. Insert lock handles through openings
in front of saw.
3. Slide lock handle channel, open side
facing down, onto each lock handle and
attach: use two screws per channel
{imert
screws through lock handle channel)',
on
end of each screw put washer, then nut
and wrench tighten.
