Attach doors, Complete center slide assembly {only drawer model), Assembly – Sears 113.197611 User Manual

Page 24: Long screws per stop plate, Screws per door. 5. go to "attach handwheel, Diam x tb" long truss head screws -sixteen, Diam lock washers -sixteen, Diam hex nuts

Text mode
Original mode

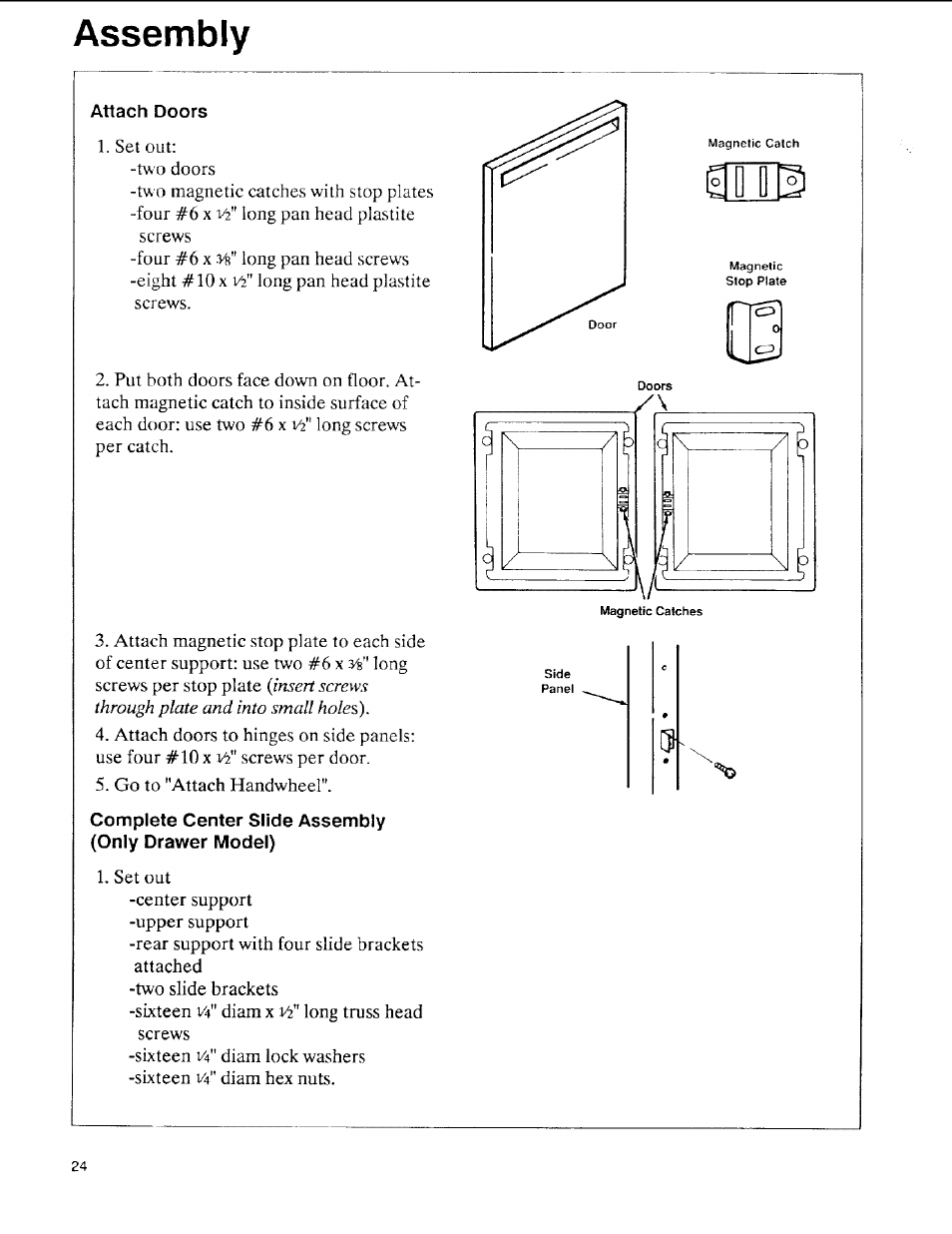

Attach doors, Complete center slide assembly {only drawer model), Assembly | Long screws per stop plate, Screws per door. 5. go to "attach handwheel, Diam x tb" long truss head screws -sixteen, Diam lock washers -sixteen, Diam hex nuts | Sears 113.197611 User Manual | Page 24 / 104
