Chapter 7 Building the Second Row Table Assembly
Parts List

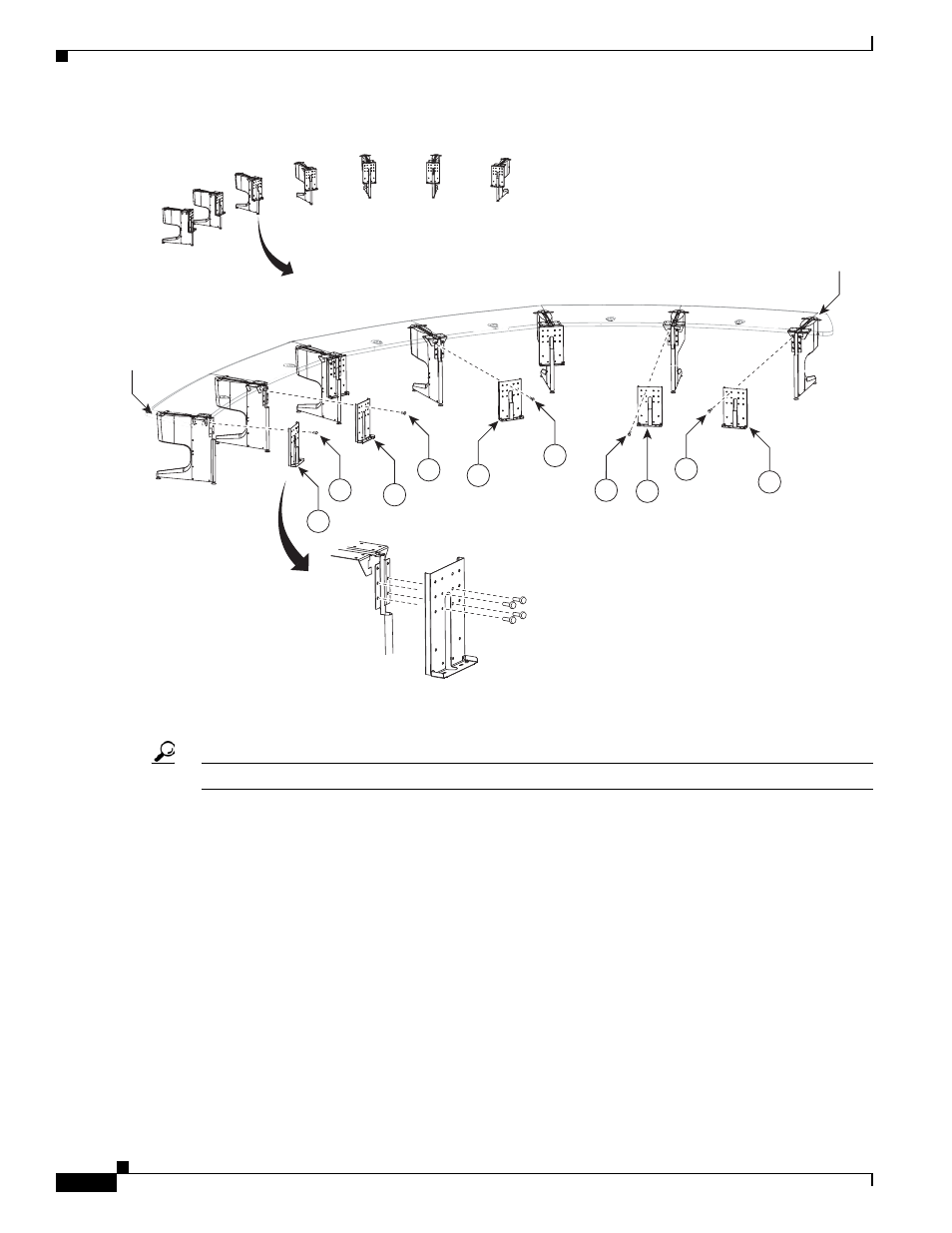

Figure 7-4 Gutter and Privacy Panel Support Brackets, Type 2
Step 5 While one or more assistants keep the table legs steady, attach the section 1 (section 5) gutter panel to
the section 1 (section 5) table legs.
Tip When you attach the support brackets, it can be helpful to turn the table leg upside-down.
