Cisco 3200 User Manual
Page 110
7-22
Cisco TelePresence System 3200
OL-14521-01
Chapter 7 Building the Second Row Table Assembly
Parts List

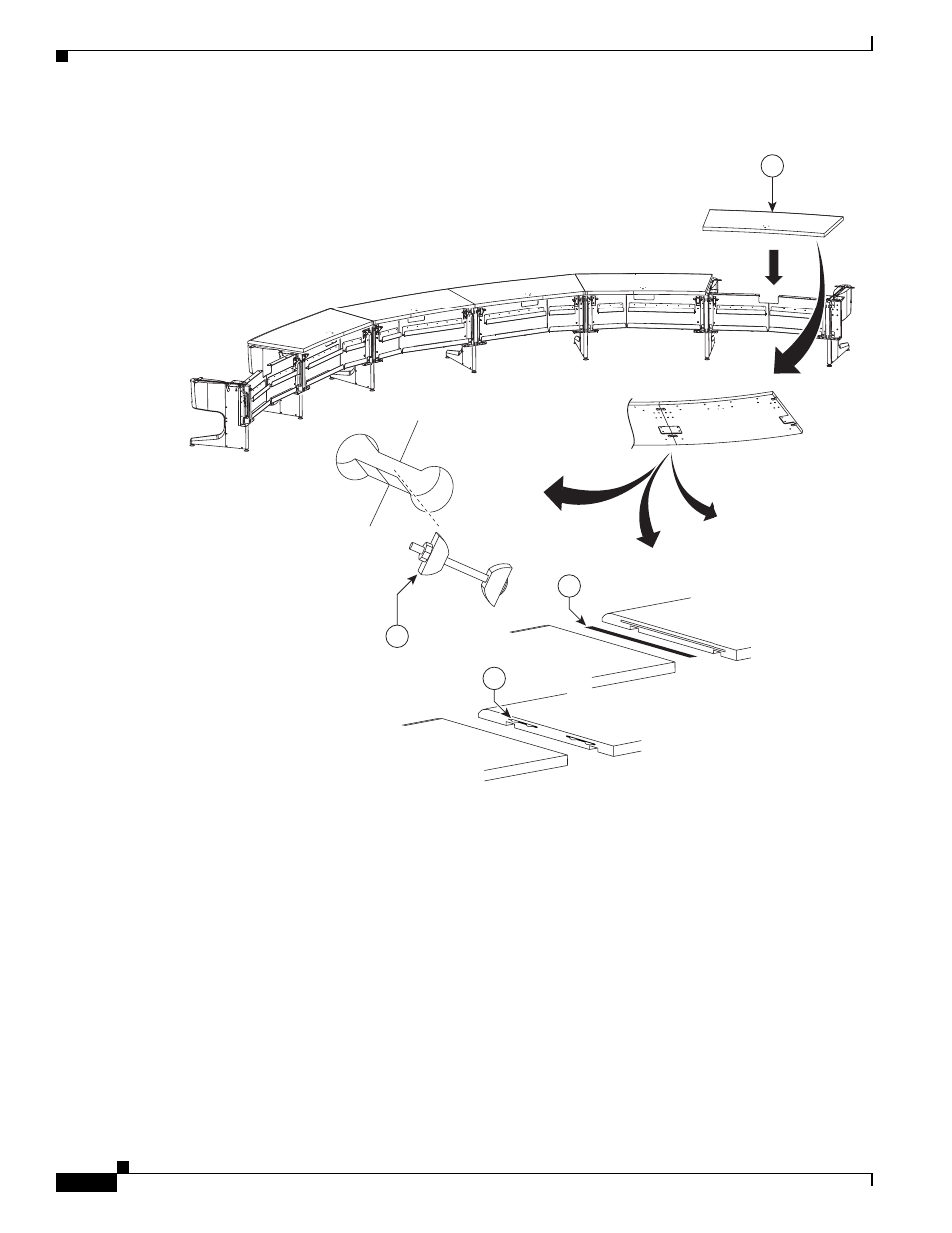

Figure 7-20
Tabletop, Section 5 Left (Section 7)
Step 21
Place the right tabletop section 5 (section 2) on the table assembly and join it to table section 4 (section
3) using either the spline or biscuits, then use the draw bolts to join the sections.
204114
39
40
18
57
5(7)
