Chapter 12 Field-Replaceable Unit Guide
Replacing a Plasma Display—Part Number CTS-DISP-65-GEN4=

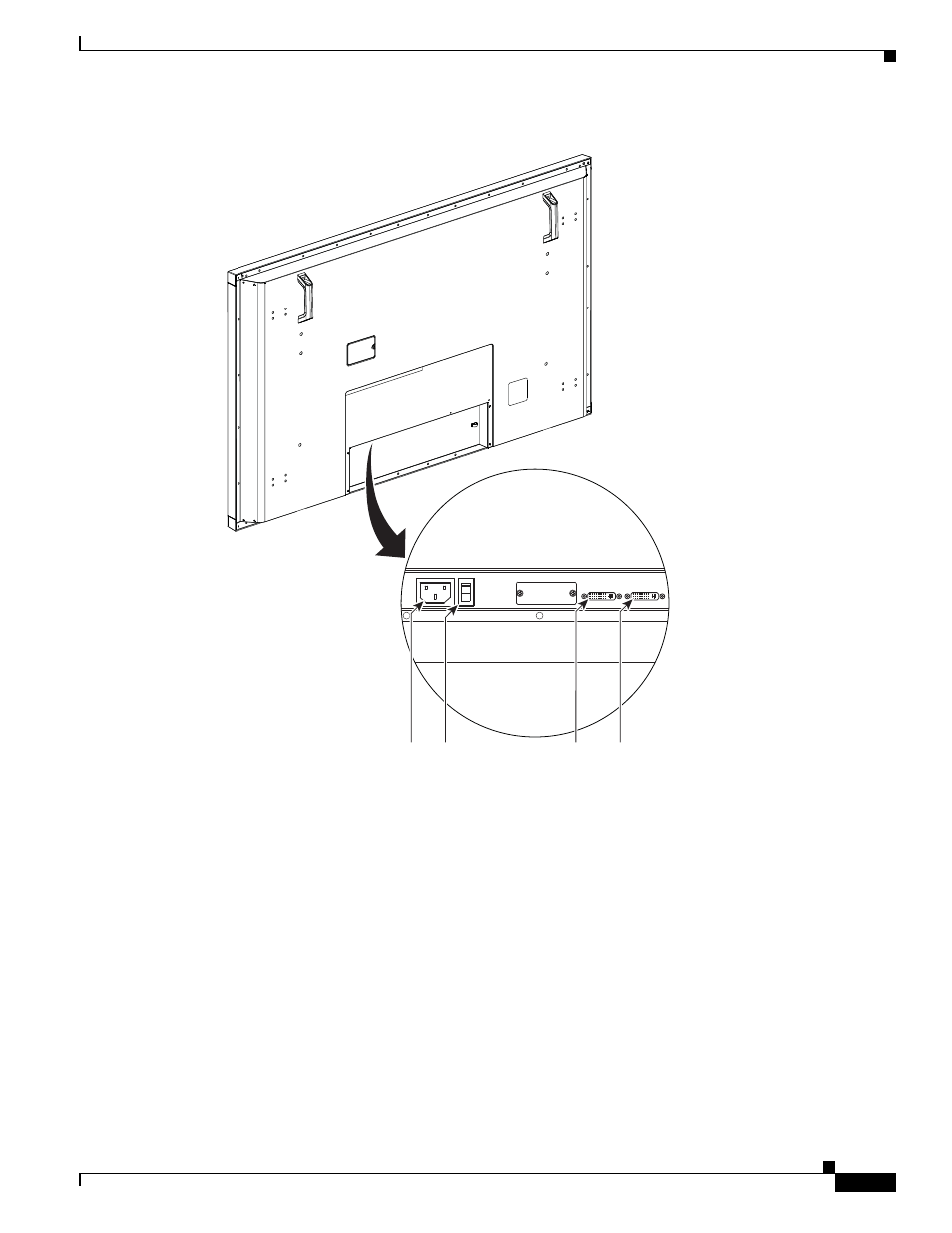

Figure 12-4
Power and Signal Connections for Displays with DVI Connectors
Step 12
Hang the replacement Plasma display.
Step 13
Plug in the signal cable to the correct codec.
See
Chapter 9, “Routing Power and Signal Cables.”
Step 14
Plug in the power cable to the correct PDU.
See
Chapter 9, “Routing Power and Signal Cables.”
Step 15
Align and level the display and add the black seam tape.
See
Chapter 3, “Mounting and Leveling the Plasma Displays.”
Step 16
If required, attach the camera cluster.
See
Chapter 8, “Assembling the Remaining Cisco TelePresence Elements”
Step 17
Reassemble the display shelf sections.
See
Chapter 4, “Building the Display Shelf Assembly.”
208400
Codec DMP
On/Off Switch
AC inlet
