9-15
Cisco TelePresence System 3200
OL-14521-01
Chapter 9 Routing Power and Signal Cables
Power Requirements for the Cisco TelePresence 3200
Step 12
Attach and route the power and signal cables for the plasma displays.
Note
Connect the center plasma display to "UNSWITCHED" outlet of the the auxiliary control unit.

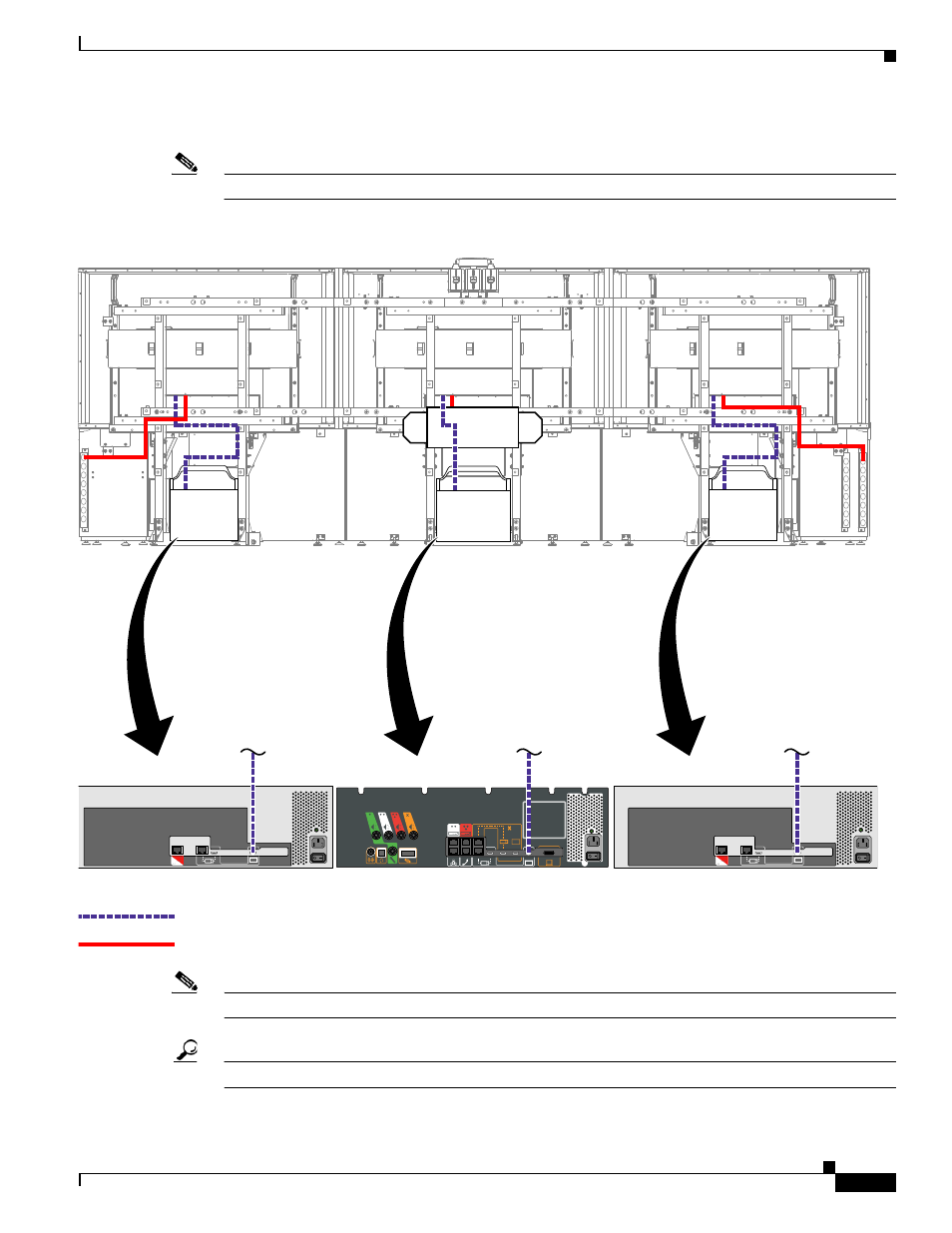

Figure 9-12
Cabling the Plasma Display
Note
displays the rear view of the Cisco TelePresence System 3200. Left and right are reversed.
Tip
Before you plug cables into a Codec or PDU, label each cable.
Signal
Power
204164
