Cisco TelePresence System 3200
OL-14521-01
Chapter 5 Building the Lighting Assembly
Parts List
Step 17

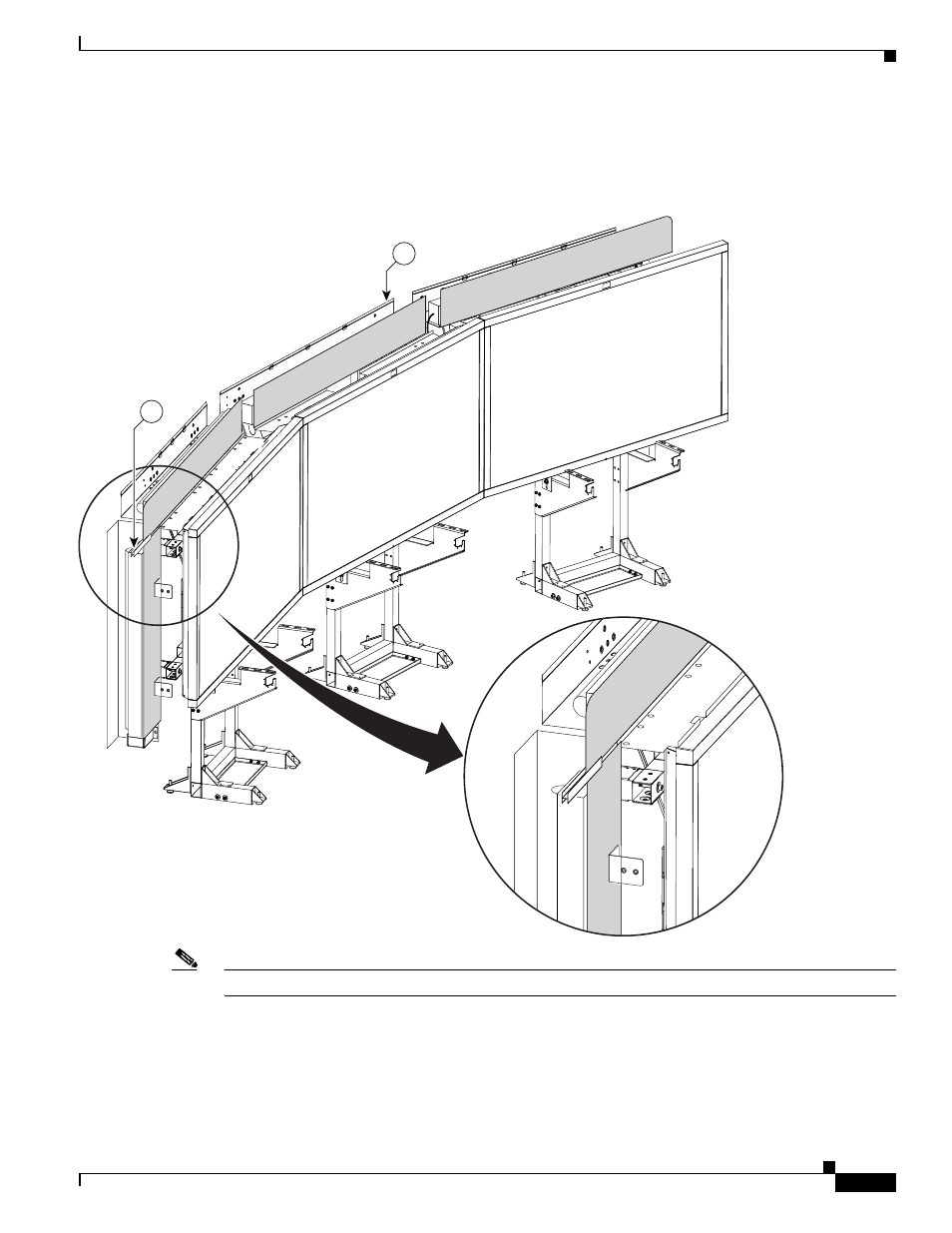

Slide the Plastic Diffuser Panel brace between the end (vertical) Plastic Diffuser panel and the left and
right Plastic Diffuser panels.
Figure 5-17
Plastic Diffuser Panel brace
Note
If a diffuser becomes scratched, use a black felt-tip permanent marker to cover the imperfection.
201202
13
29
