Cisco TelePresence System 3200
OL-14521-01
Chapter 5 Building the Lighting Assembly
Parts List
Step 22

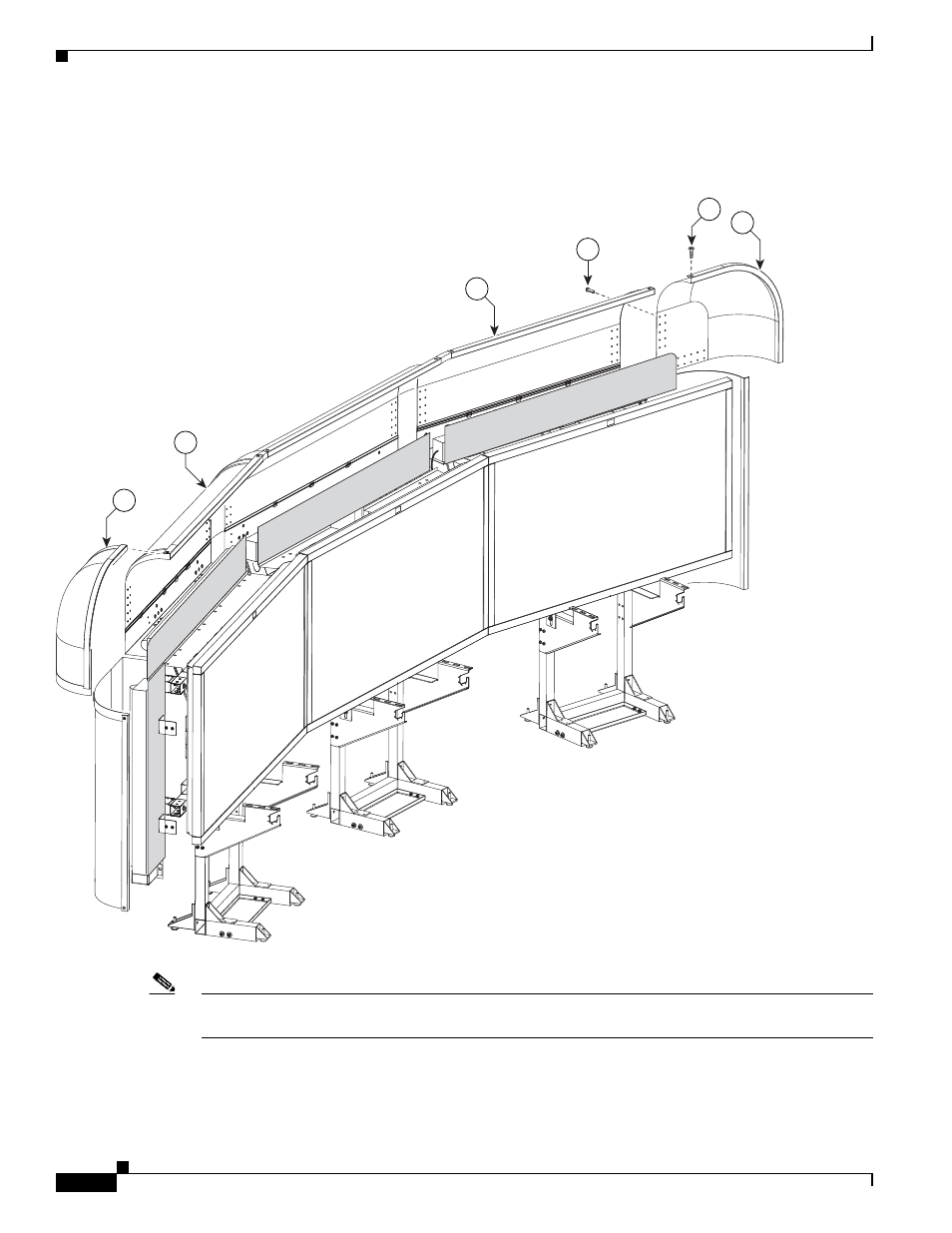

Attach the left and right corner Reflector Transition pieces to the Reflector tops.
Figure 5-22
Left and Right corner Reflector Transition pieces
Note
Tighten all screws from
through
. The goal is to ensure the reflector pieces form
a “seamless hood” around the lighting assembly.
