Power Requirements for the Cisco TelePresence 3200
Step 5
Route the extension cables for the Cisco Unified IP Phone, first row microphones, and (if required)
Ethernet connections in the first row table; then, connect the microphone cables to the microphones.
Tip
Use the cable gutters in the privacy panels to route the cables.
Note
Using masking tape or another method, note the microphone cables as they correspond to the
microphones. You use this information when you connect the microphone cables to the audio/video
extension unit in
.
Figure 9-5

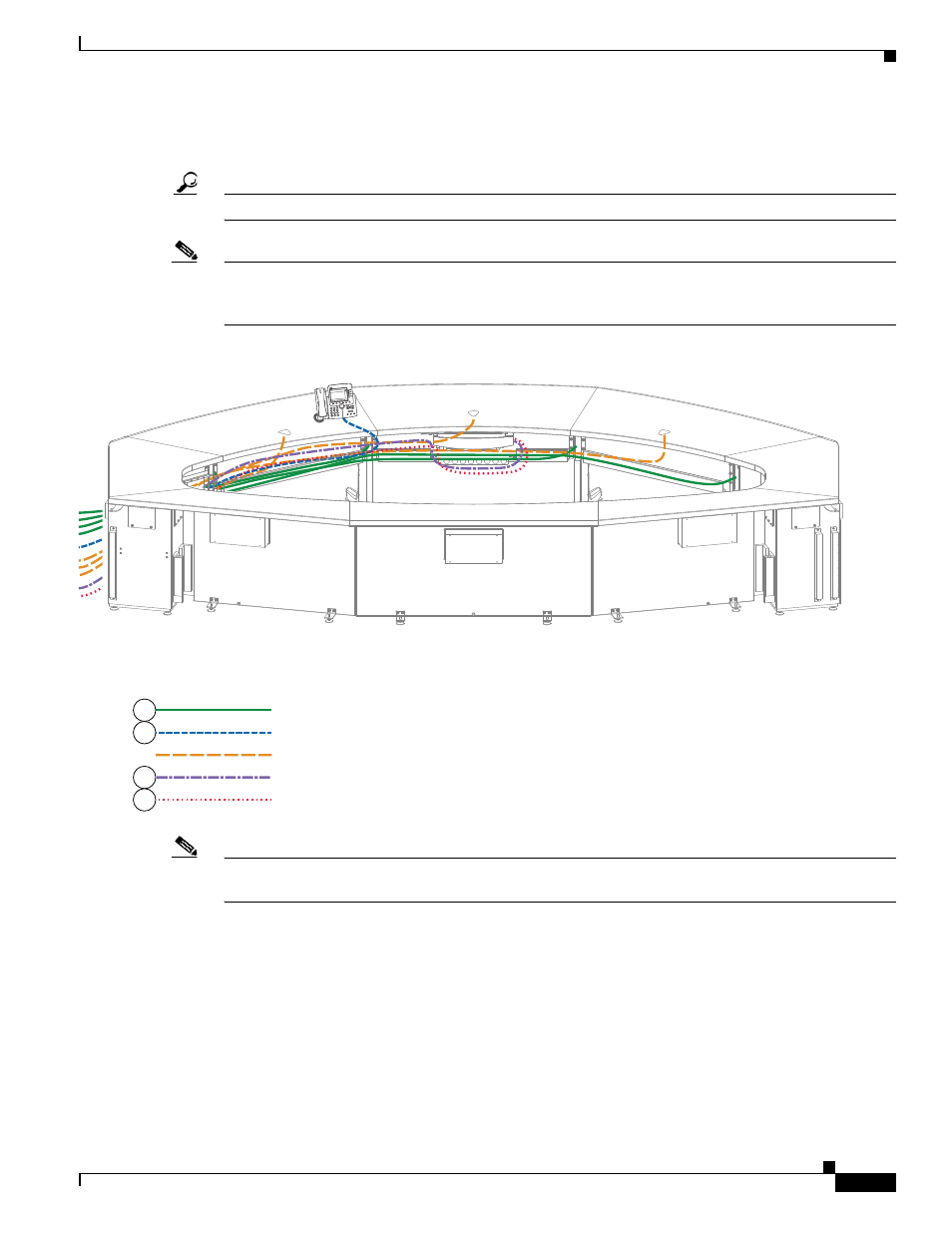

Table assembly Signal Cable Routing
Note
Route the Table Leg Signal cables behind the Display structure, along with the other signal cables, but
do not plug them into any Codec.
201191
TelePresen
ce
3
DEF
6
MNO
9
WXYZ
#
2
ABC
5
JKL
8
TUV
0
OPER
1
4
GHI
7
PQRS
CISCO IP PH
ONE
7970
Table Leg Signal
IP Phone Signal
Microphone Signal
Projector Signal
VGA Peripheral
5
5
4
3
