Cisco TelePresence System 3200
OL-14521-01
Chapter 7 Building the Second Row Table Assembly
Parts List
Figure 7-44

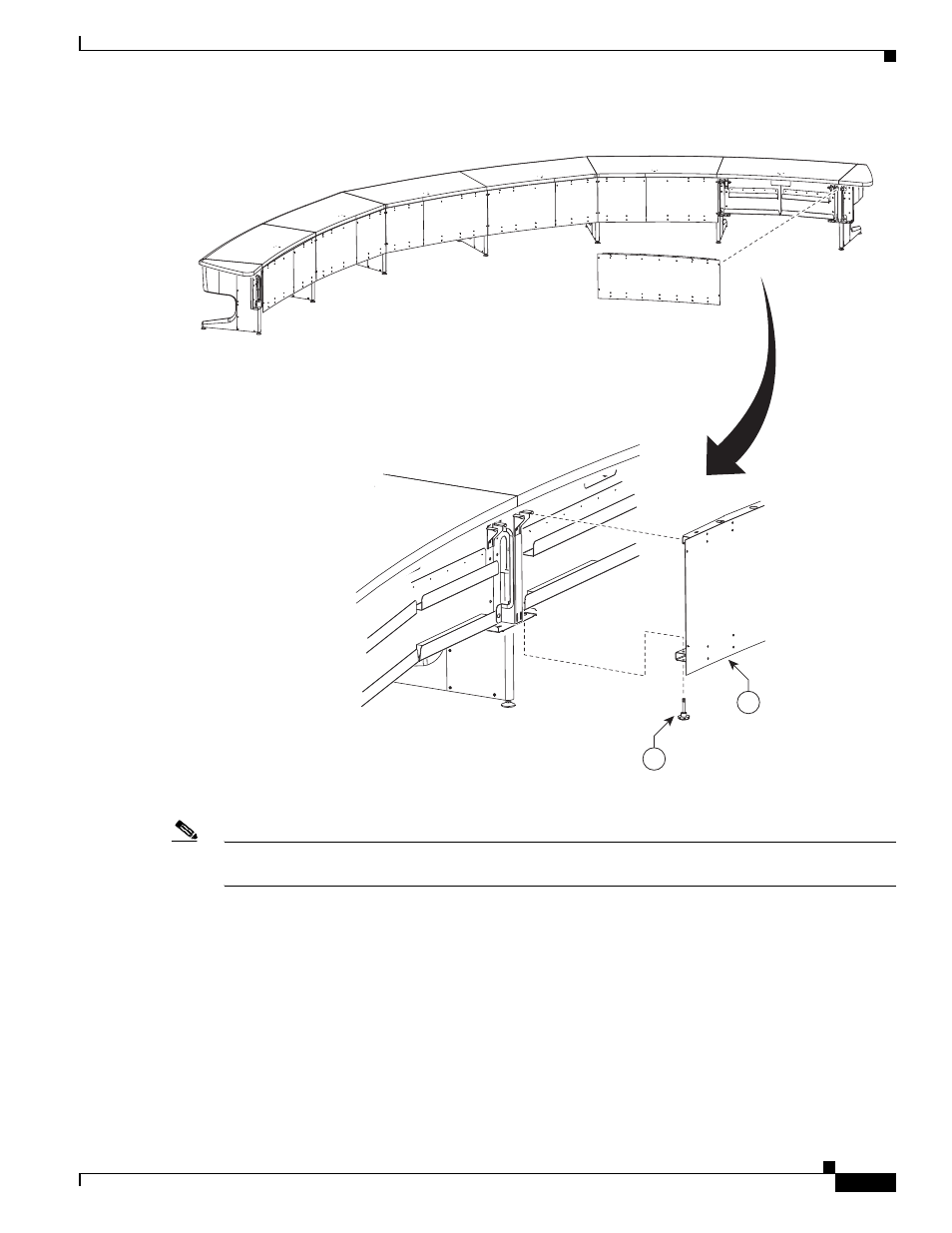

Right Section 5 (Section 7) Privacy Panel
Step 45
Adjust panels until all seams between the panels are even, then fully tighten the knob screws.
Note
Start with the seam between sections 1 and 2. The seam between the table tops should align with the
seam between the privacy panels.
