Chapter 7 Building the Second Row Table Assembly

Parts List

Figure 7-2

Four Molded foam bumpers and the four Table leg bases

Step 3

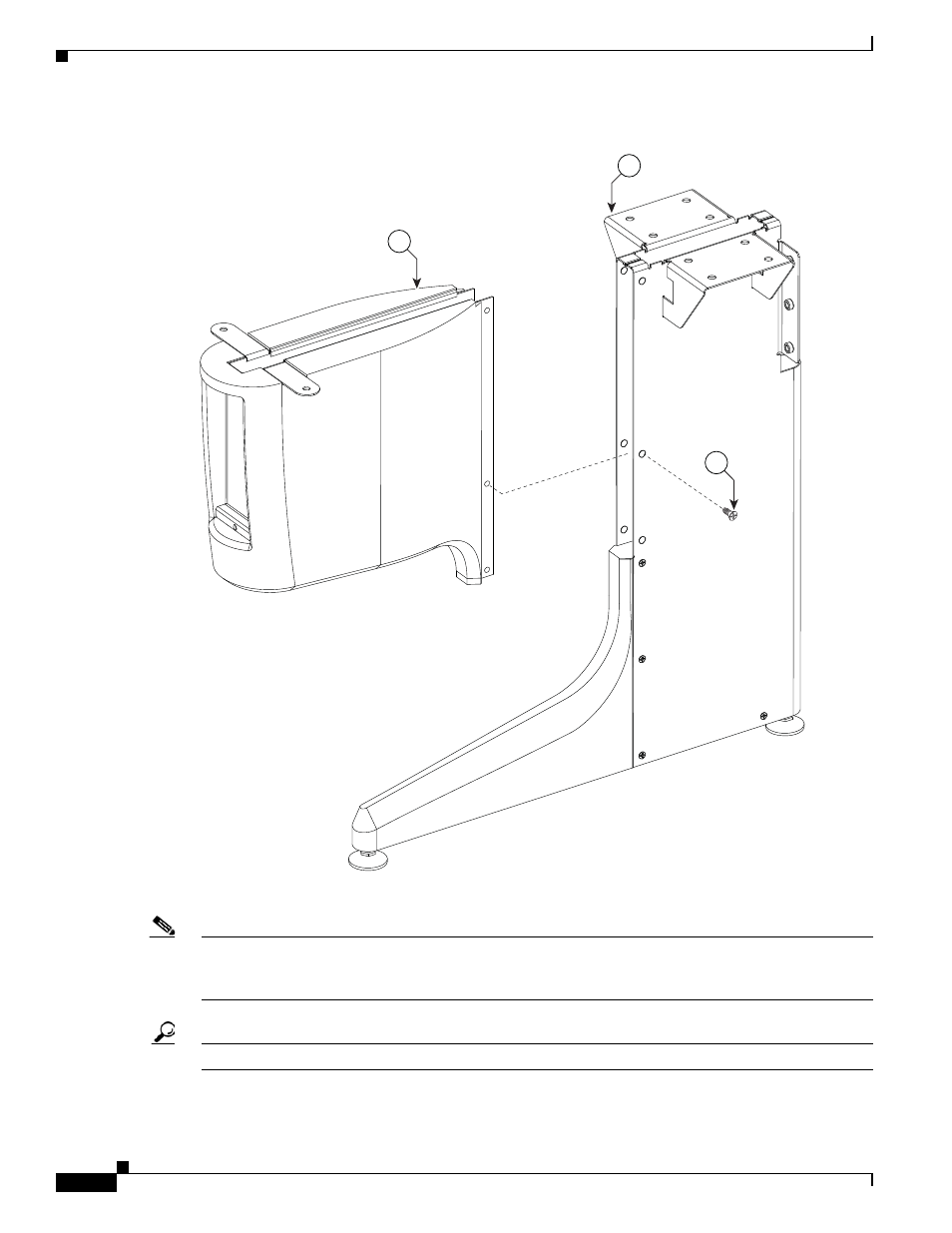

Attach the first set of support brackets for the gutter and privacy panel to the table legs.

Note

Note the table layout. Each section is numbered as shown in

. Each cable gutter and privacy

panel is different. The numbering for the cable gutters and privacy panels correspond to the numbering
for the table top.

Tip

When you attach the support brackets, it can be helpful to turn the table leg upside-down.
