Chapter 7 Building the Second Row Table Assembly
Parts List

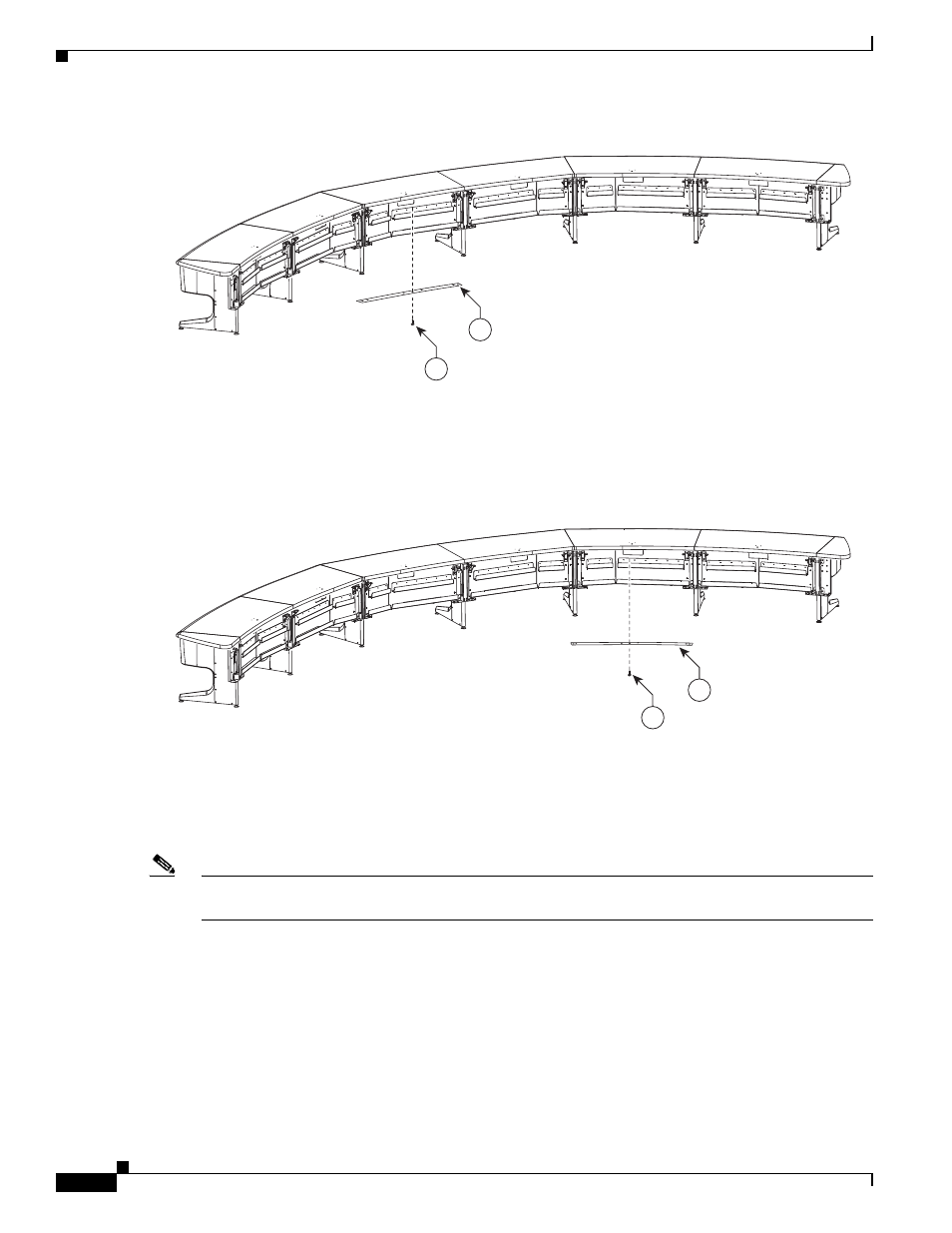

Figure 7-33
Section 2 (Section 4) Privacy Panel Alignment Bracket
Step 34
Attach the privacy panel alignment bracket to the underside of table section 3 (section 6).
Figure 7-34
Section 3 (Section 6) Privacy Panel Alignment Bracket
Step 35
Attach the privacy panel alignment bracket to the underside of table section 4 (section 3).
Note
If you are building a Reduced Configuration table (four tabletops instead of six), continue to
after completing this step.
35
23
204126
25
24
204127
