Cisco TelePresence System 3200
OL-14521-01
Chapter 9 Routing Power and Signal Cables
Power Requirements for the Cisco TelePresence 3200
Step 6
Route the second row microphone extension cables to the rear of the CTS 3200. If required, use the
microphone extension cables that are included in the microphone kit to lengthen the cables.
Note
Using masking tape or another method, note the cables as they correspond to the microphones. You use
this information when you connect the microphone cables to the audio/video extension unit in
.
Figure 9-6

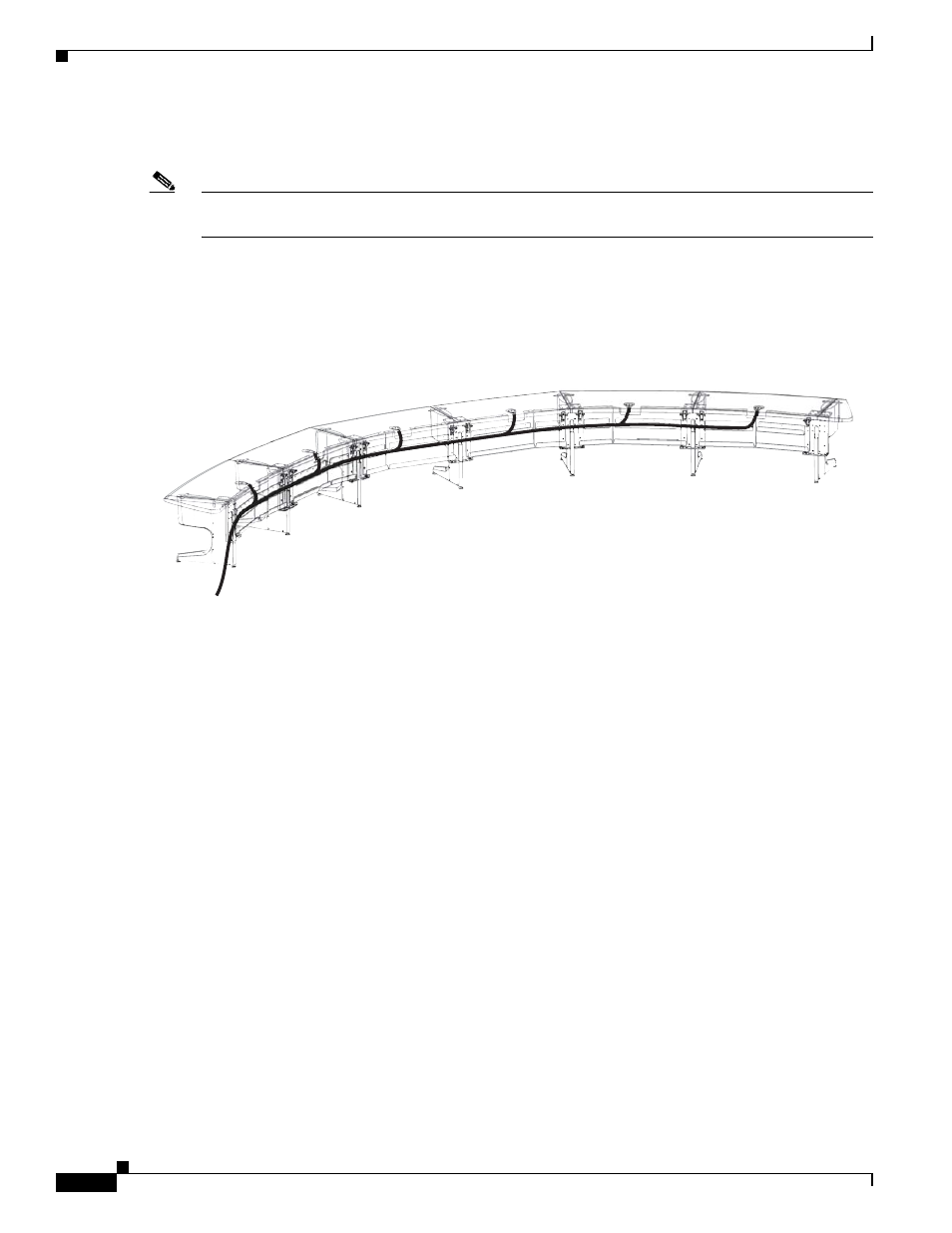

Microphone Cable Routing
204156
