9-23
Cisco TelePresence System 3200
OL-14521-01
Chapter 9 Routing Power and Signal Cables
Power Requirements for the Cisco TelePresence 3200
Cable routing for a standard CTS-3200 installation that uses a presentation codec is shown in
Figure 9-19 . Refer to the “Options for the Cisco TelePresence System 3200” chapter of the Cisco
TelePresence Hardware Options and Upgrade Guide for more information about the presentation codec.

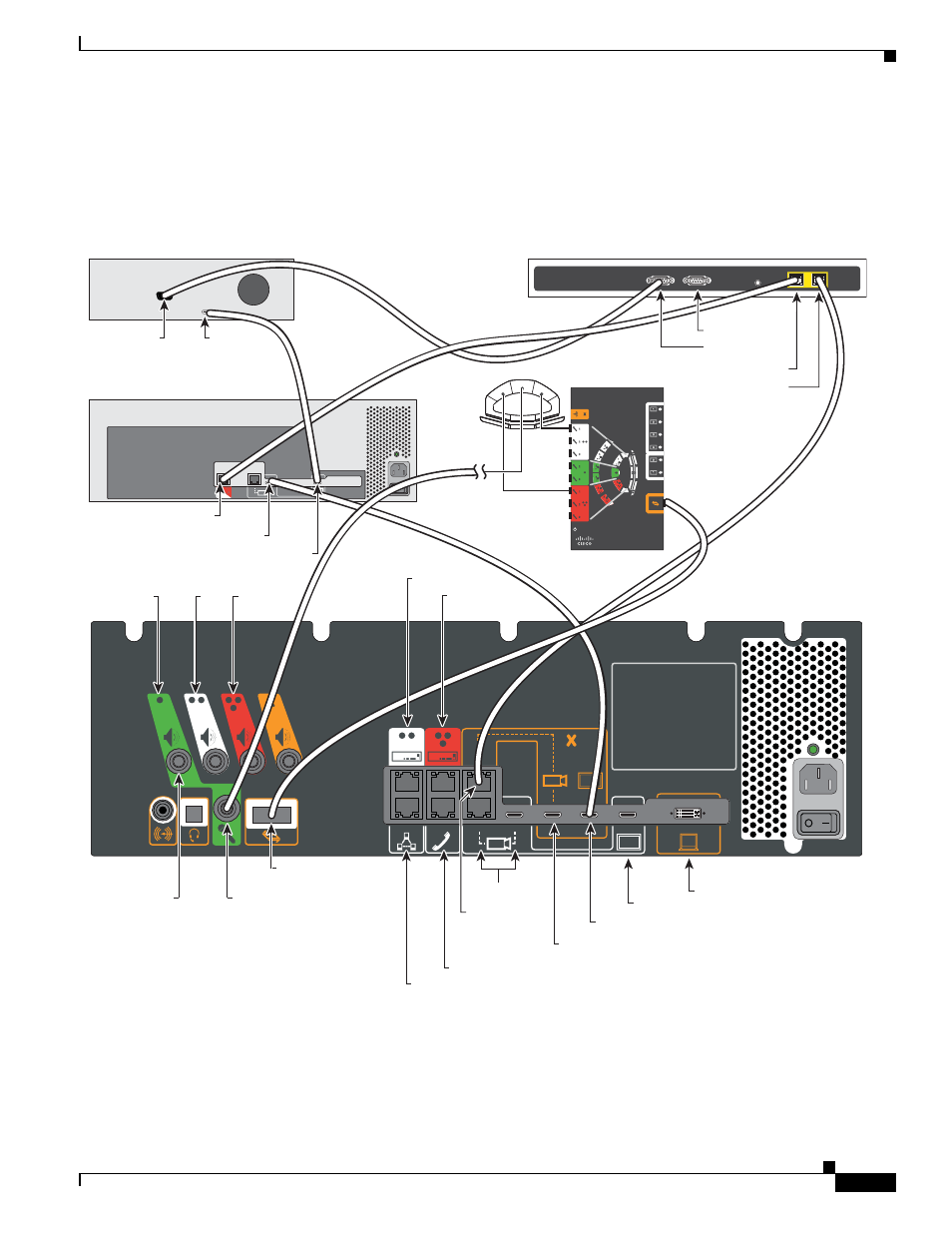

Figure 9-19 Cable Routing for CTS-3200 with Presentation Codec
204192
1 2 1 2
10/ 100 NETW O RK PO RTS RESET SERIAL PO RTS
Primary Codec
Auxiliary Control Unit Projector
Presentation Codec
Auxiliary Video Out
Camera
IP Phone
Auxiliary
network
port
Network
Left Right
Document Camera
Left Codec
Right Codec Center
Display
Auxiliary Video In
Auxiliary Video In
Video out
Video In Serial
First Row
Center Microphone
Audio Expansion
Unit
Speaker
Serial 2
Serial 1
Ethernet 1
Ethernet 2
Signal
