Cisco 3200 User Manual
Page 78

6-10
Cisco TelePresence System 3200
OL-14521-01
Chapter 6 Building the First Row Table Assembly
Parts List
d.
While one person is tightening the draw bolt from below, it is important for the support person to
maintain the alignment of the table segment edges.

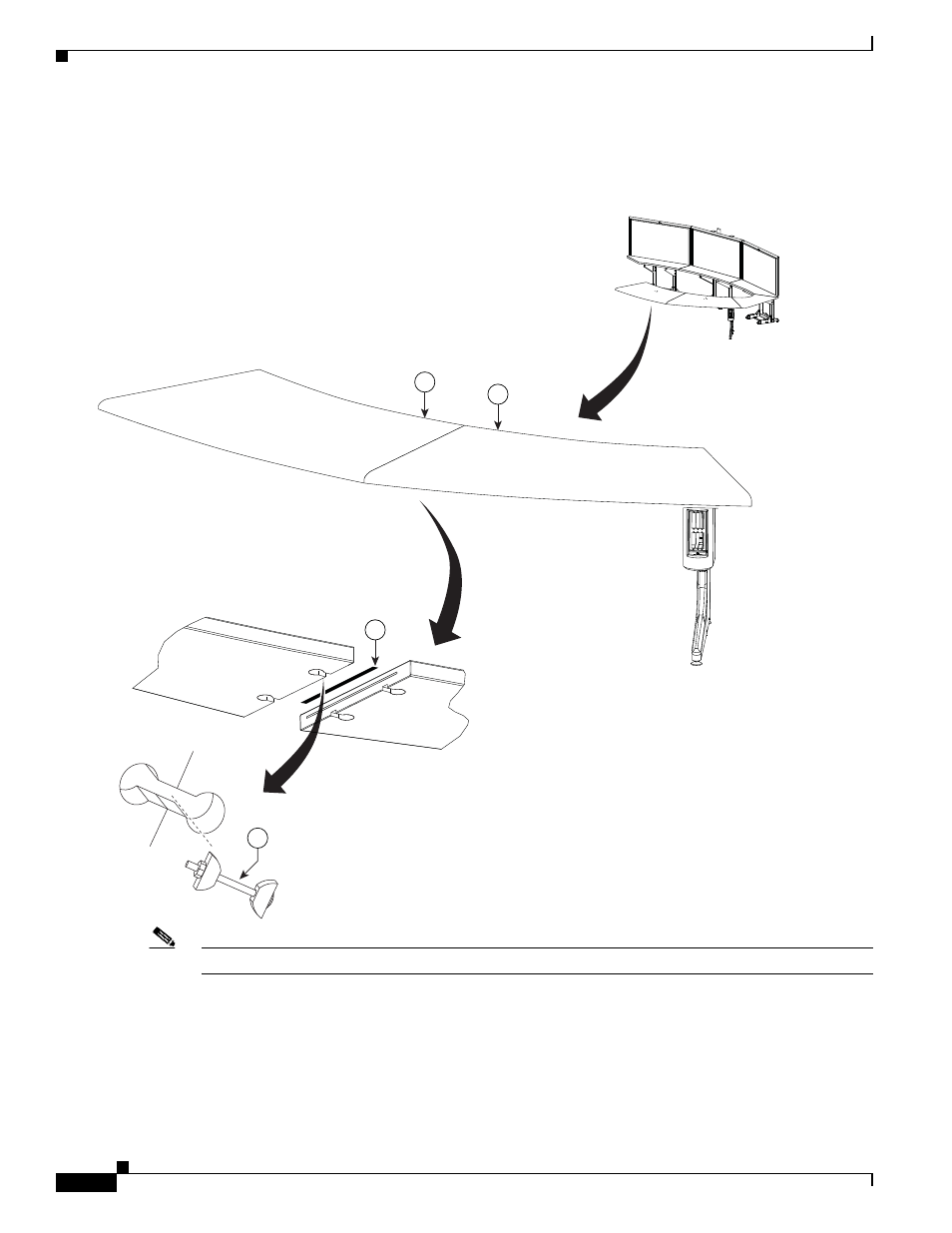

Figure 6-8
Center Table segment
Note
The splines have different lengths. Use a spline that is slightly smaller than the slot in the table top.
Step 9
Attach the right center Table leg.
6
5
12
204139
10
