Chapter 6 Building the First Row Table Assembly
Parts List

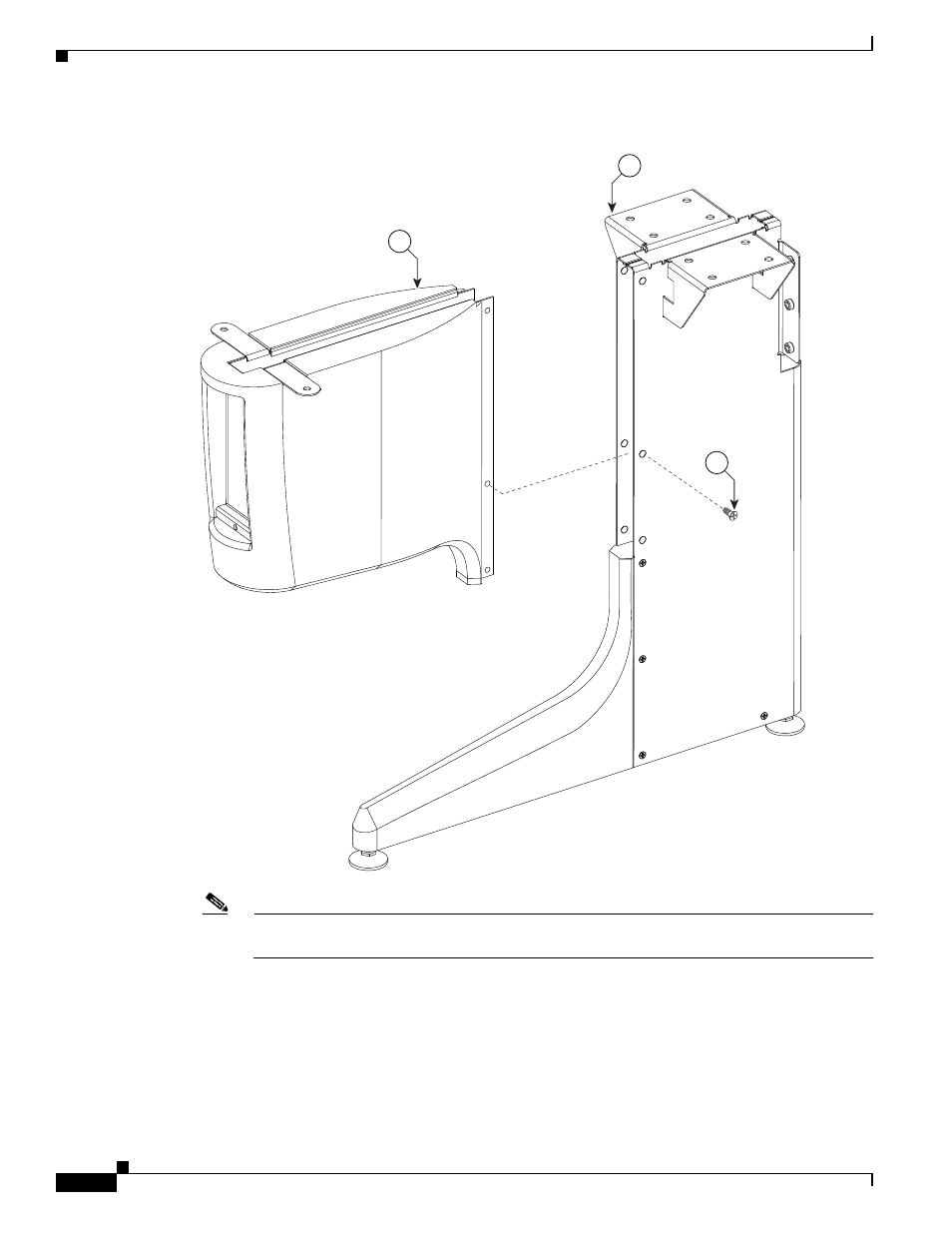

Figure 6-2 Four Molded foam bumpers and the four Table leg bases
Note The leg base with only one top right attachment bracket is the left most table leg (see
Figure 6-12 ). The other three legs each have two attachment brackets.
Step 3 Assemble the I/O modules for the outside left and outside right molded foam bumpers.
The outside left and outside right molded foam bumpers only have one I/O module each. The inner
molded foam bumpers have two (see
Figure 6-4 ).
