To configure points:
1. Click on the Points function to display the "Points Configuration" window.

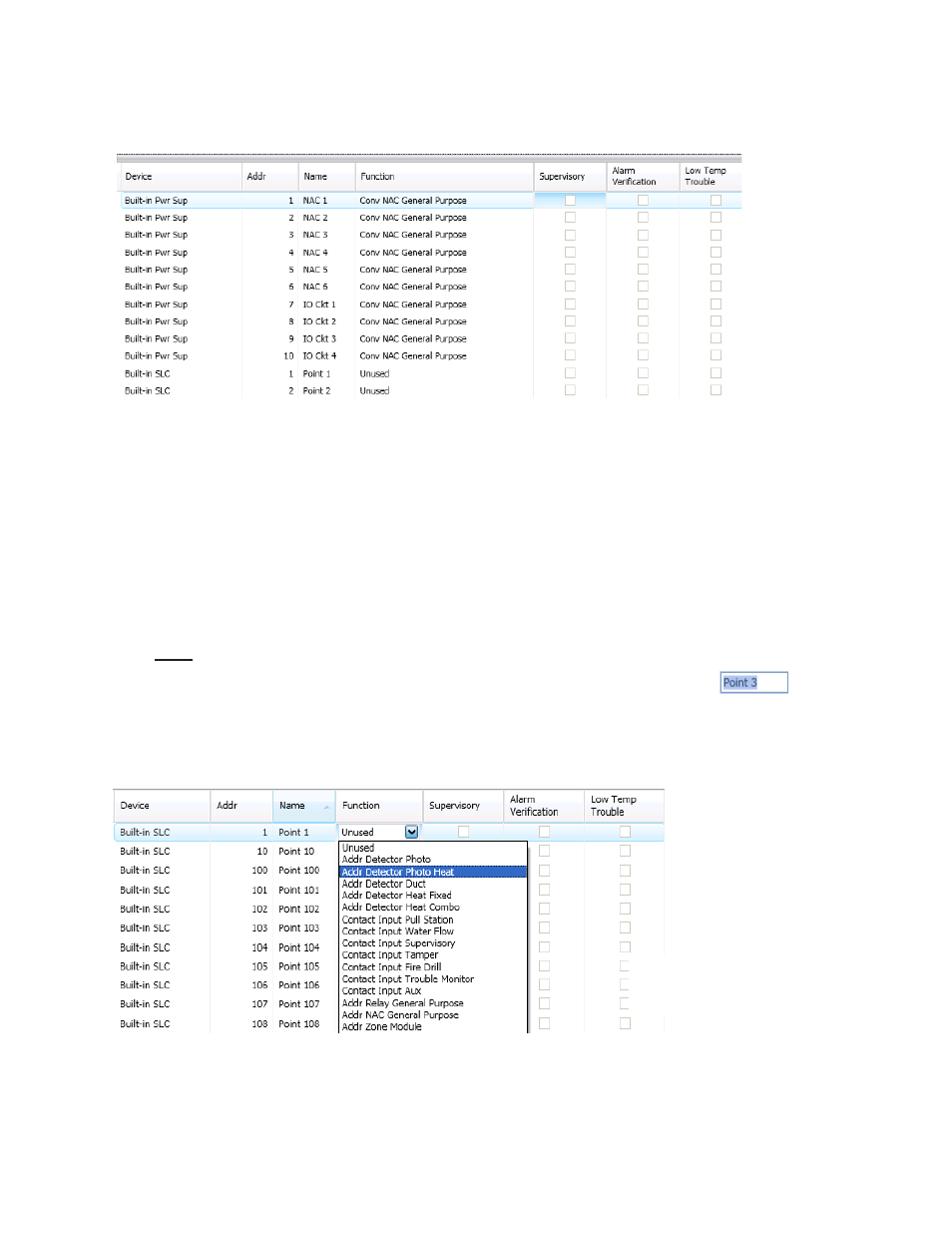

Figure 110. Example of a Configuration Window
Note: Click the columns to sort devices by the field selected, i.e., "Name", "Alarm Verification" or "Low Temp Trouble".
• Supervisory – Designates a detector as a supervisory input instead of an alarm input.
• Alarm Verification – Specifies that a detector will utilize the alarm verification feature.
• Low Temp Trouble – Indicates that a device is below 40̊F.
2. Devices are listed by “Built-in SLC” device addresses, followed by the NACs and I/O circuits.
Note: Click on the “Device” field to sort the list by PWR Supply followed by SLCs.
To configure a single point:
1. Double-click in “Name” field to enter a descriptive name. The current name is highlighted as shown:
2. Enter a new name (up to 16 alphanumeric characters).
3. Click on drop-down arrow in the “Function” field. Select a function type from the list.
Figure 111. Example of Configuring a “Single” Point
4. Continue configuring other points, as needed.
