Cabinet Wiring Connections

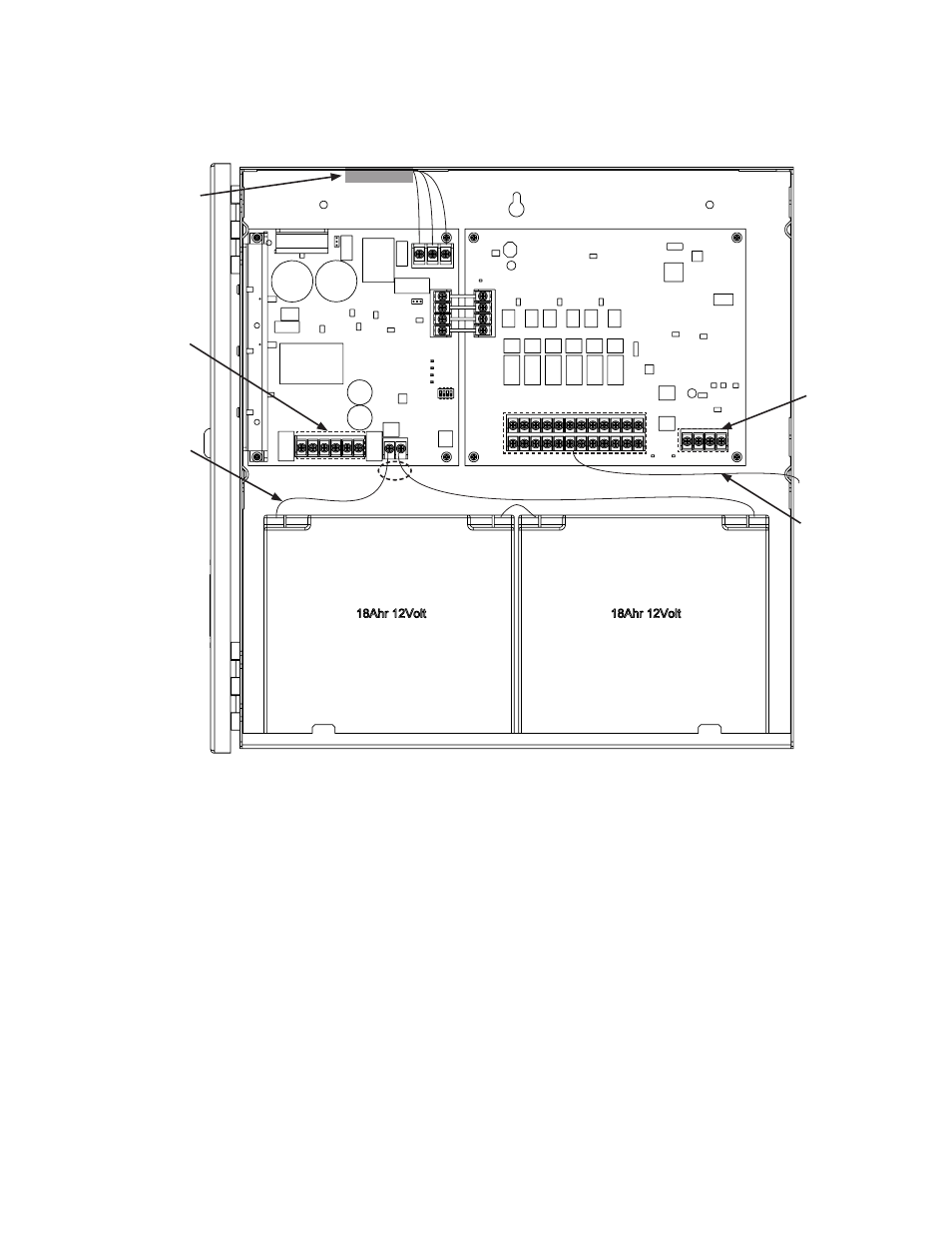

Figure 148. PSN-1000 Wiring
DWG #602-23
120VAC 50Hz-60Hz
240VAC 50Hz-60Hz
Connect to separate
unswitched AC circuit
Power limited
wiring
P-Link
Terminals
Non-power limited
relay connection
Non-power limited
battery connection
