LED Driver (DRV-50)
The panel supports ten (10) DRV-50s. The DRV-50 provides up to 50 LED outputs which may be mapped to any zone. Like the
LED annunciator, the LED driver provides five (5) non-programmable system LEDs that annunciate the overall system condition
(Power, Earth, Silenced, Alarm, Supervisory and Trouble). Additionally, the LED driver has four (4) programmable supervised
dry contact inputs.
Note: This panel supports up to ten (10) LED-16 annunciators and/or DRV-50 drivers in any combination.
To add and configure a LED driver:
1. Select DRV-50 from the system panel.
2. Click the Add Device button. The “DRV-50 Add” window displays.

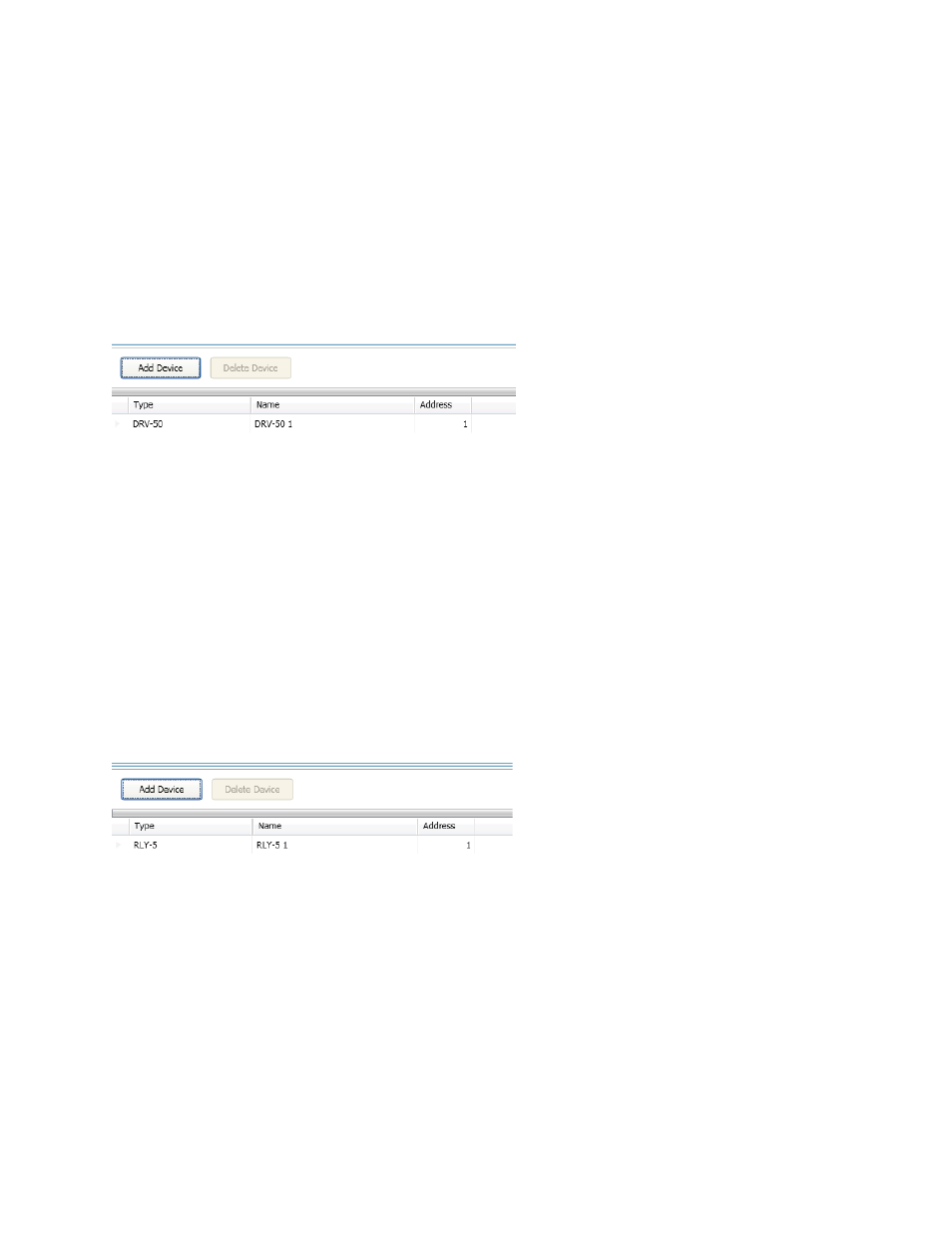

Figure 135. Example of the Add DRV-50 Window
3. Double-click in the “Name” field to customize name.
4. Double-click in “Address” field to adjust address, if needed.
5. Repeat steps, as needed, to continue adding DRV-50s.
Relay Board (RLY-5)
The panel supports up to thirty-one (31) Relay Boards. Each RLY-5 provides five (5) Form-C relay outputs which may be
individually mapped to any zone.
To add and configure a relay board:
1. Select RLY-5 from the system panel.
2. Click the Add Device button. The “RLY-5 Add” window displays.
Figure 136. Example of the Add RLY-5 Window
3. Double-click in the “Name” field to customize name.
4. Double-click in “Address” field to adjust address, if needed.
5. Repeat steps, as needed, to continue adding RLY-5s.
