4.9.11 QoS Control List

This page shows the QoS Control List (QCL), which is made up of the QCEs. Each row describes a QCE
that is defined. The maximum number of QCEs is 256 on each switch.
Click on the lowest plus sign to add a new QCE to the list.
The QoS Control List screen in

Figure 4-9-13

appears.

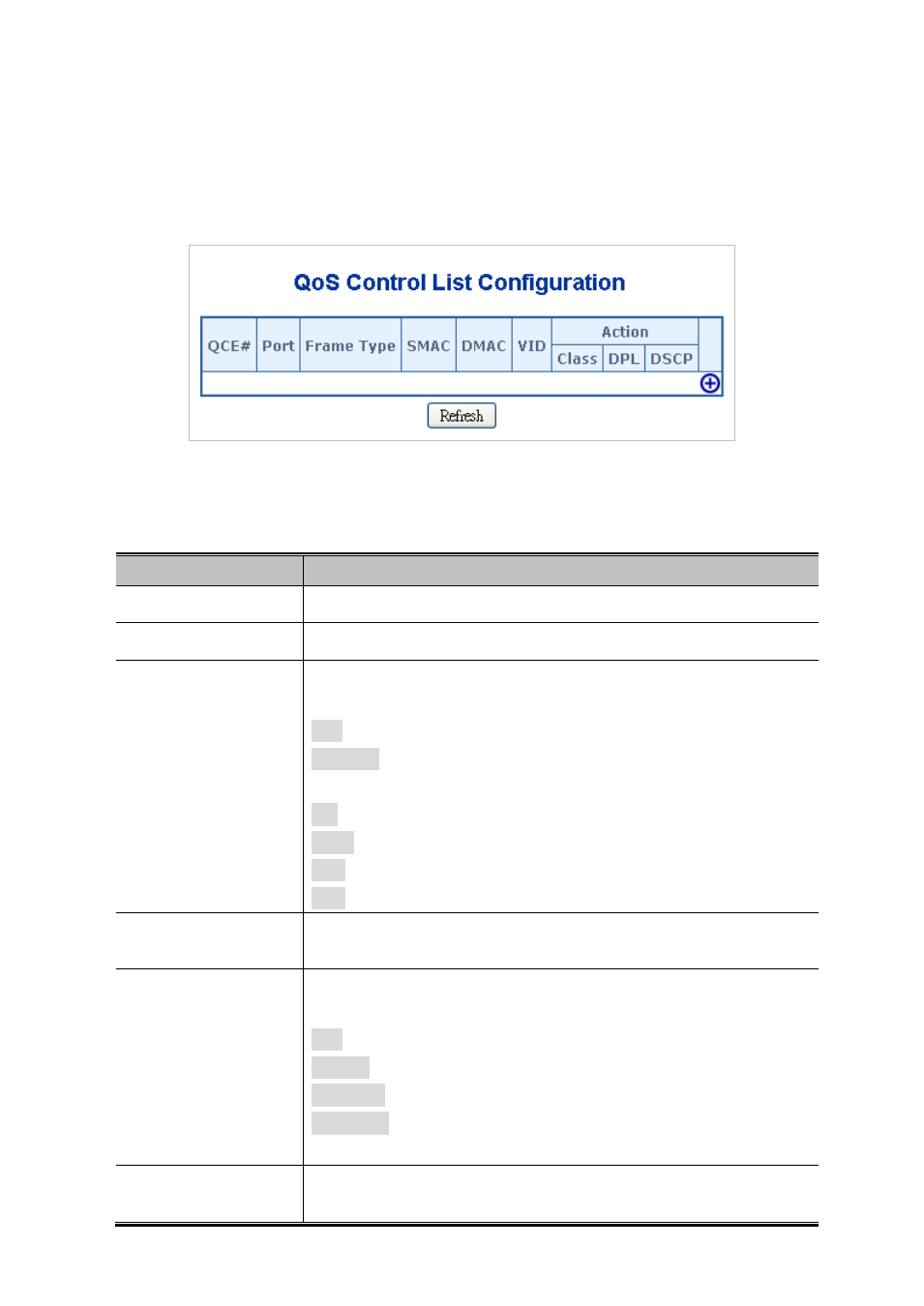

Figure 4-9-13: QoS Control List Configuration page screenshot


The page includes the following fields:

Object

Description

QCE#

Indicates the index of QCE.

Port

Indicates the list of ports configured with the QCE.

Frame Type

Indicates the type of frame to look for incoming frames. Possible
frame types are:
Any: The QCE will match all frame type.
Ethernet: Only Ethernet frames (with Ether Type 0x600-0xFFFF)
are allowed.
LLC: Only (LLC) frames are allowed.
SNAP: Only (SNAP) frames are allowed.
IPv4: The QCE will match only IPV4 frames.
IPv6: The QCE will match only IPV6 frames.

SMAC

Displays the OUI field of Source MAC address, i.e. first three octet
(byte) of MAC address.

DMAC

Specify the type of Destination MAC addresses for incoming
frame. Possible values are:
Any: All types of Destination MAC addresses are allowed.
Unicast: Only Unicast MAC addresses are allowed.
Multicast: Only Multicast MAC addresses are allowed.
Broadcast: Only Broadcast MAC addresses are allowed.
The default value is 'Any'.

VID

Indicates (VLAN ID), either a specific VID or range of VIDs. VID can
be in the range 1-4095 or 'Any'
