IFS NS3502-8P-2S User Manual

101

4.4.6 Port Mirror

Configure port Mirroring on this page. This function provide to monitoring network traffic that
forwards a copy of each incoming or outgoing packet from one port of a network Switch to another
port where the packet can be studied. It enables the manager to keep close track of switch
performance and alter it if necessary.

• To debug network problems, selected traffic can be copied, or mirrored, to a mirror port where a

frame analyzer can be attached to analyze the frame flow.

• The Managed Switch can unobtrusively mirror traffic from any port to a monitor port. You can

then attach a protocol analyzer or RMON probe to this port to perform traffic analysis and verify
connection integrity.

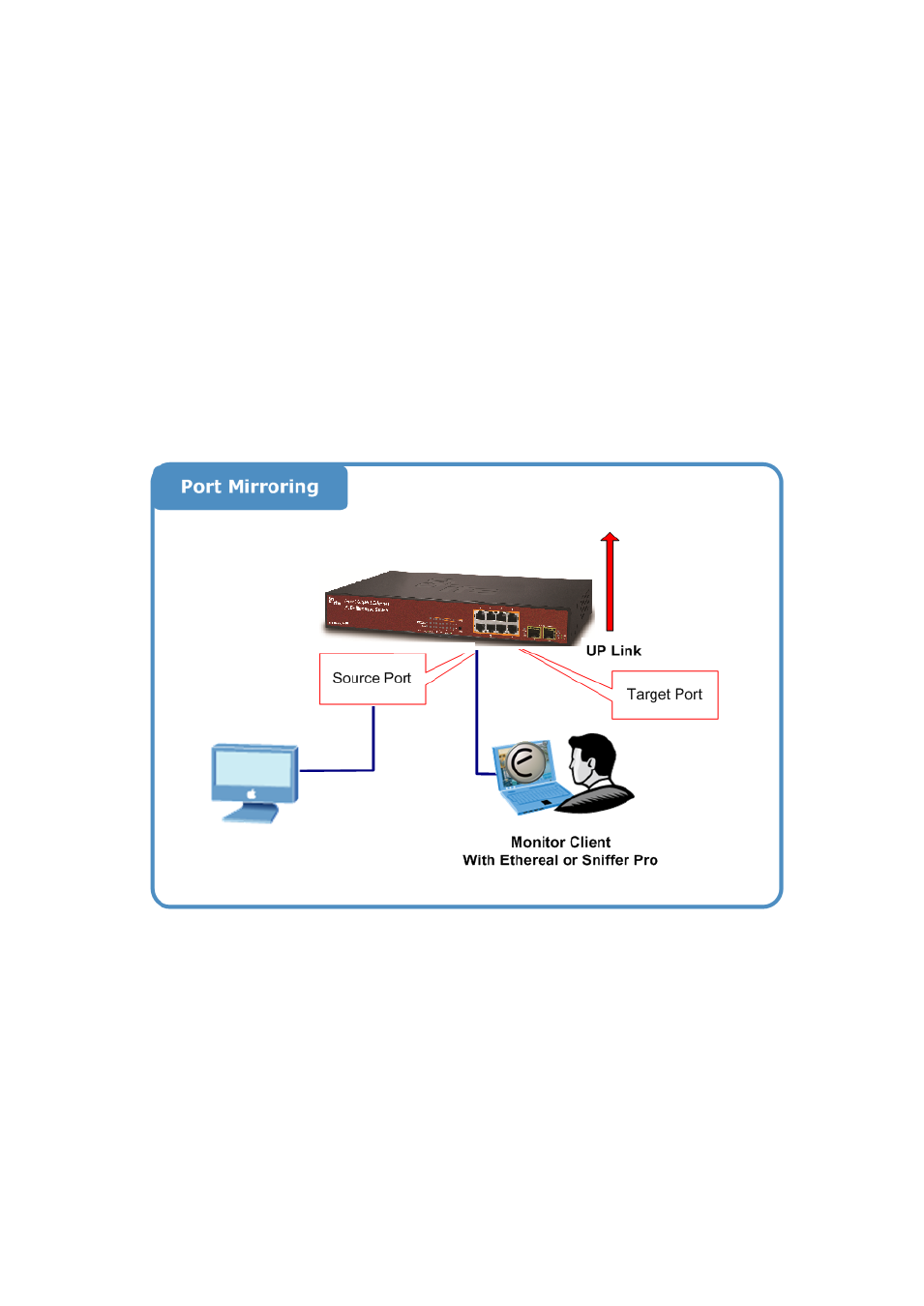

Figure 4-4-6: Port Mirror application


The traffic to be copied to the mirror port is selected as follows:

All frames received on a given port (also known as ingress or source mirroring).

All frames transmitted on a given port (also known as egress or destination mirroring).
