4.9.10 DSCP Classification
This page allows you to map DSCP value to a QoS Class and DPL value. The DSCP Classification screen in
Figure 4-9-12 appears.

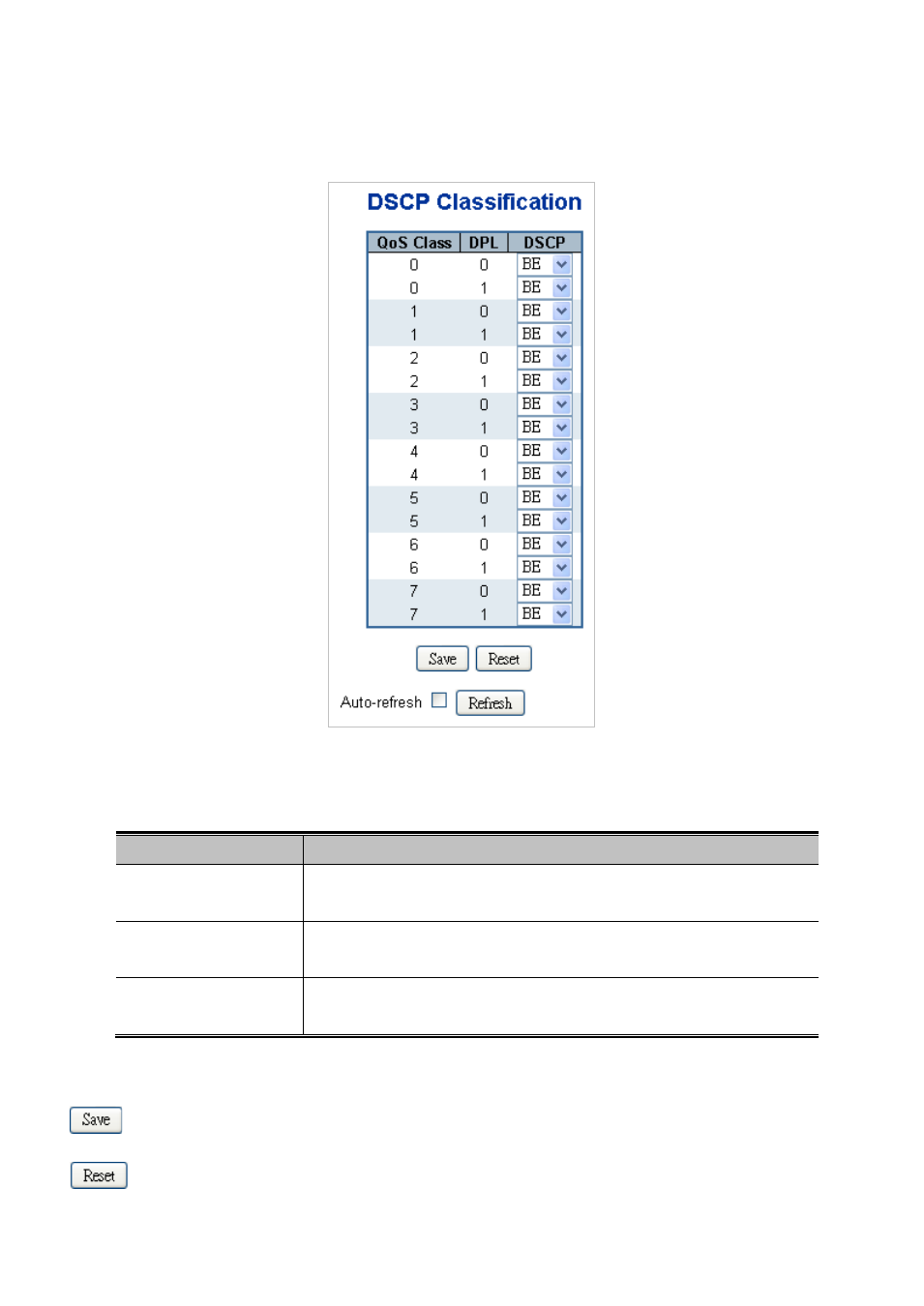

Figure 4-9-12: DSCP Classification page screenshot
The page includes the following fields:
Object Description
• QoS Class Available QoS Class value ranges from 0 to 7. QoS Class (0-7) can
be mapped to followed parameters.
• DPL Drop Precedence Level (0-1) can be configured for all available
QoS Classes.
• DSCP Select DSCP value (0-63) from DSCP menu to map DSCP to
corresponding QoS Class and DPL value
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
