error-disabled state, and will be removed from the active
topology.
• Port Error Recovery
Control whether a port in the error-disabled state automatically
will be enabled after a certain time. If recovery is not enabled,
ports have to be disabled and re-enabled for normal STP
operation. The condition is also cleared by a system reboot.
•
Port Error Recovery
Timeout
The time that has to pass before a port in the error-disabled
state can be enabled. Valid values are between 30 and 86400
seconds (24 hours).
The Gigabit Ethernet Switch implement the Rapid Spanning Protocol as the
default spanning tree protocol. While select “Compatibles” mode, the system
use the RSTP (802.1w) to compatible and co work with another STP (802.1d)’s
BPDU control packets.
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.7.3 Bridge Status
This page provides a status overview for all STP bridge instances.
The displayed table contains a row for each STP bridge instance, where the column displays the
following information: The Bridge Status screen in
Figure 4-7-8
appears.

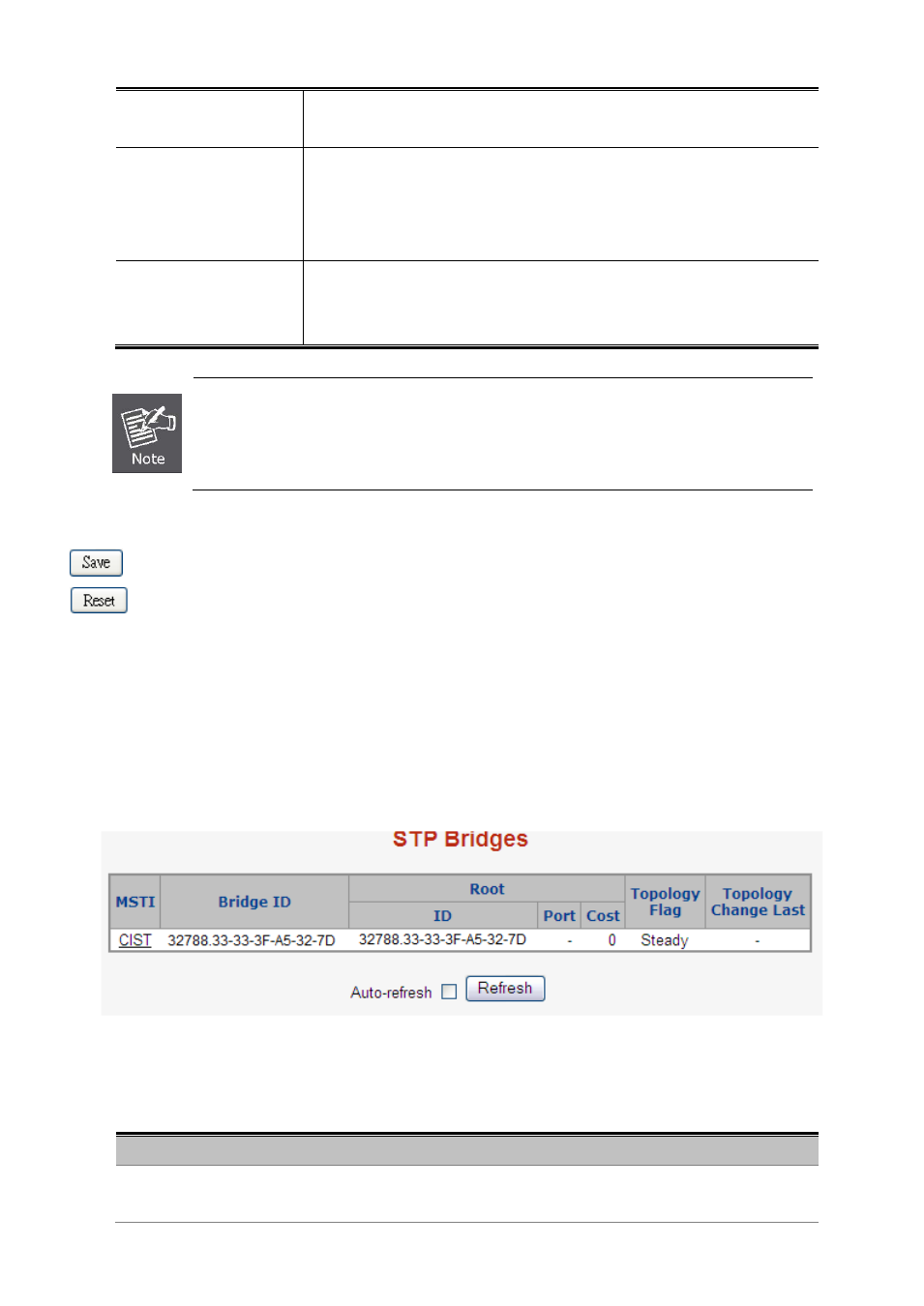

Figure 4-7-8: STP Bridge Status page screenshot
The page includes the following fields:
Object
Description
•
MSTI
The Bridge Instance. This is also a link to the
