Honeywell Bendix/King AV8OR Ace User’s Guide
D200904000003 Aviation Mode Operation
Rev 3 Mar 2012 Page 2-33
© Honeywell International Inc. Do not copy without express permission of Honeywell
The MAP VIEW soft key allows the user to:
•
Turn Smart Profile On or Off.
•
Turn Auto Zoom on or Off.
•
Select between the default views of TOPO ON, TOPO OFF
and Relative Terrain and the optional views of HI IFR
Enroute and LO IFR Enroute, if the user has purchased the
IFR Enroute option.
•
Go to the Map Setup page for the current map layer.
Smart Profile
The Smart Profile mode displays the vertical profile of the flight path
along the route of flight above the title bar. A cross section of the
terrain for the flight is shown on the vertical profile. A dashed line is
shown to represent the altitude of the flight path.
If Smart Profile is OFF, tapping the MAP VIEW soft key ,then the
SMART PROFILE soft key toggles Smart Profile to ON. The map
image shrinks 25% to show the SMART PROFILE on the bottom on
the screen.

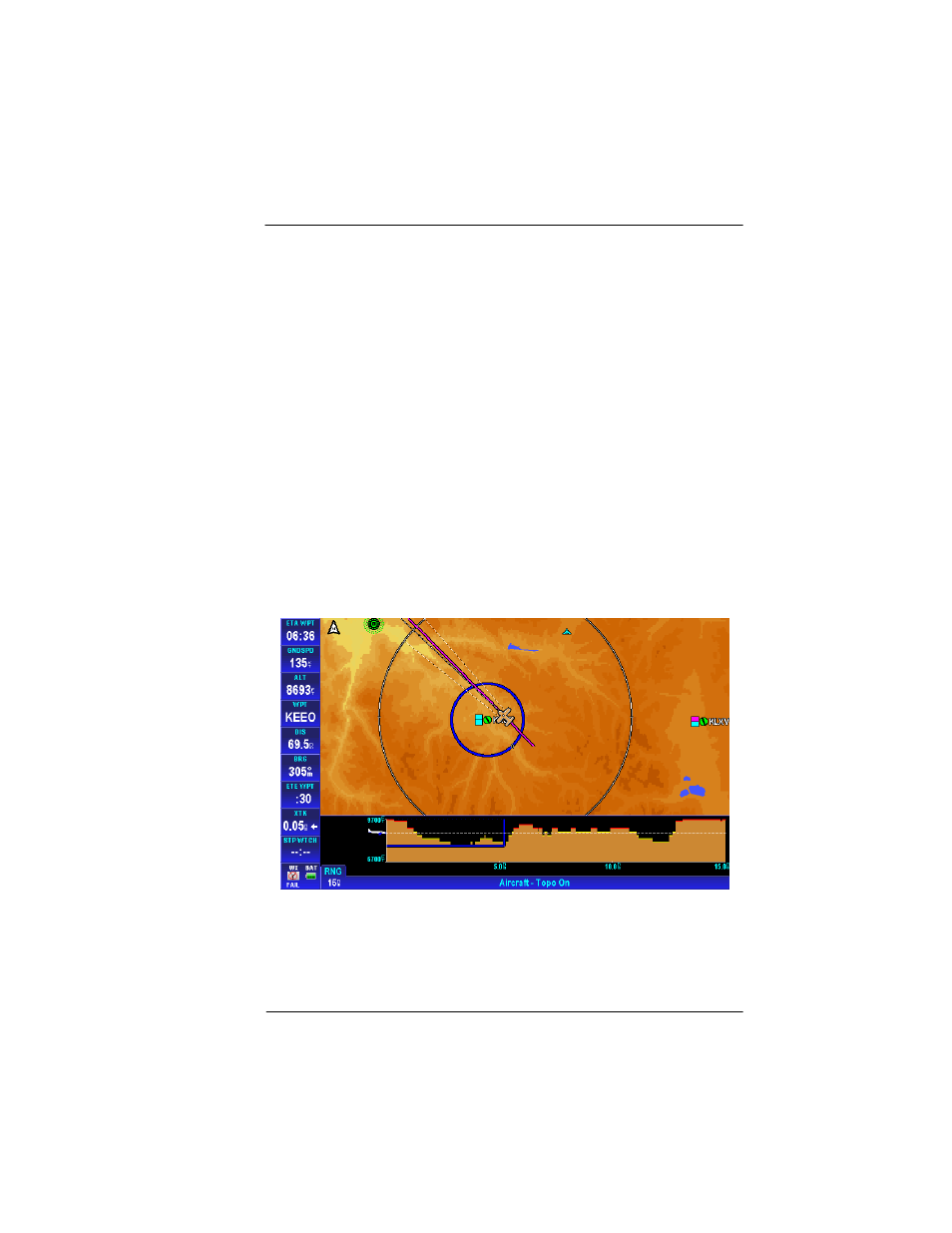

Figure 2-24: Map – Smart Profile On
If Smart Profile is ON tapping the SMART PROFILE soft key toggles
the Smart Profile mode to OFF.
Vertical profiles of airspace vertical boundaries and man-made
obstructions are also displayed in the Smart Profile window.
