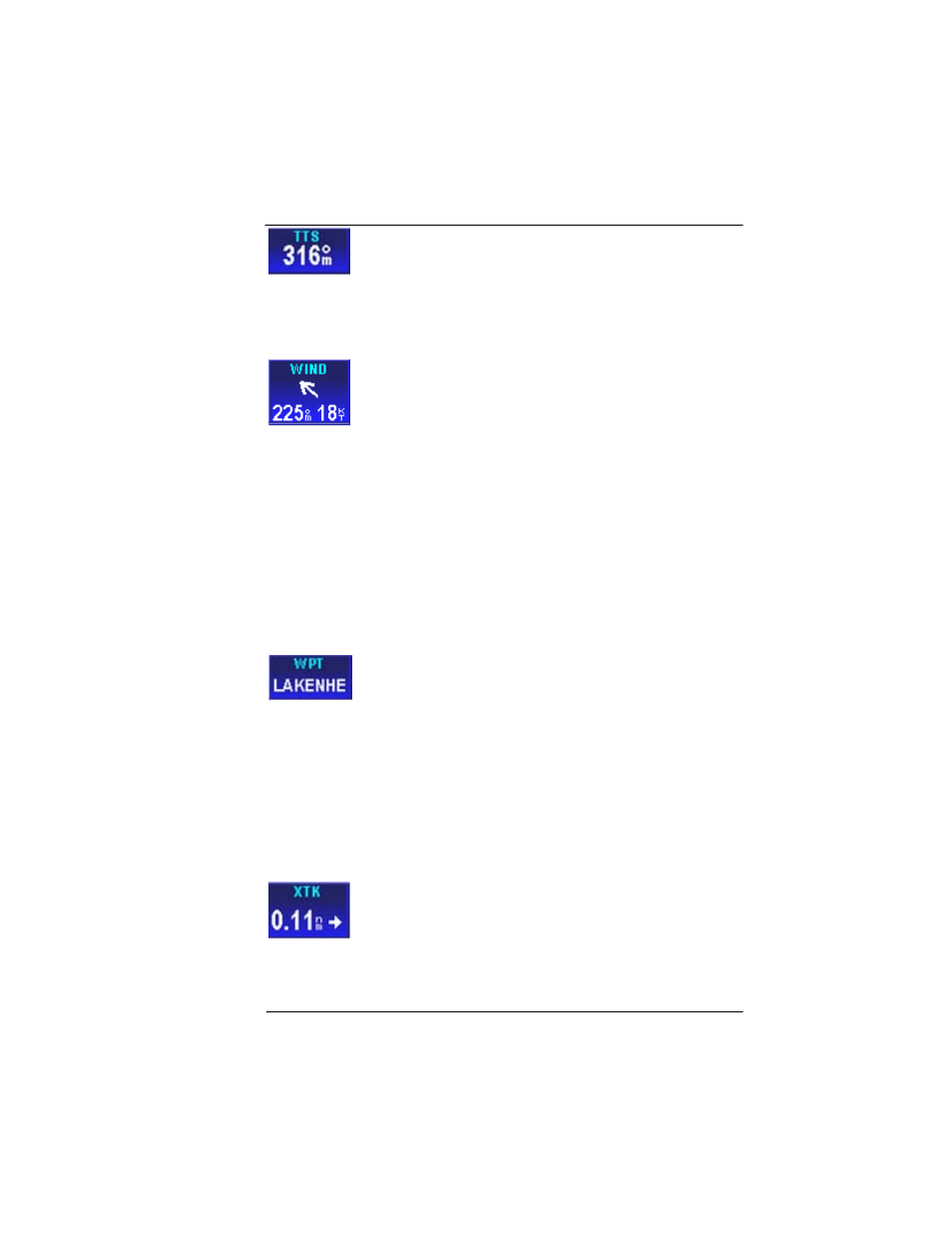

The track to steer data window displays the calculated
optimum track over ground angle to be flown to achieve the desired
track to the destination waypoint as an integer value relative to
magnetic north.
Wind Vector Data Field
The wind vector window displays the wind speed and
direction the wind is from in the presently selected speed units.
The arrow represents the direction of the wind relative to true north
(direction the window is from. (As the aircraft direction changes, the
wind direction arrow follows the direction of the aircraft)
If there is a valid Track then the wind direction is displayed as
Magnetic North otherwise the wind direction is displayed as True
North.
If no valid wind vector data is available then “NOT AVAILABLE” is
displayed in the wind vector window.
Waypoint Ident Data Field
The waypoint ident data window displays the ident of
the current destination waypoint.
NOTE: This is the destination waypoint of the current flight plan leg.
If the waypoint ident is unavailable then dashes are displayed.
The waypoint ident is truncated to fit into the size of the data window.
Tap the waypoint ident data field twice to display the MORE INFO
data for this waypoint.
Cross Track Error Data Field
The cross track error data window displays the
magnitude of, and direction to steer, to reduce the perpendicular
distance between the aircraft position and the desired track. An
