Honeywell Bendix/King AV8OR Ace User’s Guide

Aviation Mode Operation

D200904000003

Page 2-70

Rev 3 Mar 2012

Honeywell International Inc. Do not copy without express permission of Honeywell

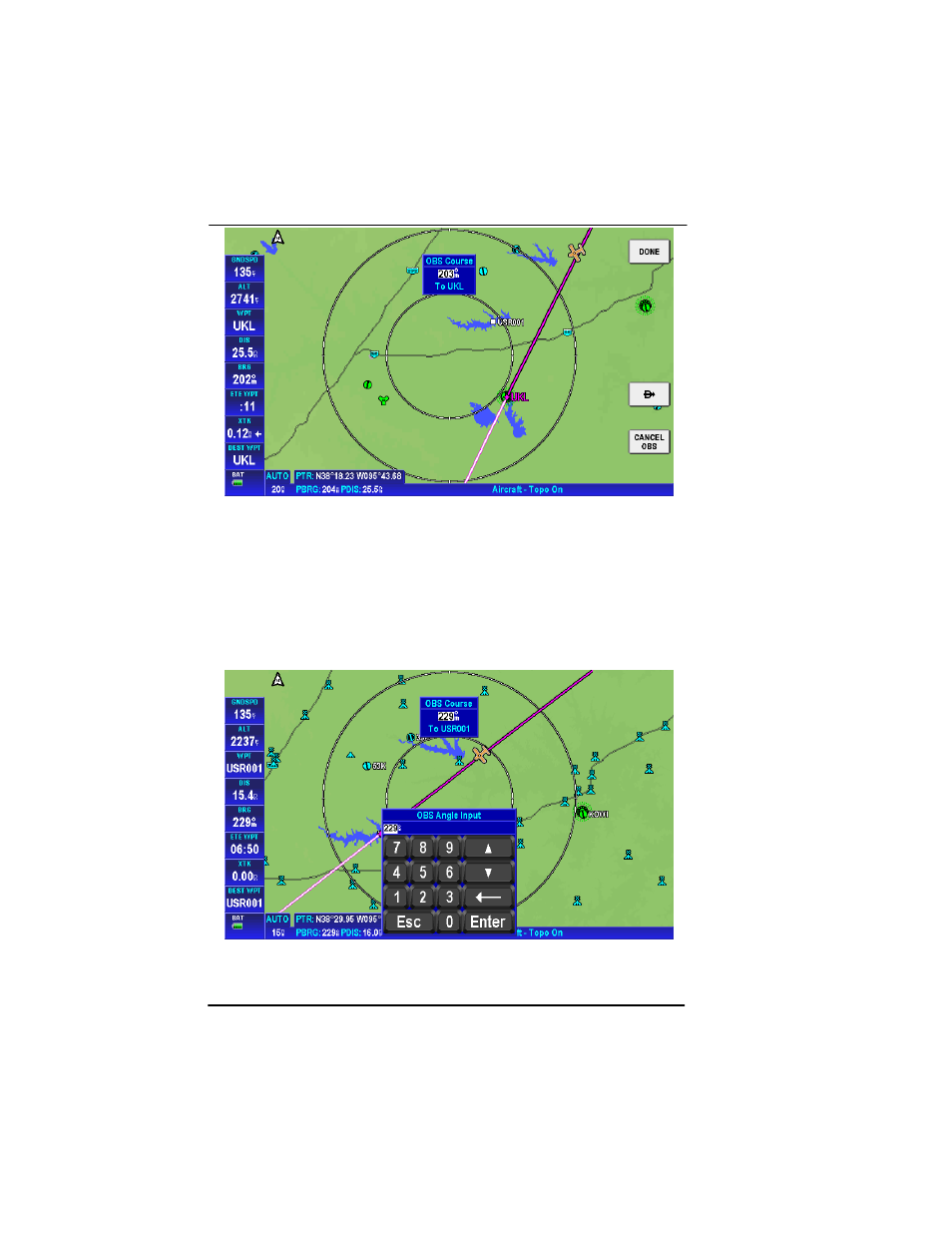

Figure 2-66: OBS Course to NAVAID

To select a user defined point on the map:

If the point on the map the user touches is not a NAVAID point, then,
after the

OBS

soft key is tapped, a temporary WPT is created at that

position. The OBS course ends at that user defined temporary WPT.

To edit the OBS Course Angle, double tap on the OBS Course
Window to open a key pad.

Figure 2-67: OBS Course Correction Keypad
