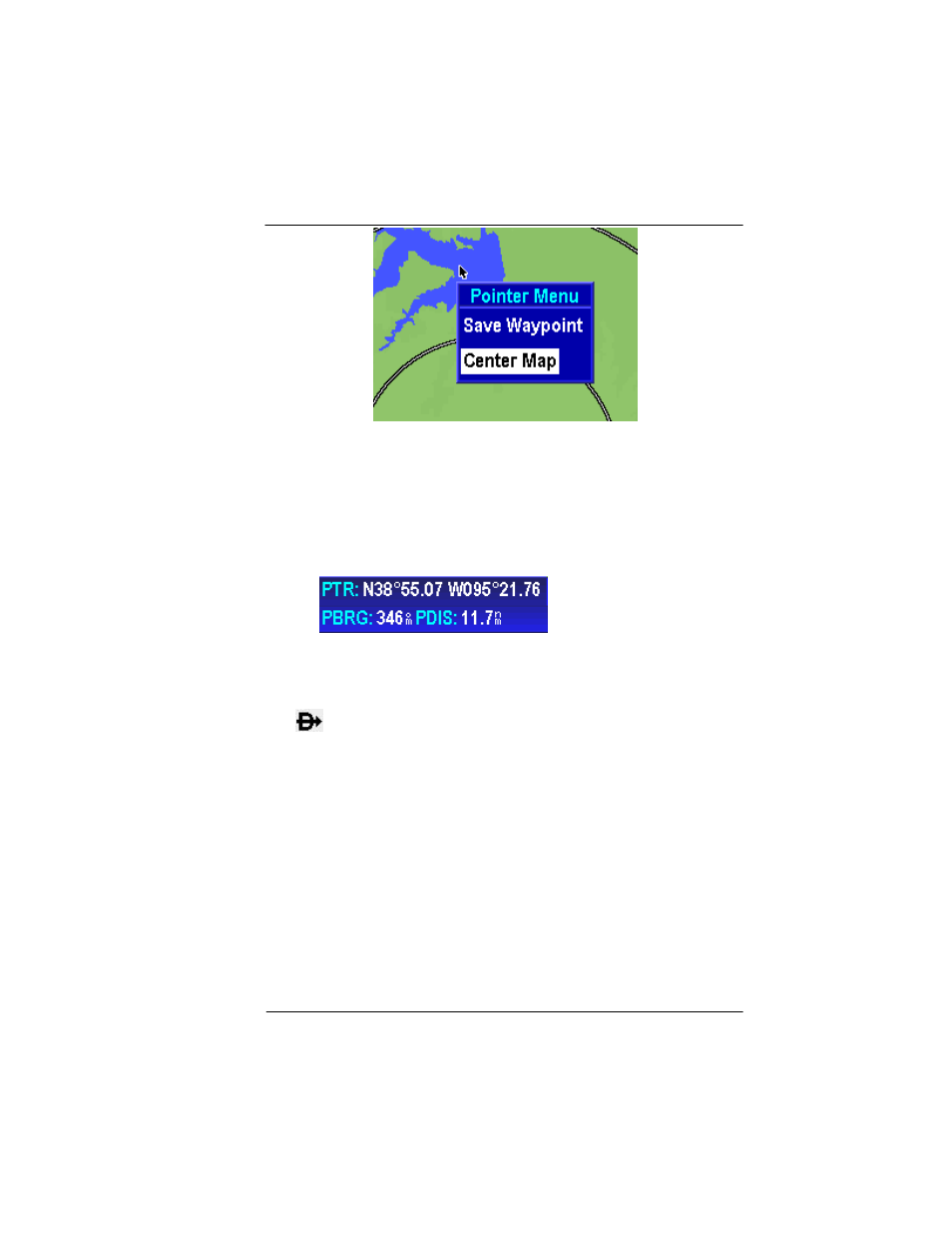

Figure 2-65: Map Centered on Pointer
PTR MENU – DIRECT-TO NAVIGATION
The DIRECT TO shows the course to navigate the aircraft to the
desired WPT directly when the WPT was selected from the pointer
map mode screen. When the user moves the pointer arrow to any
desired map location, the pointer’s position (PTR), bearing (PBRG)
and distance (PDIS) are shown on two lines at the bottom left of the
screen
To select a user defined point on the map:
If the user taps on a point on the map that is not a NAVAID pointer
stored in database, taps on the
PTR MENU soft key and then taps
the hard key, a temporary WPT named USRXXX is created at
the pointer position on the map and a new course from the aircrafts
present position directly to the selected NAVAID point is created.
The new course line is colored magenta.
PTR MENU – OBS NAVIGATION
To select a NAVAID point on the map:
If the user touches a NAVAID point on the map and taps the PTR
MENU soft key, the OBS soft key will be shown. After the OBS soft
key is tapped, the OBS window shows the magnetic course to the
NAVAID.
