Honeywell Bendix/King AV8OR Ace User’s Guide
Aviation Mode Operation D200904000003
Page 2-16 Rev 3 Mar 2012
© Honeywell International Inc. Do not copy without express permission of Honeywell
Smart Profile (10) : Smart Profile mode displays the vertical profile of
the flight path along the route of flight above the title bar. A cross
section of the terrain for the flight is shown on the vertical profile. A
dashed line is shown to represent the altitude of the flight path. Refer
to the Smart Profile section on page 2-33 for more information.
FAST ACCESS
Fast access lets you rapidly change between the configured primary
information pages (Map, Weather or Traffic) or rapidly access the
Map page. There is an area within and above the Title Window that
you can use to change to a different page or jump back to the Map
page as shown in the figure below.

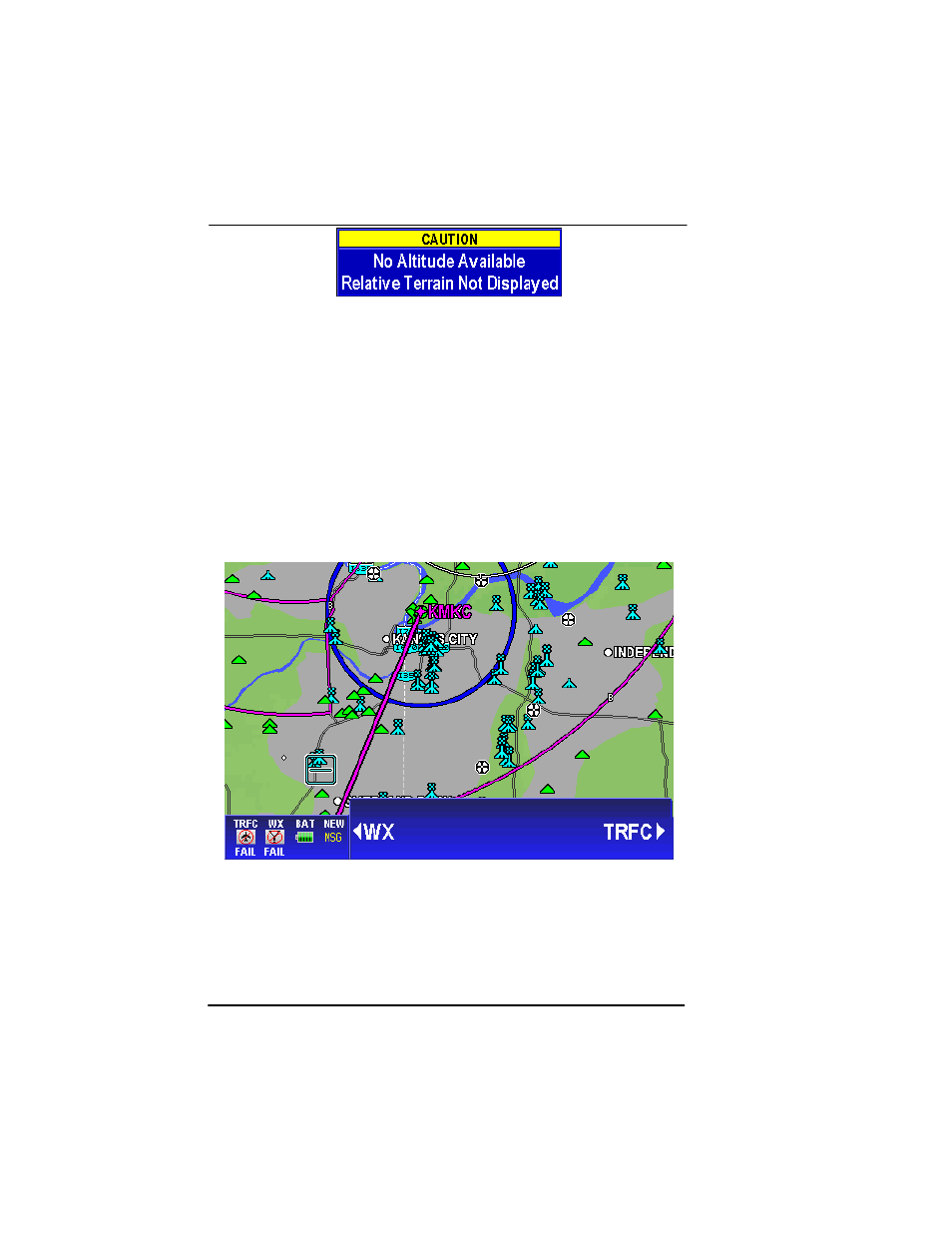

Figure 2-17: Fast Access
If the Map, Weather or Traffic page, is displayed, slide your finger or
stylus left or right in the Fast Access area to cycle forwards or
backwards through the available pages.
