Figure 2-21: Map – Pointer Tag Window / Title Window
The pointer is removed from the screen after 30 seconds of no
further input (touching and dragging of the pointer).
Auto-Hide Soft keys : When the map mode is displayed without
touching any control, the on-screen soft key labels are removed from
the screen after a period of time that is configurable, as shown in the
figure below. The default time is 30 seconds.

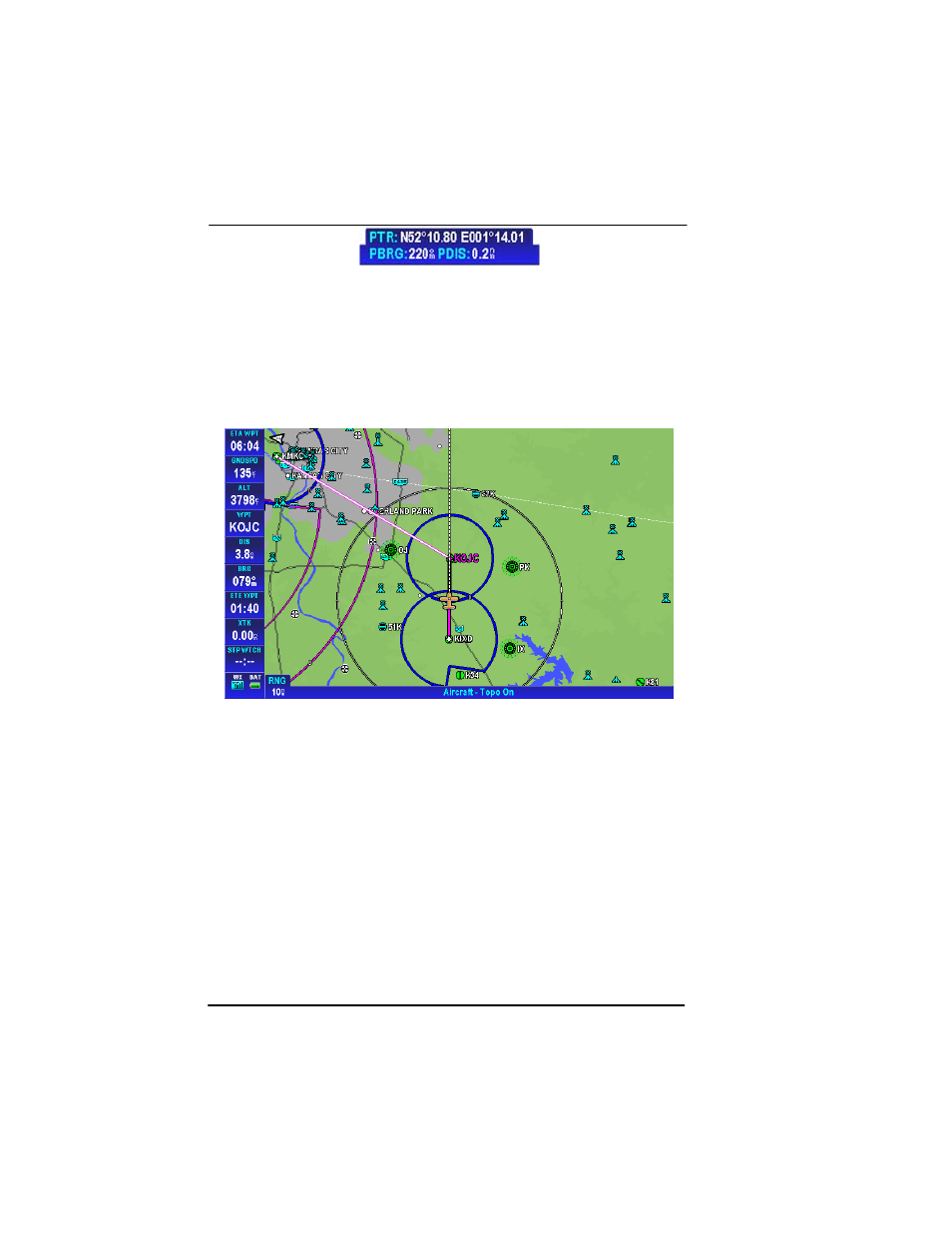

Figure 2-22: Map – Without soft keys
For configuration of the Auto-Hide Soft keys, please refer to the
General System Setup section on page 2-182.
The labels are redisplayed when the user touches the screen. This
feature maximizes the visible area for mapping. This feature can be
disabled by setting the Auto-Hide Keys on the Map Mode Page to
OFF in the General System Setup page (refer to the General System
Setup section on page 2-182.
DATA FIELDS
Up to nine data windows can be configured and shown on the left
side of the map page. Data fields are selected in the System Setup
Menu, refer to the Data Field Setup section on page 2-194.
