weight of 100 No Lead Aviation fuel with lbs/gal selected
for the Units field.
•
Number of envelope points – Enter the number of
envelope points that the COG graph has.
Tap the FILE soft key to save the displayed Weight and Balance
data to a file.
ENVELOPE – Use the Envelope page to enter information about the
allowable C.G. envelope for the aircraft. Once you enter the number
of envelope points on the aircraft profile page, the location of each
point on the graph is defined on this page. The data points that
define the allowable C.G. envelope for a particular aircraft are
typically found in either the aircraft flight manual or in the aircraft’s
Type Certificate. Enter this data once for each aircraft profile that you
would like to save in the AV8OR.

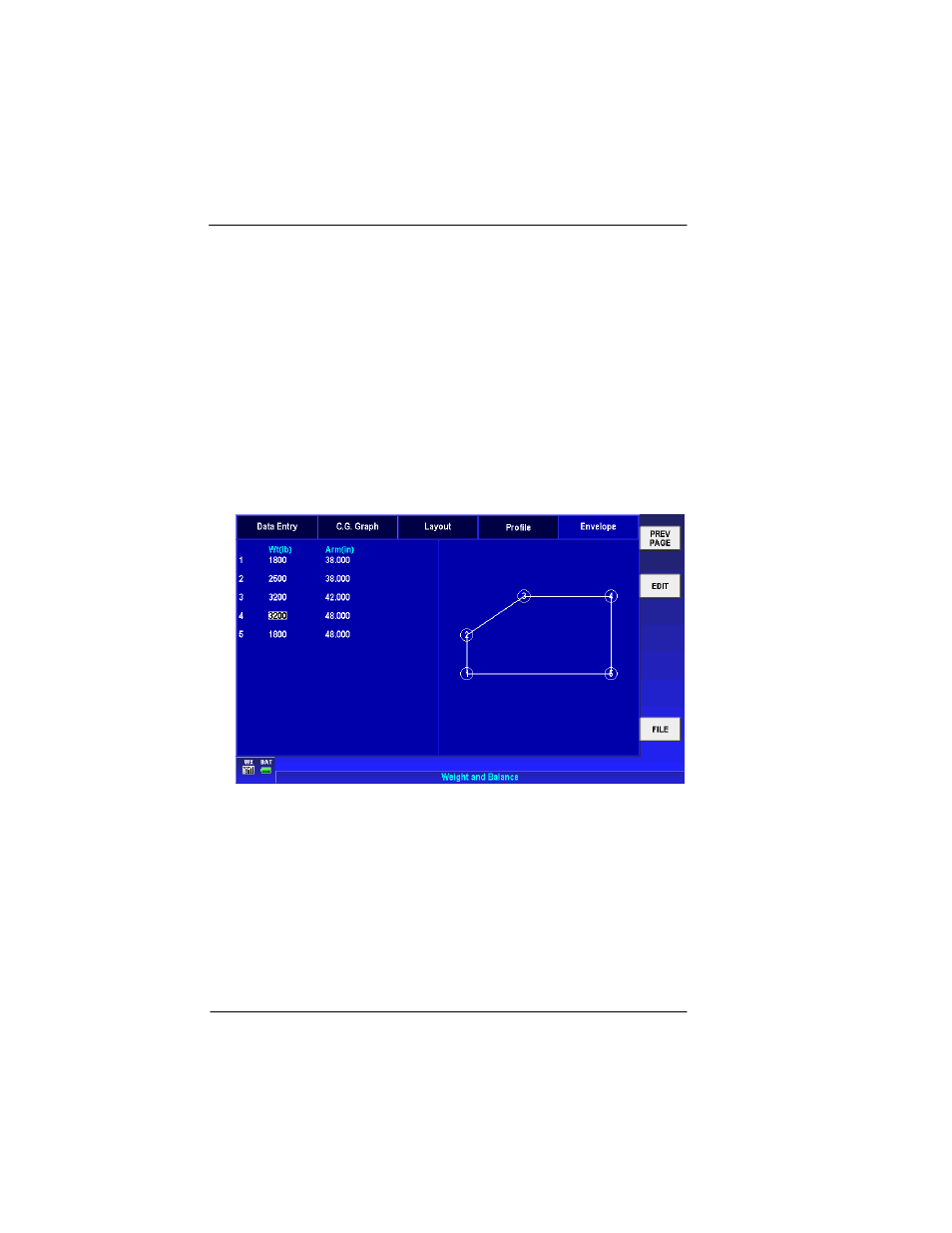

Figure 2-184: W&B Envelope Page
The Envelope tab contains data entry field for the number of
envelope points that was defined in the Profile tab
Tap the PREV PAGE soft key to return to the Messages Page.
Tap the EDIT soft key to edit data on a highlighted cell. Enter the
weight and the arm in each field of the Envelope page. Use the scroll
bar to view any fields that are not visible on the screen.
Tap the FILE soft key to save the displayed Weight and Balance
data to a file.
