Using the Propaq Encore
Propaq Encore Reference Guide
25
Welch Allyn

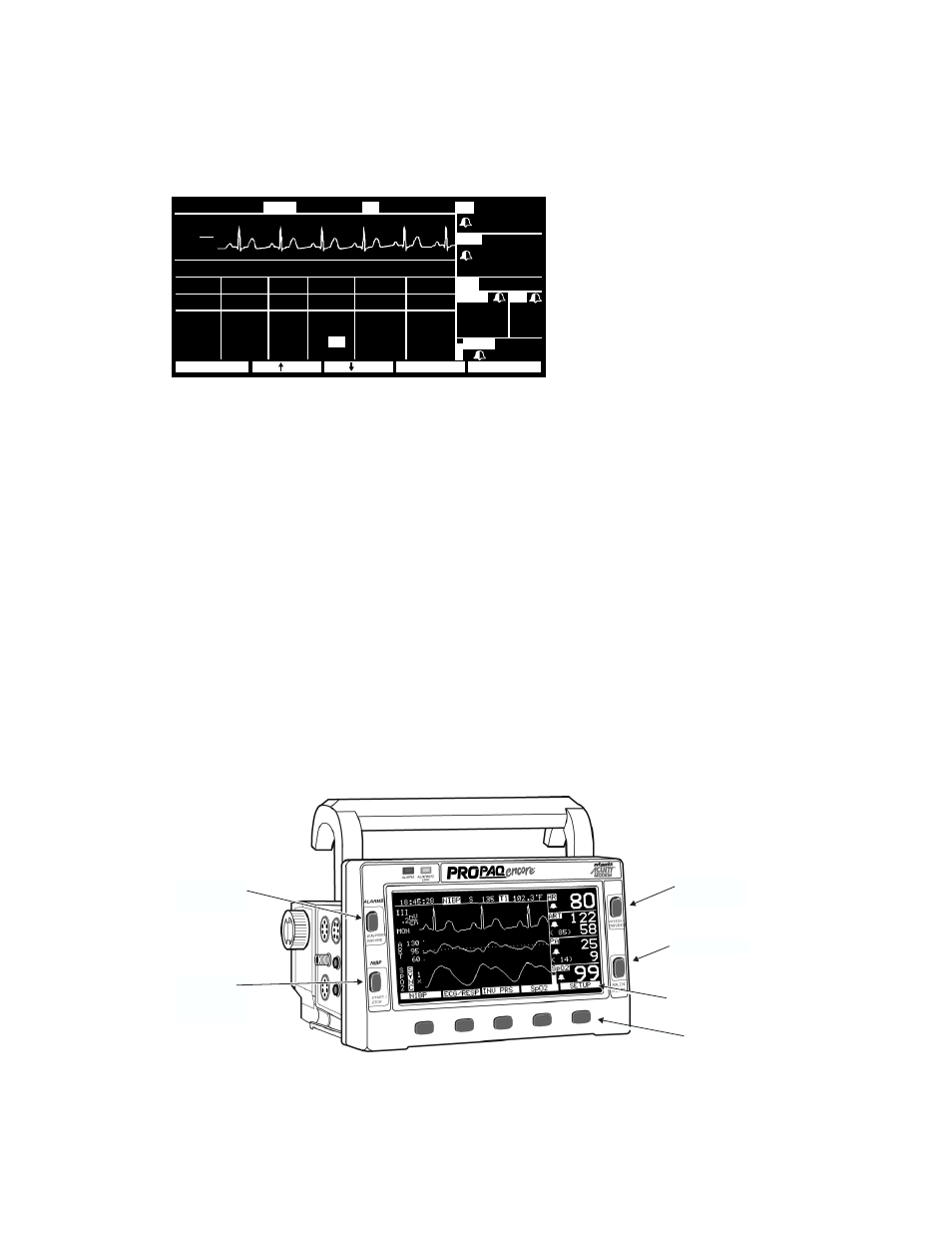

You can select up to three waveforms to be shown on the Propaq. When only one waveform
is selected, a trend window automatically appears below the waveform. While changing
Propaq Encore settings, a status window may appear below the waveform.
Propaq Encore Buttons
The four buttons at the sides of the screen are reserved for the most commonly used
functions.
SUSPEND/RESUME
Suspends or resumes alarm tone.
START/STOP
Starts and stops NIBP measurements. The
STOP
function will
automatically vent the cuff.
FREEZE/UNFREEZE
Freezes or “unfreezes” the waveforms. If only one or two waveforms
are displayed and you press
FREEZE
, the frozen waveform(s) are shown
along with an active waveform so you can continue to monitor the
patient’s condition.
MAIN MENU
Pressing
MAIN MENU
always returns the monitor to the top level menu.
PA
ART
35/ 18
( 85)
122
58
OXYCRG
NXT TRND
HR
T
1
NIBP
12:45:28
III
1
mV
cm
MON
RESP TREND
TIME
INCO2
ETCO2
HR/PR
BPM
HH:MM
10:00
9:58
9:56
9:54
98
SRCH
OFF
100
101
88
93
91
3
3
10
2
30
31
30
30
BR
Br/M
11
11
5
10
SpO2
%
102.3
°
F
S
122
80
mmHg
mmHg
mmHg
MCO
2
BR
SpO
2
35 12
92
Patient waveform and trend
information can be
simultaneously displayed,
while numeric values are
continuously updated.
The five labels
above the
associated
buttons
FREEZE/
UNFREEZE
MAIN MENU
START/
STOP
(NIBP)
SUSPEND/
RESUME
