Capnography (CO2)
Welch Allyn 76 Propaq Encore Reference Guide
Mainstream CO
2
Option
The Mainstream CO
2
option measures the carbon dioxide content of a patient’s inhaled and
exhaled breath. A mainstream sensor is attached to an airway adapter in series with a
ventilator’s patient breathing circuit.
Patients using Mainstream CO
2
must either be intubated or breathing through a well-fitting
face mask connected to a breathing system such as an anesthesia circle system.
Sidestream CO
2
Option
The Sidestream CO
2
option measures the carbon dioxide content of a patient’s inhaled and
exhaled breath. A sidestream sensor is located within the Propaq monitor. The patient’s
expired gas is aspirated from the airway and sent through a sampling line and sidestream
watertrap to the internal sensor.
Patients using Sidestream CO
2
can either be intubated or non-intubated using a CO
2
Sampling cannula or a combination CO
2
Sampling/Oxygen Delivery nasal cannula.
CO
2
Measurements and Display

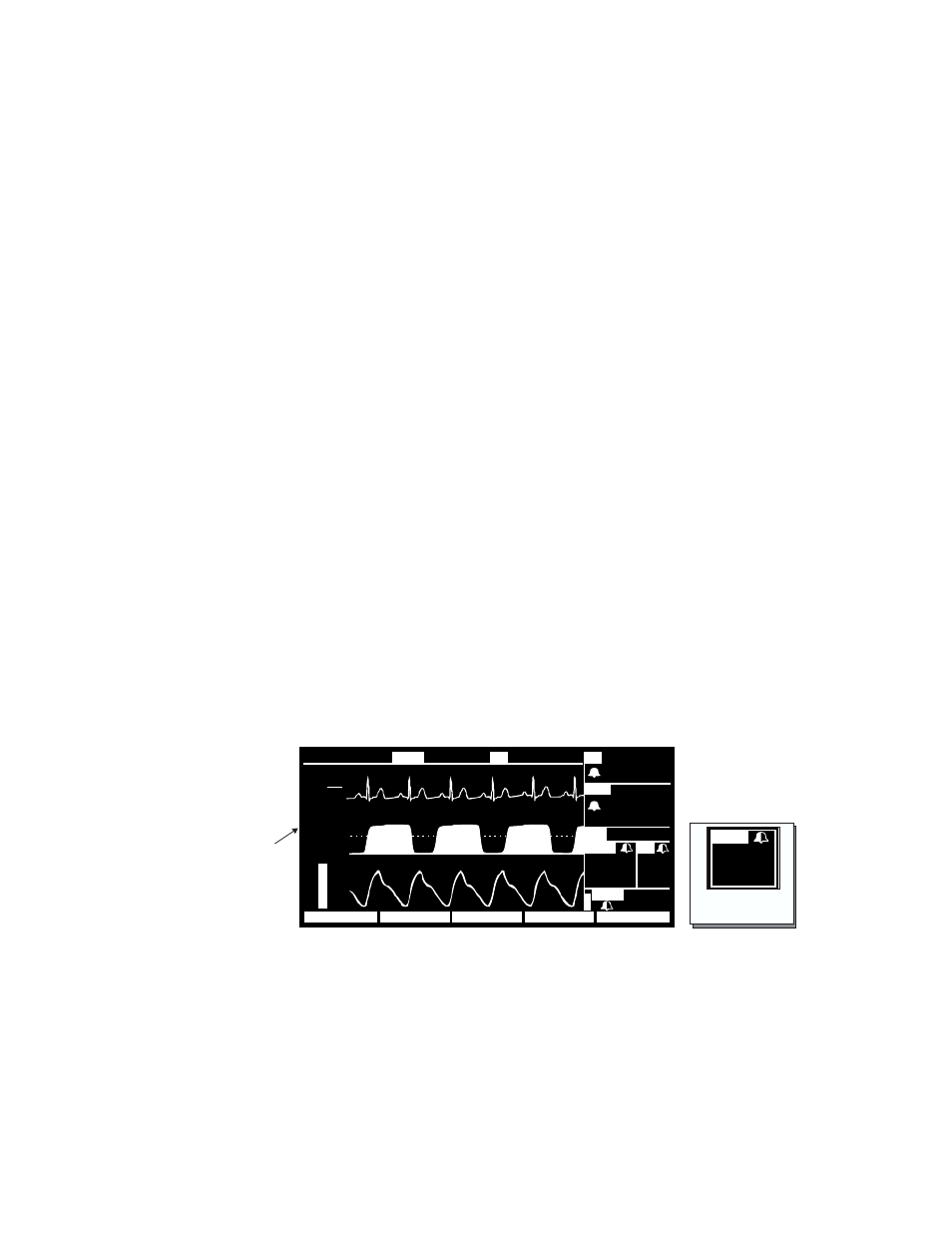

The measured CO
2
levels are normally displayed as a waveform and an ETCO
2
numeric
value. (The CO
2
waveform can be viewed when it is selected for display and the higher-
priority IBP waveforms are not displayed.) If the INCO
2
numeric value is at an alarm level
greater than 7.5 mmHg (or 1 kPa or 1%), it is also displayed.
If Mainstream CO
2
is active, the Propaq displays MCO2. If Sidestream CO
2
is active, the
Propaq displays SCO2. The Propaq displays CO2 if either or both the mainstream sensor and
sidestream watertrap are installed in the Propaq but neither are active.
35
10
mmHg
MCO 2
mmHg
NIBP SETUP INV PRS SpO 2 /CO 2 ECG/RESP
MCO 2 BR
SpO 2
PA
ART
HR T 1 NIBP 19:02:28
III
1
mV
cm
MON
S
p
O
2
S
Y
N
C
2
x
60
30
0
102.3
° F S 122
35/ 18
( 85)
35 12
92
122
58
80
C
O
2
M
Example of
INCO
2
Mainstream
CO
2 is active.
