System Controls (Right Side Panel)
On/Off Switch
This switch turns the monitor on and off. The switch is recessed to prevent accidentally
turning off the monitor, which would result in losing patient data.
Input Fuse
The input fuse, which protects the Propaq Encore against power surges, is a 3 Ampere fuse,
externally replaceable by qualified service personnel. See page 124 for fuse replacement
instructions.
Power Input Connector
This receptacle accepts the Welch Allyn ac power adapter, which must be used for ac mains
operation and battery charging. The Propaq Encore is also designed to operate with other 12-
28 volt, dc-only power sources, such as a vehicle battery system.
Warning Safe interconnection between the Propaq Encore and other devices
must comply with applicable medical systems safety standards such as IEC
601-1-1.

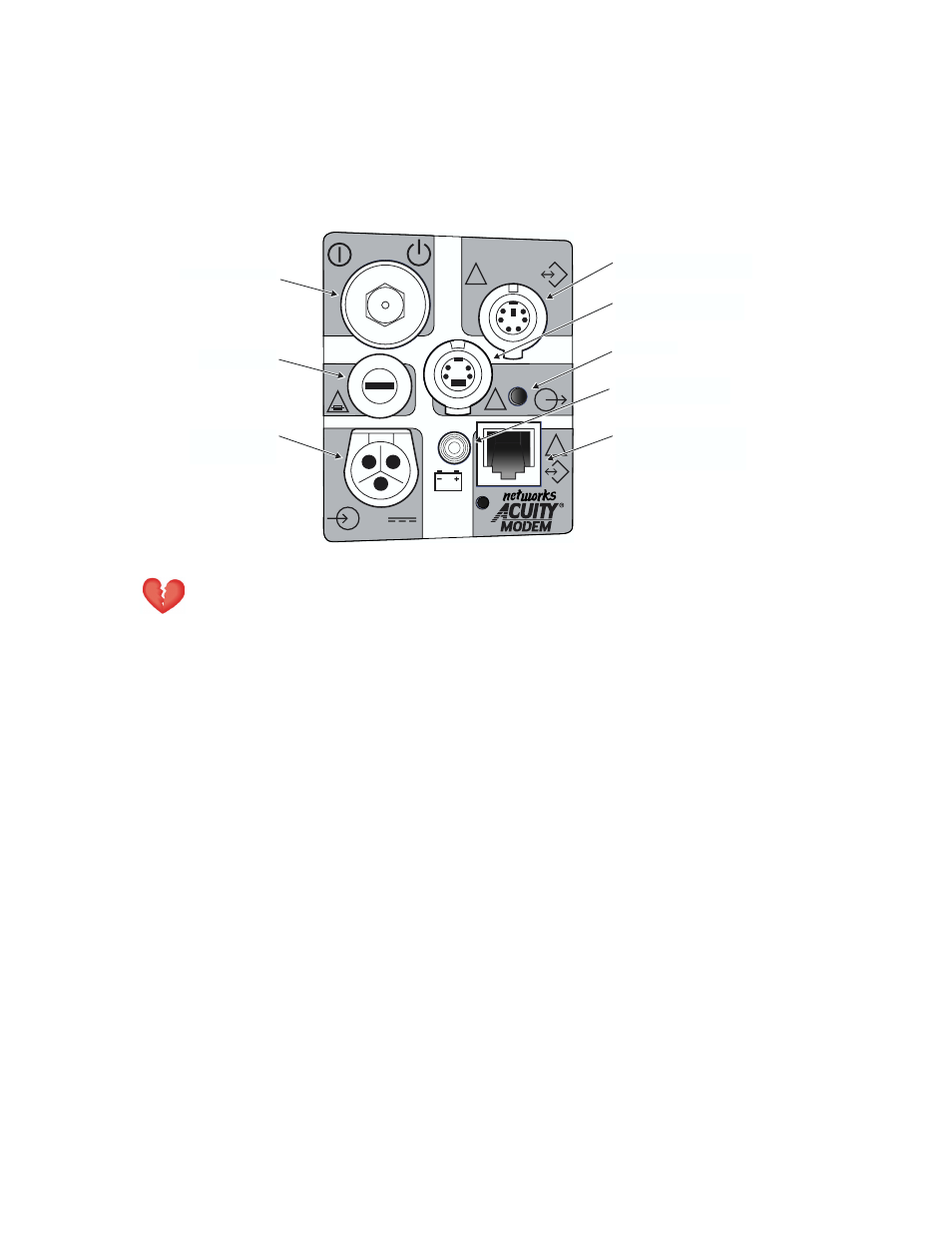

DEFIB SYNCHRO MONITOR
EKG x 1000
!
3A
2AG
!
!
!
12-28V, 3A
Input Fuse
On/Off Switch
Power Input
Connector
Defib Sync Connector
Real-time ECG
Output Connector
Battery Charging
Light
Speaker
Connector for Acuity
or Modem-Propaq
